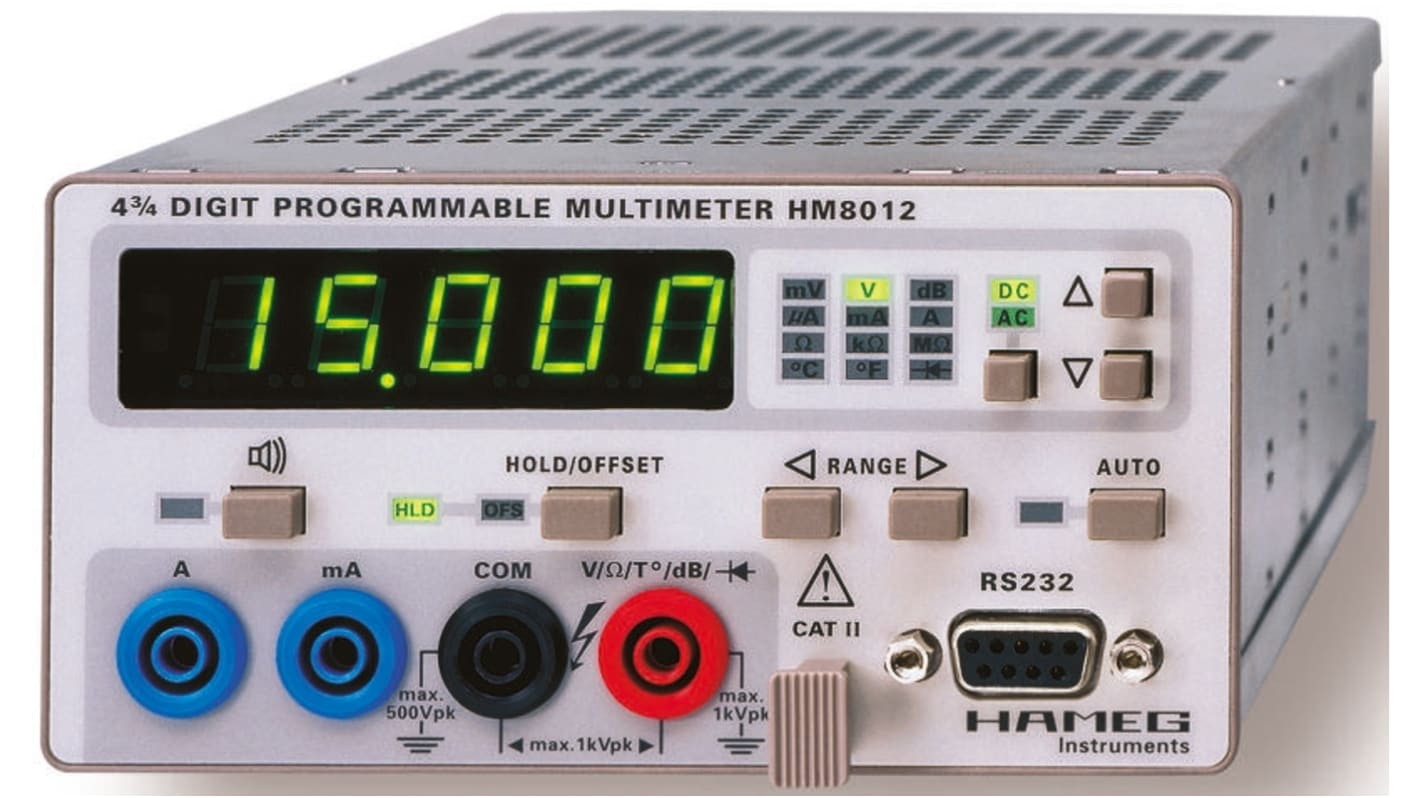

Rohde & Schwarz HM8012 Bench Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max

View all Multimeters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Calibration Options:

presentation
Rohde & Schwarz HM8012 Bench Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated
Calibration Type:
RSCAL
RS Stock No.
450-0807

Each

£577.79

(exc. VAT)

£693.35

(inc. VAT)

RS Stock No.:
449-9937
Mfr. Part No.:
HM8012
Brand:
Rohde & Schwarz
Find similar products by selecting one or more attributes.
Select all

Brand

Rohde & Schwarz

Multimeter Type

Bench

Model Number p

HM8012

Functions Measured

AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Resistance Measurement

50MΩ

Absolute Maximum Temperature Measurement

+500°C

Maximum Frequency

20kHz

AC Current Measurement Resolution

10nA ac

DC Current Measurement Resolution

10nA dc

AC Voltage Measurement Resolution

10µV ac

Resistance Measurement Resolution

10mΩ

DC Voltage Measurement Resolution

10µV dc

Temperature Measurement Resolution

0.1°C

Height

68mm

Maximum Operating Temperature

+40°C

Weight

500g

Best DC Current Accuracy

±0.3% + 0.004%

Best AC Current Accuracy

±1.07 %

Width

135mm

Dimensions

228 x 135 x 68mm

Best DC Voltage Accuracy

±0.052 %

Minimum Operating Temperature

+5°C

Best AC Voltage Accuracy

±1.07 %

Best Temperature Measurement Accuracy

±0.5 °C + 0.0005

Best Resistance Measurement Accuracy

±0.304 %

Length

228mm

RoHS Status: Not Applicable

HM8012 Digital Multimeter Modules


Digital multimeter modules for use with the Hameg System 8000 modular instrumentation system.

HM8012 features:


50000 display countAuto ranging with 42 measurement rangesBetween 3 to 6 measurements per secondOffset of any value as a reference pointTrue RMS (a.c. or a.c. + d.c.)0.5% Basic accuracyMax. resolution 10μV, 0.01dBm, 10nA,10mW and 0.1ºC/FInput resistance >1GΩ (0.5V and 5V)

Data transfer and control via RS-232

Note

A HM8001-2, available separately, is required to use these modules.For full details of the System 8000 modular instruments please see the Signal Generation & Analysis section.

Supplied with

instruction manual and silicone test lead set (Hz 15), PC software on CD-ROM.
