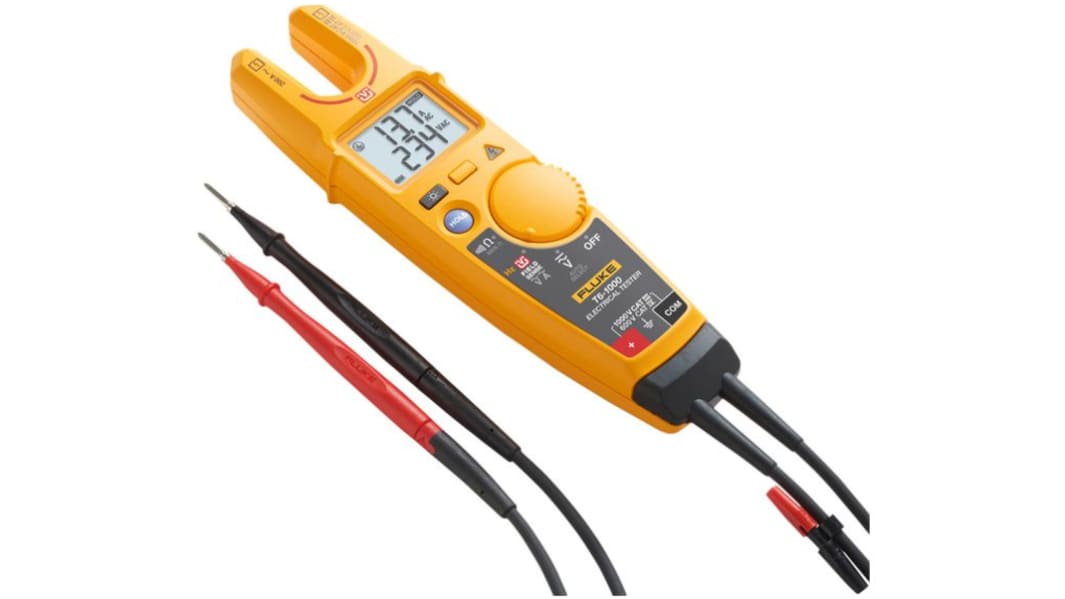

Fluke T6-1000 Electrical Tester
- RS Stock No.:
- 285-8111
- Distrelec Article No.:
- 300-98-747
- Mfr. Part No.:
- FLUKE T6-1000/EU
- Brand:
- Fluke
Subtotal (1 unit)*
£434.05
(exc. VAT)
£520.86
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £434.05 |
*price indicative
- RS Stock No.:
- 285-8111
- Distrelec Article No.:
- 300-98-747
- Mfr. Part No.:
- FLUKE T6-1000/EU
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Electrical Tester | |
| Loop Impedance Test Type | 2 Wire | |
| Model Number | T6-1000 | |
| Maximum Voltage Measurement | 1kV | |
| Continuity Test Current | 200A | |
| Battery Life | 360h | |
| Weight | 0.35kg | |
| Standards/Approvals | IEC/EN 61010-1, IEC/EN 61010-2-033:Pollution Degree 2 | |
| Length | 259.3mm | |
| Height | 43.8mm | |
| Width | 61.1mm | |
| IP Rating | IP52 | |
| Test Standards | No | |
| Maximum Continuity Resistance | 2kΩ | |
| Safety Category Level | CAT IV, CAT III | |
| Display Type | LCD | |
| Maximum Operating Temperature | 50°C | |
| Power Source | Battery | |
| Safety Category Voltage | 1000V | |
| Battery Type | AA | |
| Minimum Continuity Resistance | 1kΩ | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Electrical Tester | ||
Loop Impedance Test Type 2 Wire | ||
Model Number T6-1000 | ||
Maximum Voltage Measurement 1kV | ||
Continuity Test Current 200A | ||
Battery Life 360h | ||
Weight 0.35kg | ||
Standards/Approvals IEC/EN 61010-1, IEC/EN 61010-2-033:Pollution Degree 2 | ||
Length 259.3mm | ||
Height 43.8mm | ||
Width 61.1mm | ||
IP Rating IP52 | ||
Test Standards No | ||
Maximum Continuity Resistance 2kΩ | ||
Safety Category Level CAT IV, CAT III | ||
Display Type LCD | ||
Maximum Operating Temperature 50°C | ||
Power Source Battery | ||
Safety Category Voltage 1000V | ||
Battery Type AA | ||
Minimum Continuity Resistance 1kΩ | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
The Electrical Tester with FieldSense technology is a game-changer in the world of electrical testing. This innovative tester allows you to measure voltage up to 1000 V ac without the need for test leads, making it safer, faster, and easier to use. With features like FieldSense technology for ac voltage, current, and frequency measurement, simultaneous voltage and current display, and resistance measurement capabilities, the Fluke T6-1000 is a must-have tool for efficient troubleshooting.
FieldSense technology allows for ac voltage, current, and frequency measurement without the need for electrical contact
Simultaneous voltage and current display for efficient troubleshooting
Voltage measurement range from 1 to 1000 V ac or dc
Current measurement range of 0.1 to 200 A ac
Resistance measurement range of 1 Ω to 100 kΩ
Fork opening of 17.8 mm for easy wire access
Easy to read display with backlight for enhanced visibility
HOLD button to freeze readings for easy viewing
Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
Standard two-year warranty, extendable to four years with product registration
