Megger MFT1721 Multifunction Tester, 100V , Earth Resistance Measurement With Wireless UKAS Calibration

RS Stock No.:: 117-6034
Mfr. Part No.:: 1008-123
Brand:: Megger

Megger MFT1721 Multifunction Tester, 100V , Earth Resistance Measurement With Wireless UKAS Calibration

Subtotal (1 unit)*

£1,793.00

(exc. VAT)

£2,151.60

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

19 unit(s) ready to ship
Plus 10 unit(s) shipping from 01 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,793.00

*price indicative

RS Stock No.:: 117-6034
Mfr. Part No.:: 1008-123
Brand:: Megger

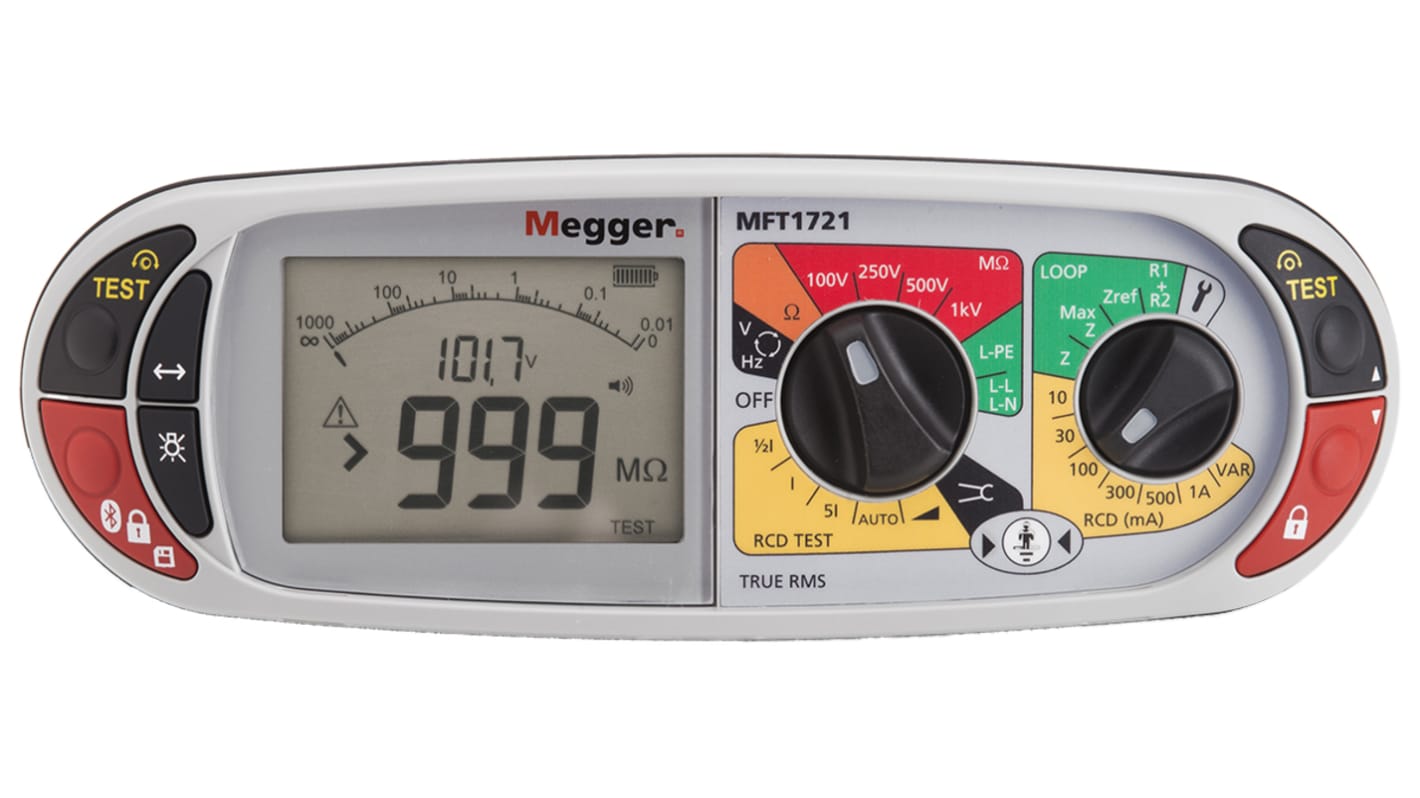

Megger MFT1721 Multifunction Tester

The MFT1721 is part of the MFT1701 series from Megger whcih tests low voltage electrical installations to BS7671. Providing all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. The unique design allows it to be operated while mounted on the floor, a ladder-shelf, platform, and held or hung around the neck.

The MFT1721 includes full input protection and safety warnings when a hazardous voltage is present. If live voltages exist on a circuit during insulation or continuity testing, the voltage is displayed on the screen. If this voltage exceeds a safe level, further testing is inhibited, and a warning beep sounds.

Features

Simple colour-coded test selection
Large clear backlit display for ease of use
Dual TEST and LOCK buttons, easy to use left or right handed
Two and three wire non-trip loop testing for RCD protected circuits
Type-B RCD and 3 phase RCD testing for industrial applications with no Earth
3-terminal earth test and stake less testing for electrode resistance measurement
EN61010 CAT IV safety rating
Fully compliant with IEC 60364, VDE 0100 & BS7671
Durable IP54 case
Lightweight, compact design

Onsite Features

Bluetooth downloading
Onsite Software
Memory option
Rechargeable cells
200 mA test with option of 15 mA
3 pole earth test
Complete certificates on-site as you go or stores the data until you get home
Reduce errors
Increase productivity
Saves you hours of form filling

Software Package - Basic FormFiller Certification

Operators can access and download for free the software package from Megger via the web site. Offering users a quick and simple solution to create and store standard IET certification forms and PAT certificates. Suitable for use on Windows® platforms running JAVA 8. FormFiller provides a simple, intuitive form completion tool, allowing professional printed certificates and documentation to be produced with negligible software skills. All certificates and forms can be stored within the application or exported in PDF form.

Features

• Simple operational interface
• Storage of completed forms with retrieval by certificate type or client
• PDF export facility for safe and simple distribution
• Multi-page Schedules for testing larger installations
• Drop down fields to speed up certificate completion

FAQ
What other options are available in this series?

MFT1711 (RS 117-6026) - Tester, three wire lead set, mains test lead, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case.

MFT1731 (RS 117-6028)- Tester, three wire lead set, mains test lead, switched probe, internally rechargeable batteries, and charger, 12-month calibration certificate, warranty upgradeable to 3 years & soft pouch.

Note

Type-B RCD and 3 phase RCD testing for industrial applications with no Earth

Supplied with

MFT1721 - Tester, three wire lead set, mains test lead, switched probe, 12-month calibration certificate, warranty upgradeable to 3 years & moulded case

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Calibrated	UKAS
	Loop Impedance Test Type	2 Wire, 3 Wire
	Automatic RCD Test	Yes
	Model Number p	MFT1721
	RCD Ramp Test	Yes
	Non-Tripping	Yes
	Insulation Test Voltage	100 V, 250 V, 500 V, 1000V
	Maximum Voltage Measurement	600V
	Test Type	Continuity
	Earth Resistance Measurement	Yes
	Downloadable Data	Yes
	Interface Type	Wireless
	Continuity Test Current	200mA
	RCD Test Type	A, AC, B, S
	Test Standards	EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
	IP Rating	IP54
	Weight	1 (with Battery; Excluding Case)kg
	Continuity Range	0.01 → 99.9 kΩ
	Plug Type	BS 1363, LT 300-EN-BS
	Height	150mm
	Minimum Continuity Resistance	0.01Ω
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+55°C
	Length	85mm
	Power Source	Battery
	Dimensions	85 x 235 x 150mm
	Width	235mm
	Voltage Measurement Range	10 → 600V
	Operating Temperature Range	-10 → +55 °C
	Safety Category Voltage	300 V, 600 V
	Battery Type	AA Alkaline
	Display Type	LCD
	Safety Category	CAT III 600 V, CAT IV 300 V
	Safety Category Level	CAT III, CAT IV
	Maximum Continuity Resistance	99.9kΩ

	Select all
	Brand Megger
	Calibrated UKAS
	Loop Impedance Test Type 2 Wire, 3 Wire
	Automatic RCD Test Yes
	Model Number p MFT1721
	RCD Ramp Test Yes
	Non-Tripping Yes
	Insulation Test Voltage 100 V, 250 V, 500 V, 1000V
	Maximum Voltage Measurement 600V
	Test Type Continuity
	Earth Resistance Measurement Yes
	Downloadable Data Yes
	Interface Type Wireless
	Continuity Test Current 200mA
	RCD Test Type A, AC, B, S
	Test Standards EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
	IP Rating IP54
	Weight 1 (with Battery; Excluding Case)kg
	Continuity Range 0.01 → 99.9 kΩ
	Plug Type BS 1363, LT 300-EN-BS
	Height 150mm
	Minimum Continuity Resistance 0.01Ω
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +55°C
	Length 85mm
	Power Source Battery
	Dimensions 85 x 235 x 150mm
	Width 235mm
	Voltage Measurement Range 10 → 600V
	Operating Temperature Range -10 → +55 °C
	Safety Category Voltage 300 V, 600 V
	Battery Type AA Alkaline
	Display Type LCD
	Safety Category CAT III 600 V, CAT IV 300 V
	Safety Category Level CAT III, CAT IV
	Maximum Continuity Resistance 99.9kΩ
