MPN

Xsens by Movella ASCII, CAN, Xbus

RS Stock No.:: 261-4483
Mfr. Part No.:: MTi-670
Brand:: Xsens by Movella

Subtotal (1 unit)*

£921.00

(exc. VAT)

£1,105.20

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£921.00

*price indicative

RS Stock No.:: 261-4483
Mfr. Part No.:: MTi-670
Brand:: Xsens by Movella

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Xsens by Movella
	Product Type	Sensor
	Mount Type	Chassis Mount
	Height	13mm
	Length	28mm
	Communication Port Type	ASCII, CAN, Xbus
	Weight	8.9g
	Maximum Supply Voltage	24V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	IP Rating	IP51
	Series	MTi 600
	Standards/Approvals	RoHS, FCC, CE

	Select all
	Brand Xsens by Movella
	Product Type Sensor
	Mount Type Chassis Mount
	Height 13mm
	Length 28mm
	Communication Port Type ASCII, CAN, Xbus
	Weight 8.9g
	Maximum Supply Voltage 24V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	IP Rating IP51
	Series MTi 600
	Standards/Approvals RoHS, FCC, CE

COO (Country of Origin):: NL

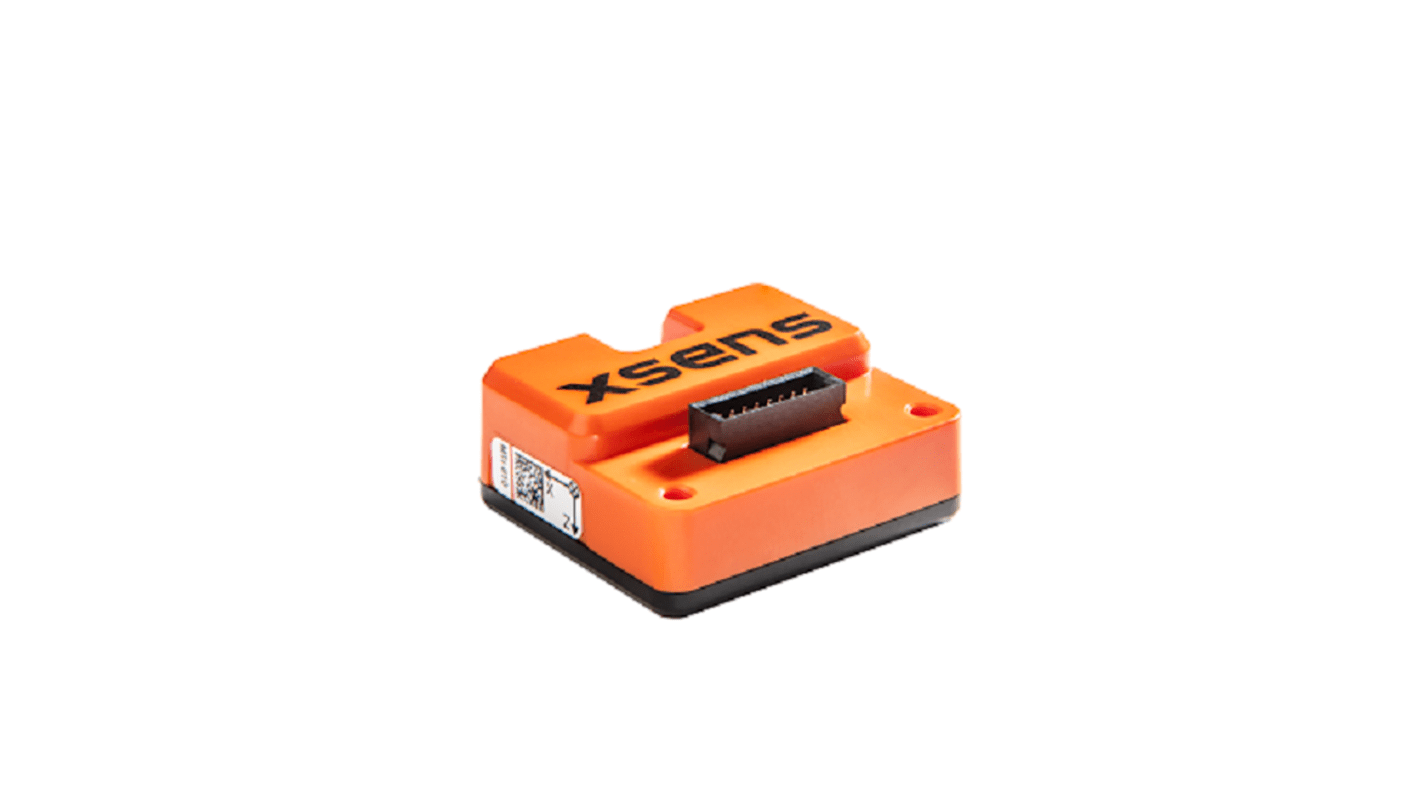

The XSENS is a GNSS/INS with a small form-factor design for deep integration into your application. Building on the proven MTi 600-series technology it enables a robust and easy to use sub-meter level positioning and orientation tracking.

Connects to external GNSS receiver

IP51-rated GNSS

Pitch & sub-meter level

Position accuracy

Xsens by Movella ASCII, CAN, Xbus
