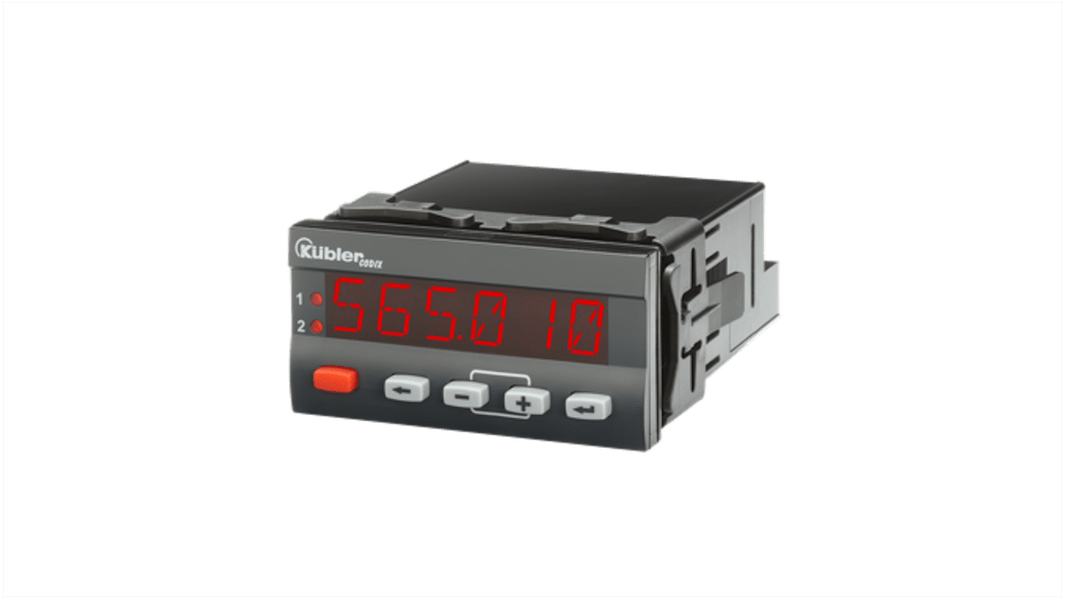

Kubler CODIX 565 LED Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm

View this category

Subtotal (1 unit)*

£227.90

(exc. VAT)

£273.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£227.90

*price indicative

RS Stock No.:
791-5993
Distrelec Article No.:
110-49-219
Mfr. Part No.:
6.565.010.000
Brand:
Kubler
Find similar products by selecting one or more attributes.
Select all

Brand

Kubler

Properties Measured

Current, Voltage

Display Type

LED

Cutout Height

45mm

Cutout Width

92mm

Depth

90.5mm

Minimum Temperature

-20°C

Maximum Temperature

+65°C

Series

CODIX 565

COO (Country of Origin):
DE

Kubler Process Controller


The Kubler process controller is enabled with a totaliser function that displays voltage and current analogue input signals in high resolution. Also, it can monitor and control 2 limit values. It has an easy-to-read, 6-digit 14-segment, LED display

easy-to-understand running help texts

and a practical quick-start guide that efficiently replaces time-consuming, full instruction manuals.

Features and Benefits


Simple programming via 4 keys on the front
Sampling rate of 10 readings per second
Power supply voltage rating is 100VAC to 240VAC
1 front key, as well as 2 additional inputs can be programmed for specific applications
Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs
Minimum/maximum memory function, individually resettable
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current
Display range is -199999 to 999999, with leading zero blanking
Inputs and outputs are galvanically isolated
Digital filter (first-order) for smoothing display fluctuation with unstable input signals
Tare function
Cut-out height of 45mm and width of 92mm and depth of 90.5mm
Operating temperature ranges between -20°C and 65°C

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified
