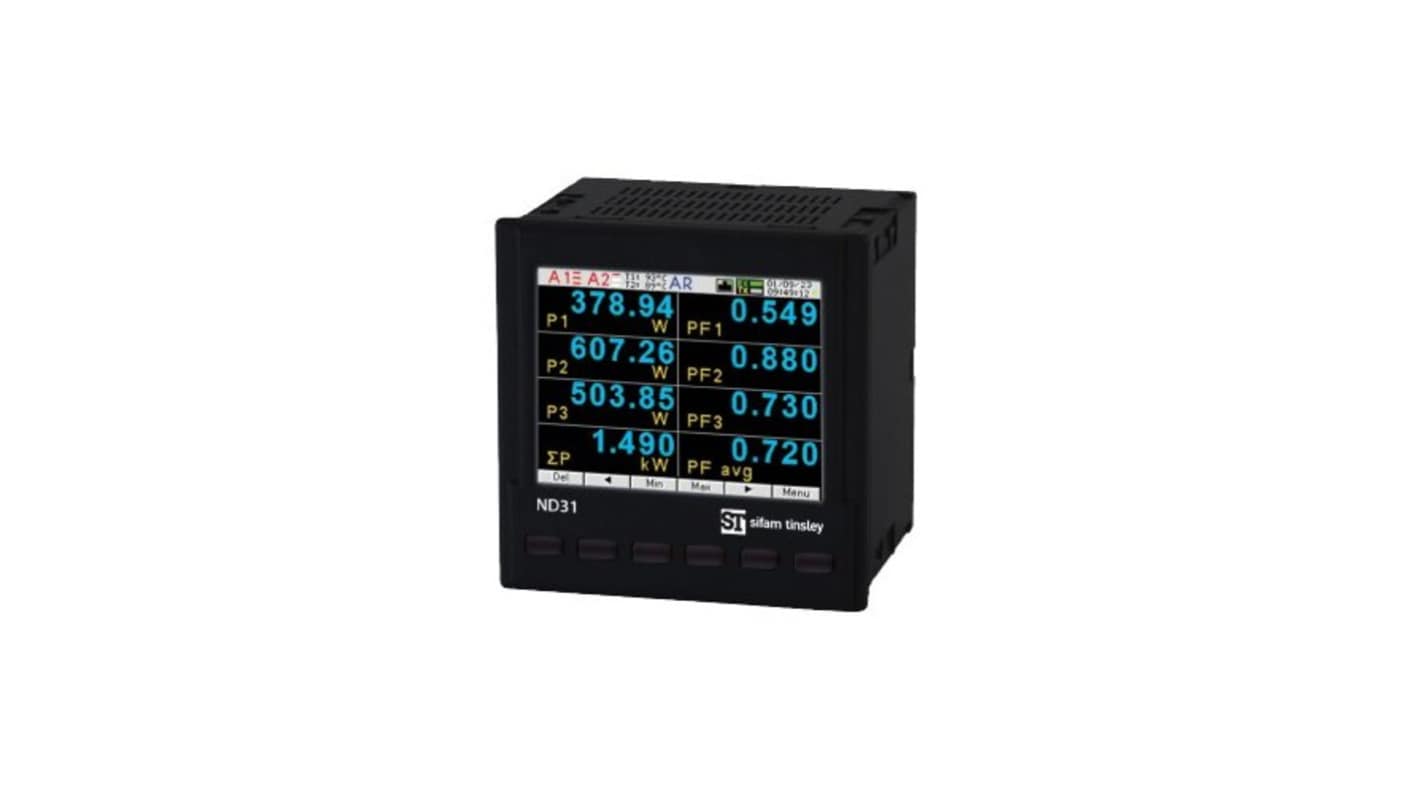

Sifam Tinsley ND31 TFT LCD Multi-Function Panel Meters for Current, Voltage, 92.5 mm x 92.5 mm

View this category

Subtotal (1 unit)*

£610.00

(exc. VAT)

£732.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£610.00

*price indicative

RS Stock No.:
635-386
Mfr. Part No.:
ND31 1222M0
Brand:
Sifam Tinsley
Find similar products by selecting one or more attributes.
Select all

Brand

Sifam Tinsley

Properties Measured

Current, Voltage

Product Type

Multi-Function Panel Meters

Display Type

TFT LCD

Cutout Height

92.5mm

Depth

77mm

Cutout Width

92.5mm

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

55°C

Standards/Approvals

IEC61000-4-7, EN 61000-6-2, EN 61010-1, EN 61557-12, EN 61000-6-4, EN 62053-22, EN IEC 61326-1

Series

ND31

COO (Country of Origin):
PL
The Sifam Tinsley Power Network Meter measures 54 power network parameters, including current and voltage harmonics up to the 63rd, across 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems. It offers programmable communication protocol options such as MQTT, BACnet/IP, and MODBUS TCP/IP. With a high accuracy class of 0.25 for active energy, it provides reliable readings. The device features a graphical color LCD TFT display of 3.5 inches, with a resolution of 320 x 240 pixels, and is fully configurable by the user, allowing up to 10 screens with 8 parameters each. It also includes 2 screens dedicated to harmonics presentation and 1 page for analog meter visualization, along with memory for storing minimum and maximum values.

2 configurable alarm outputs

Supervisory relay mode for alarm outputs

Digital output RS-485 - MODBUS protocol

Programming of parameters using free eCon software

Overall dimensions 96 x 96 x 77 mm
