RS PRO EMM-04 LCD Digital Panel Multifunction Meter for Voltage, Power Factor, Current, Frequency, 92 mm x 92 mm
- RS Stock No.:
- 558-891
- Brand:
- RS PRO
Subtotal (1 unit)*
£64.76
(exc. VAT)
£77.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 36 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.76 |
*price indicative
- RS Stock No.:
- 558-891
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Digital Panel Multifunction Meter | |
| Properties Measured | Voltage, Power Factor, Current, Frequency | |
| Display Type | LCD | |
| Cutout Height | 92mm | |
| Depth | 44.5mm | |
| Cutout Width | 92mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | 60068-2-2, 60068-2-30, 61000-6-2 EMC, 61000-6-4, EN 60068-2-1, EN 60529, EN 61010-1, EN 61326 | |
| Meter Type | Multimeter | |
| Maximum Measurement | 10 A | |
| Series | EMM-04 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Digital Panel Multifunction Meter | ||
Properties Measured Voltage, Power Factor, Current, Frequency | ||
Display Type LCD | ||
Cutout Height 92mm | ||
Depth 44.5mm | ||
Cutout Width 92mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals 60068-2-2, 60068-2-30, 61000-6-2 EMC, 61000-6-4, EN 60068-2-1, EN 60529, EN 61010-1, EN 61326 | ||
Meter Type Multimeter | ||
Maximum Measurement 10 A | ||
Series EMM-04 | ||
- COO (Country of Origin):
- TR

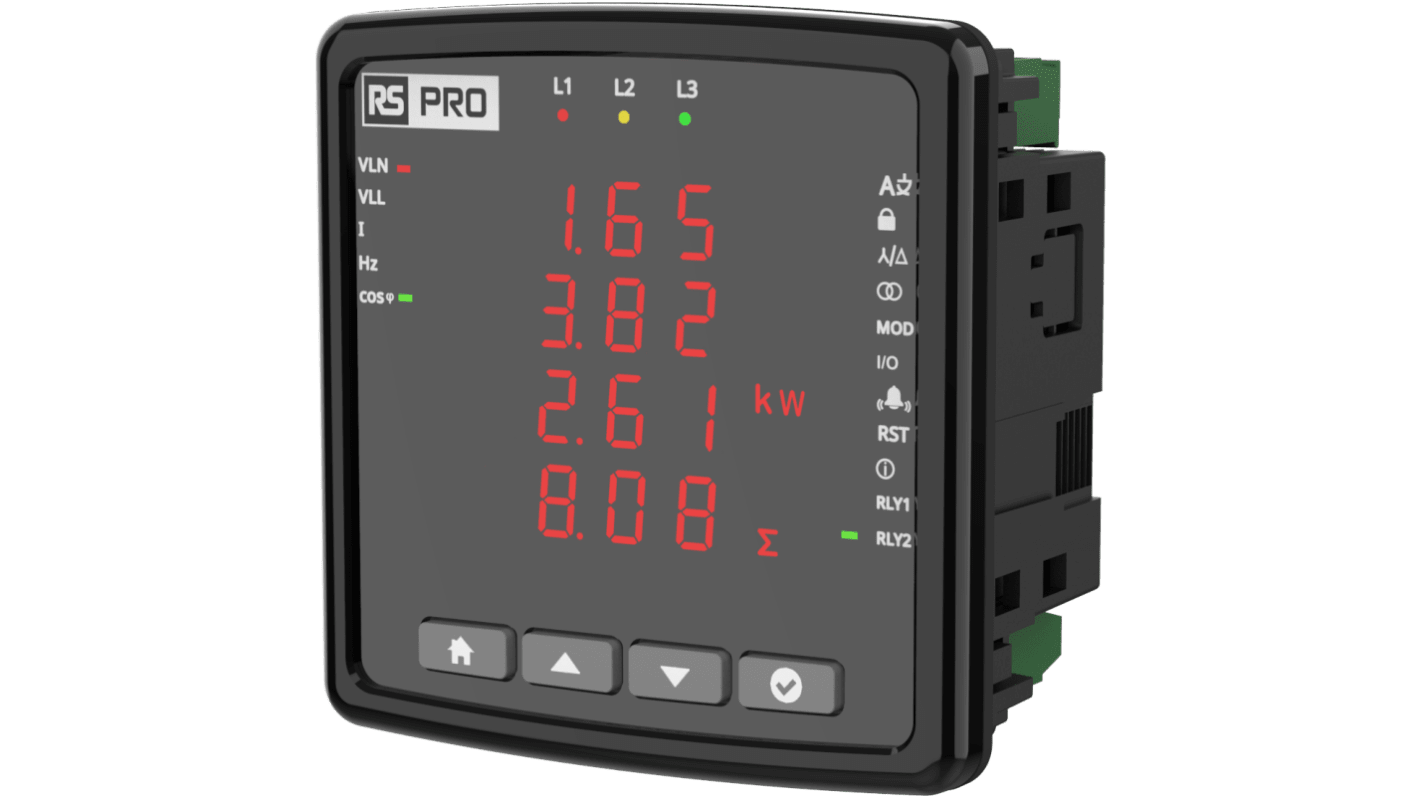

RS PRO Multi Function Panel Meter, 96 x 96 x 45 mm, 100 to 270 VAC/DC
The RS PRO Multi Function Panel Meter is a compact and efficient device designed for detailed measurement and analysis of electrical parameters. It provides real-time monitoring through a clear LED display, making it ideal for environments where precision and reliability are crucial. Its stylish design and robust functionality make it a valuable addition to any electrical measurement setup.
Features and Benefits
Ghost Display: Clear and understandable impressions for easy reading
96 x 96 x 45 mm Compact Design: Saves space and fits easily into various panels
Functional Menu Design with 4 Button: Simplifies navigation and operation
3x4 LED Display Screen: Provides clear visibility of measurements
IP54 Protection Class: Offers protection against dust and water splashes
Applications
Industrial automation
Electrical panels
Power distribution systems
Energy management
Additional Information
Approvals: EN 61326, 61000-6-4, 61000-6-2 EMC, EN 60529 Mechanic, EN 61010-1 Safety, EN 60068-2-1, 60068-2-2, 60068-2-30 Environmental
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
