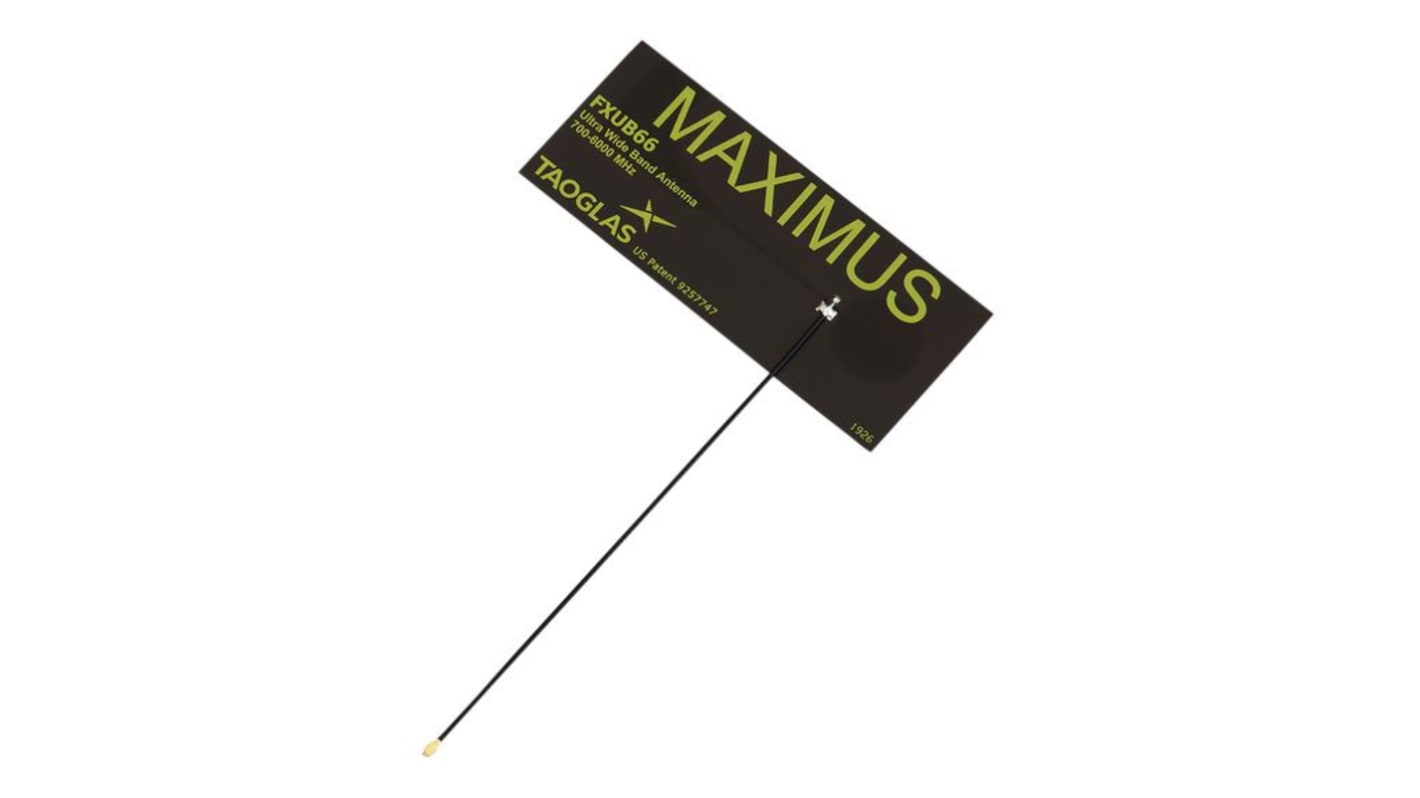

Taoglas FXUB66.07.0150C Square Multiband Antenna with U.FL Connector, 4G LTE, 5G NR, FR1, HSPA, HSPA+, TD-SCDMA, WCDMA
- RS Stock No.:
- 288-4455
- Distrelec Article No.:
- 302-20-240
- Mfr. Part No.:
- FXUB66.07.0150C
- Brand:
- Taoglas
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 288-4455
- Distrelec Article No.:
- 302-20-240
- Mfr. Part No.:
- FXUB66.07.0150C
- Brand:
- Taoglas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Taoglas | |
RF Protocols | 4G LTE, 5G NR, FR1, HSPA, HSPA+, TD-SCDMA, WCDMA | |
Frequency Range | 600 -960 MHz | |
Connector Type | U.FL | |
Gain | 4.8dBi | |
Antenna Mounting Type | Adhesive | |
Antenna Physical Form | Square | |
Internal/External | External | |
Series | FXUB | |
Select all | ||
---|---|---|
Brand Taoglas | ||
RF Protocols 4G LTE, 5G NR, FR1, HSPA, HSPA+, TD-SCDMA, WCDMA | ||
Frequency Range 600 -960 MHz | ||
Connector Type U.FL | ||
Gain 4.8dBi | ||
Antenna Mounting Type Adhesive | ||
Antenna Physical Form Square | ||
Internal/External External | ||
Series FXUB | ||
- COO (Country of Origin):
- TW
The flexible wideband 5G/4G antenna designed to cover all working frequencies in the 600-6000 MHz spectrum. It is ground-plane independent and offers high efficiencies up to 80% on all cellular bands. With its compact size of 120.4x50.4x0.2 mm, it can be easily mounted on non-metal surfaces using the included 3M adhesive. The antenna is fully operational on all Sub-6GHz bands and is compatible with I-PEX MHF®I U.FL connectors. It is CE certified and RoHS & REACH compliant, ensuring quality and safety.
Flexible body with ground breaking high efficiencies on all bands
Covers all working frequencies in the 600-6000 MHz spectrum
Compact size of 120.4x50.4x0.2 mm, ideal for retrofitting wireless functionality
Easy installation with peel and stick process and included 3M adhesive
Fully operational on all Sub-6GHz bands for 5G and 4G connectivity
Compatible with I-PEX MHF®I U.FL connectors for easy connectivity
CE certified and RoHS & REACH compliant for quality and safety
Covers all working frequencies in the 600-6000 MHz spectrum
Compact size of 120.4x50.4x0.2 mm, ideal for retrofitting wireless functionality
Easy installation with peel and stick process and included 3M adhesive
Fully operational on all Sub-6GHz bands for 5G and 4G connectivity
Compatible with I-PEX MHF®I U.FL connectors for easy connectivity
CE certified and RoHS & REACH compliant for quality and safety
