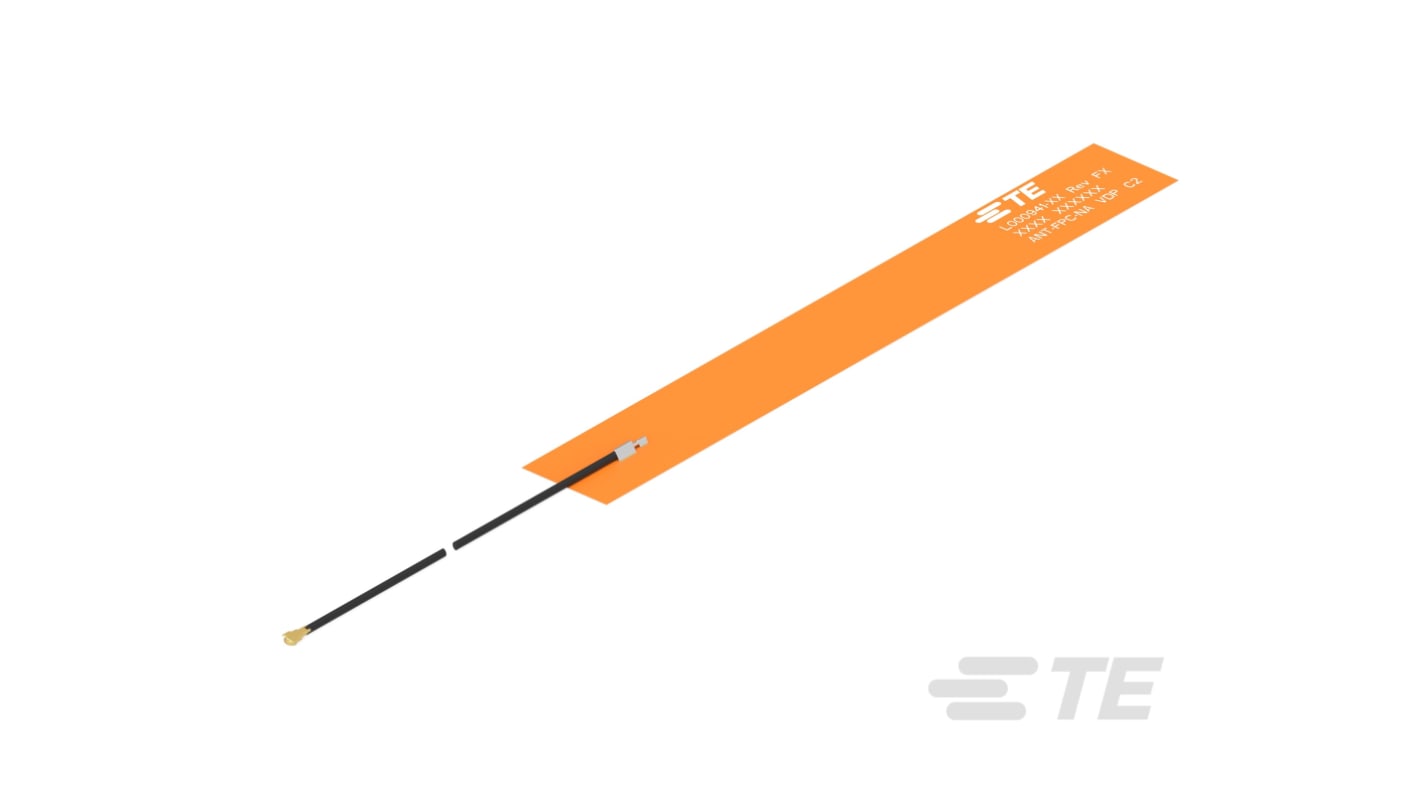

TE Connectivity L000941-09 FPC Multiband Antenna with MHF4L Connector, 5G

View all Multi-Band Antennas

Subtotal (1 box of 2000 units)*

£2,428.00

(exc. VAT)

£2,914.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
2000 +£1.214£2,428.00

*price indicative

RS Stock No.:
426-110
Mfr. Part No.:
L000941-09
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

RF Protocols

5G

Frequency Range

617 → 5000 MHz

Connector Type

MHF4L

Antenna Physical Form

FPC

Antenna Mounting Type

Adhesive

Gain

3.8dB

Internal/External

Internal

Series

L000941

Lead Length

150mm

Antenna Directivity

Omnidirectional

Includes Lead

Yes

Physical Form

PCB

COO (Country of Origin):
CN
The TE Connectivity Antenna is designed for internal or embedded applications, utilizing a flexible printed circuit board structure for optimized signal transmission. It operates within multi-band frequencies ranging from 617 to 6000 megahertz, making it highly compatible with cellular and fifth-generation network technologies. The omnidirectional signal transmission and single connection port ensure seamless connectivity and stable performance. The adhesive-based installation method allows for easy integration into different devices, while its linear signal orientation contributes to reliable communication quality. Equipped with a coaxial cable featuring a maximum insulation diameter of 1.13 millimetres, it delivers efficient signal strength. The precision classification is standard, and the packaging is available in bag and box formats. This antenna meets North American network requirements and is designed to support advanced wireless applications.

Antenna connection type is MHF4
Maximum voltage standing wave ratio is less than 2.7 to 1
Peak signal boost ranges between 3 and 6 decibels isotropic
Maximum signal boost is 3.8 decibels
Weight of the product is 1.5 grams
