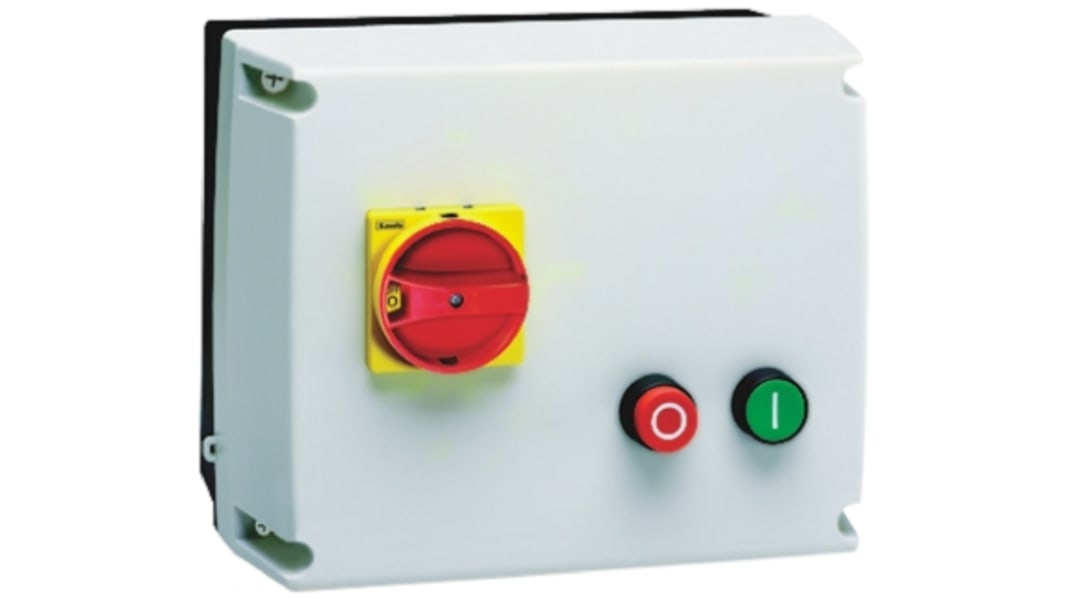

RS PRO Star Delta Starter, Star Delta, 30 kW, 230 V ac, 3 Phase, IP65
- RS Stock No.:
- 725-5594
- Brand:
- RS PRO
1 In stock - FREE next working day delivery available
Added
Price Each
£706.02
(exc. VAT)
£847.22
(inc. VAT)
| Units | Per unit |
| 1 + | £706.02 |
- RS Stock No.:
- 725-5594
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Enclosed Star-Delta Motor Starters
A range of enclosed Star-Delta motor starters which combine high performance and low cost. The range includes options with and without isolator and support for motors from 11 kW to 30 kW.
Moulded plastic case providing IP65 ingress protection
Compliant with standards IEC/EN 60947-1 and IEC/EN 60947-4-1
Operating temperature range -25 °C → +60 °C
Starting time up to 12s and a maximum of 30 operations per hour
Compliant with standards IEC/EN 60947-1 and IEC/EN 60947-4-1
Operating temperature range -25 °C → +60 °C
Starting time up to 12s and a maximum of 30 operations per hour
Note
Each starter is supplied WITHOUT an overload. An appropriate overload must be selected from the RF38 series (for example stock no. 685-1309) and would normally be rated at 58% of the motor FLC.
Specifications
Attribute | Value |
|---|---|
| Power Rating | 30 kW |
| Motor Starter Type | Star Delta |
| Voltage Rating | 230 V ac |
| Phase | 3 |
| Current Rating | 32 → 38 A |
| IP Rating | IP65 |
| Number of Poles | 3P |
| Additional Features | Disconnect Switch Included |
| Overall Length | 220mm |
| Enclosure | Yes |
| Overall Width | 280mm |
| Overall Depth | 170mm |
| Standards Met | IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS Compliant |
