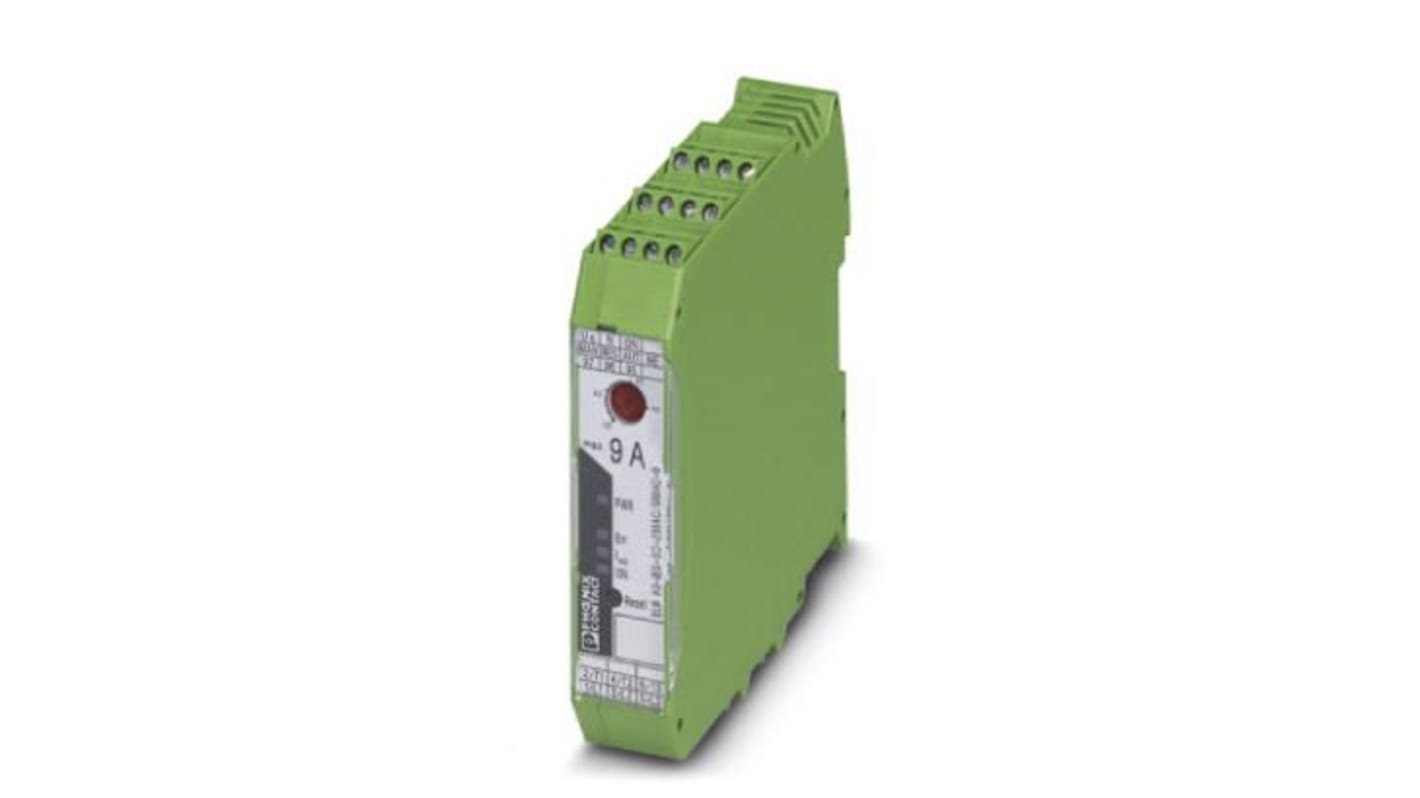

Phoenix Contact ELR H3-IES-SC-230AC/500AC-9 Starter, Reversible, 550V ac, 4 kW, 3 Phase, IP20

View all Motor Starters

Subtotal (1 unit)*

£138.08

(exc. VAT)

£165.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£138.08

*price indicative

RS Stock No.:
719-1774
Mfr. Part No.:
2900570
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Starter

Power Rating

4kW

Sub Type

Reversible

Number of Phases

3

Current Rating

9A

Mount Type

DIN Rail

IP Rating

IP20

Overall Length

106.6mm

Maximum Voltage

550V ac

Hazardous Area Certification

ATEX

Overall Width

22.5mm

Standards/Approvals

IEC 61508, IEC 60947-4-2, EAC Approved, DNV GL Approved, cUL Approved, CCC Approved/IEC 60947-1, UL Approved, ISO 13849, IECEE Approved

Overall Depth

113.7mm

Series

ELR H3-IES-SC-230AC/500AC-9

Phoenix Contact CONTACTRON '3 in 1' Hybrid Motor Starters


The Phoenix Contact ATEX approved, ELR series of Contactron 3 in 1 hybrid motor starters.The forward running motor starters are designed for DIN Rail mounting and for starting 3 phase motors up to 500 V ac where adjustable overload shutdown and emergency stop function is to safety integrity level 3 (SIL 3) and performance level E (PL e).

Features and Benefits

• ATEX approved

• IP20 protection

• Screw connection

• Adjustable overload shutdown

• Emergency stop to SIL 3/PL e

• Needs little space (only 22.5 mm wide)

• Less wiring time and expense (up to 75% less wiring time compared to conventional contactors)

• Easy DIN rail mounting

• Low-wear switching

• Adjustable current for bimetal function

Standards

IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, ATEX
