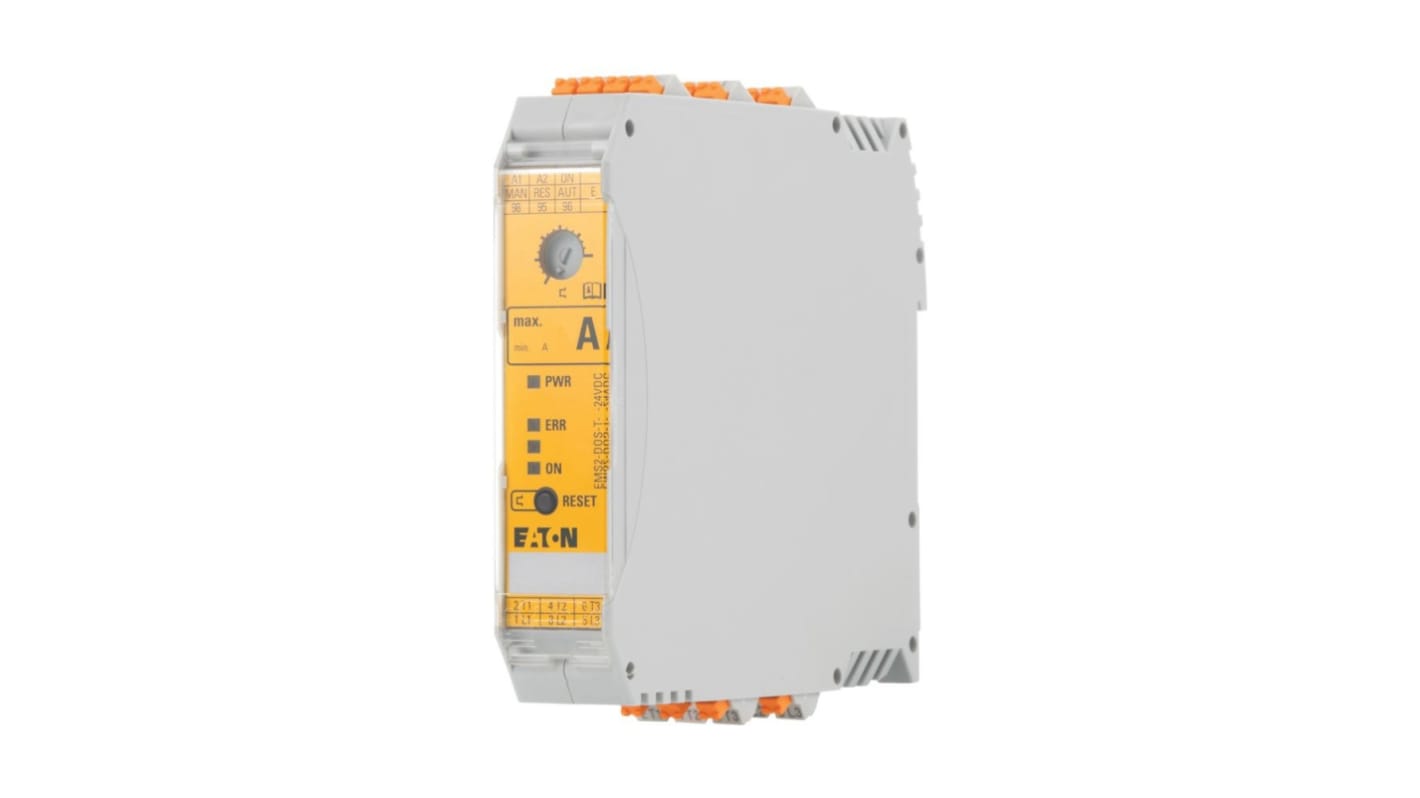

Eaton Eaton Moeller EMS2 Starter, DOL, 24V dc, 0.75 kW, 3 Phase, IP20
- RS Stock No.:
- 282-7077
- Distrelec Article No.:
- 302-54-056
- Mfr. Part No.:
- 192393 EMS2-DOS-T-3-24VDC
- Brand:
- Eaton
Subtotal (1 unit)*
£205.49
(exc. VAT)
£246.59
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £205.49 |
*price indicative
- RS Stock No.:
- 282-7077
- Distrelec Article No.:
- 302-54-056
- Mfr. Part No.:
- 192393 EMS2-DOS-T-3-24VDC
- Brand:
- Eaton
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 0.75kW | |
| Product Type | Starter | |
| Sub Type | DOL | |
| Number of Phases | 3 | |
| Current Rating | 3A | |
| Mount Type | Rail | |
| IP Rating | IP20 | |
| Maximum Voltage | 24V dc | |
| Overall Width | 22.5mm | |
| Hazardous Area Certification | PTB 19 ATEX 3000 | |
| Standards/Approvals | IEC/EN 60947-4-2 EN ISO 13849 UL508 IEC 61508 UL report applies to both US and Canada PTB 19 ATEX 3000 CSA-C22.2 No. 60947-4-1-14 U | |
| Series | Eaton Moeller EMS2 | |
| Overall Depth | 114.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 0.75kW | ||
Product Type Starter | ||
Sub Type DOL | ||
Number of Phases 3 | ||
Current Rating 3A | ||
Mount Type Rail | ||
IP Rating IP20 | ||
Maximum Voltage 24V dc | ||
Overall Width 22.5mm | ||
Hazardous Area Certification PTB 19 ATEX 3000 | ||
Standards/Approvals IEC/EN 60947-4-2 EN ISO 13849 UL508 IEC 61508 UL report applies to both US and Canada PTB 19 ATEX 3000 CSA-C22.2 No. 60947-4-1-14 U | ||
Series Eaton Moeller EMS2 | ||
Overall Depth 114.5mm | ||
- COO (Country of Origin):
- DE
The Eaton DOL (Direct-On-Line) starter features a circuit design with a safety output stage equipped with a bypass. It includes a three-phase disconnect for safety purposes. Additionally, it incorporates temperature-compensated overload protection to safeguard the system against overheating.
Motor protection
Degree of protection IP20 NEMA
