Phoenix Contact ELR Motor Starter, Direct on Line, 500V ac, 3 Phase, IP20
- RS Stock No.:
- 207-4907
- Mfr. Part No.:
- 2903920
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£120.05
(exc. VAT)
£144.06
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £120.05 |
*price indicative
- RS Stock No.:
- 207-4907
- Mfr. Part No.:
- 2903920
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Motor Starter | |
| Sub Type | Direct on Line | |
| Number of Phases | 3 | |
| Current Rating | 0.6A | |
| Mount Type | DIN Rail | |
| IP Rating | IP20 | |
| Overall Length | 107.5mm | |
| Maximum Voltage | 500V ac | |
| Standards/Approvals | ISO 13849, IEC 61508, IEC 60947-4-2, IEC 60947-1 | |
| Hazardous Area Certification | No | |
| Overall Width | 22.5mm | |
| Overall Depth | 114mm | |
| Series | ELR | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Motor Starter | ||
Sub Type Direct on Line | ||
Number of Phases 3 | ||
Current Rating 0.6A | ||
Mount Type DIN Rail | ||
IP Rating IP20 | ||
Overall Length 107.5mm | ||
Maximum Voltage 500V ac | ||
Standards/Approvals ISO 13849, IEC 61508, IEC 60947-4-2, IEC 60947-1 | ||
Hazardous Area Certification No | ||
Overall Width 22.5mm | ||
Overall Depth 114mm | ||
Series ELR | ||
- COO (Country of Origin):
- DE

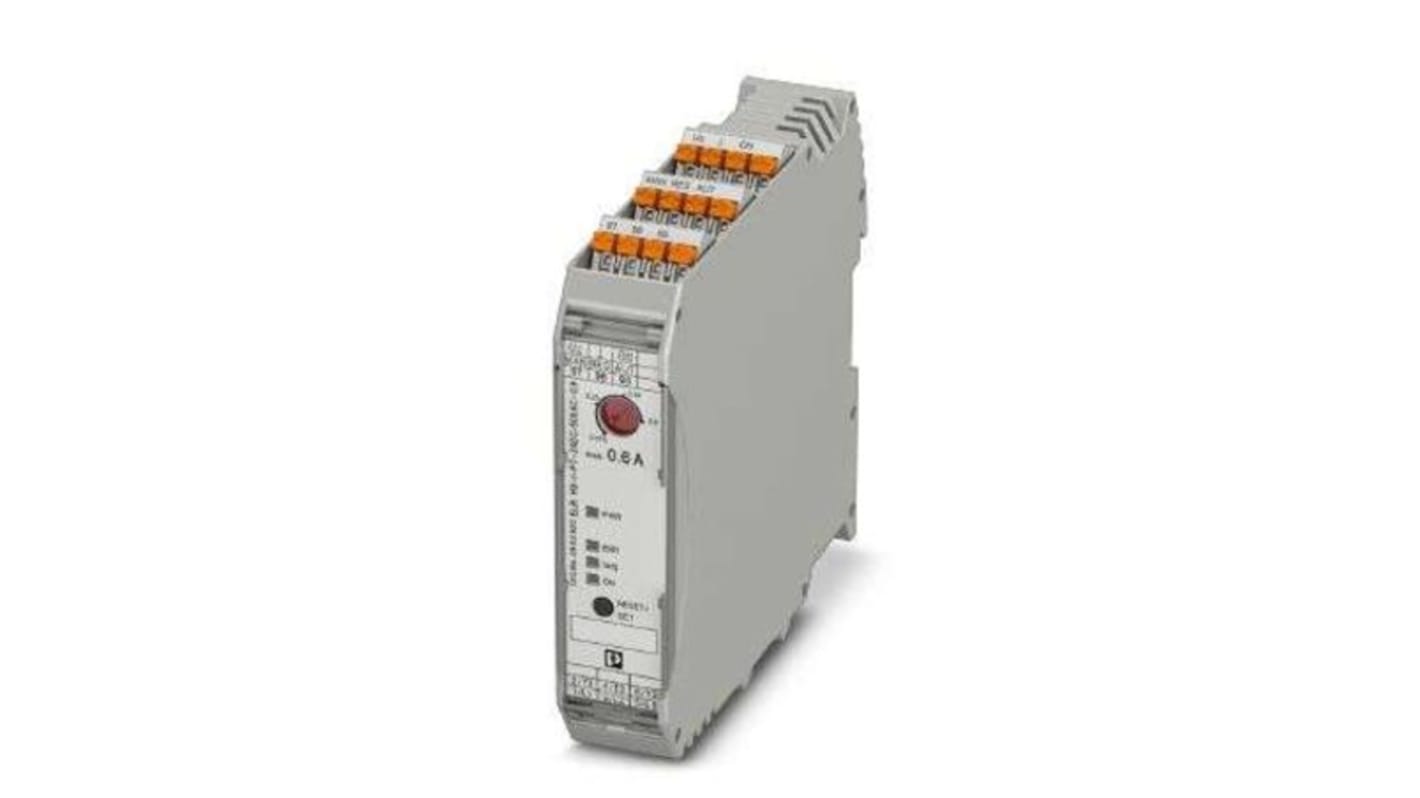

The Phoenix Contact hybrid motor starter for reversing 3 AC motor up to 500 V AC and 0.6 A output current with adjustable overload shutdown. It used push-in connection and has 8 mm of stripping length. It has 1.5 W of power.
Ambient temperature -25 °C to 70 °C
Degree of protection IP20
Mains frequency 50/60 Hz
