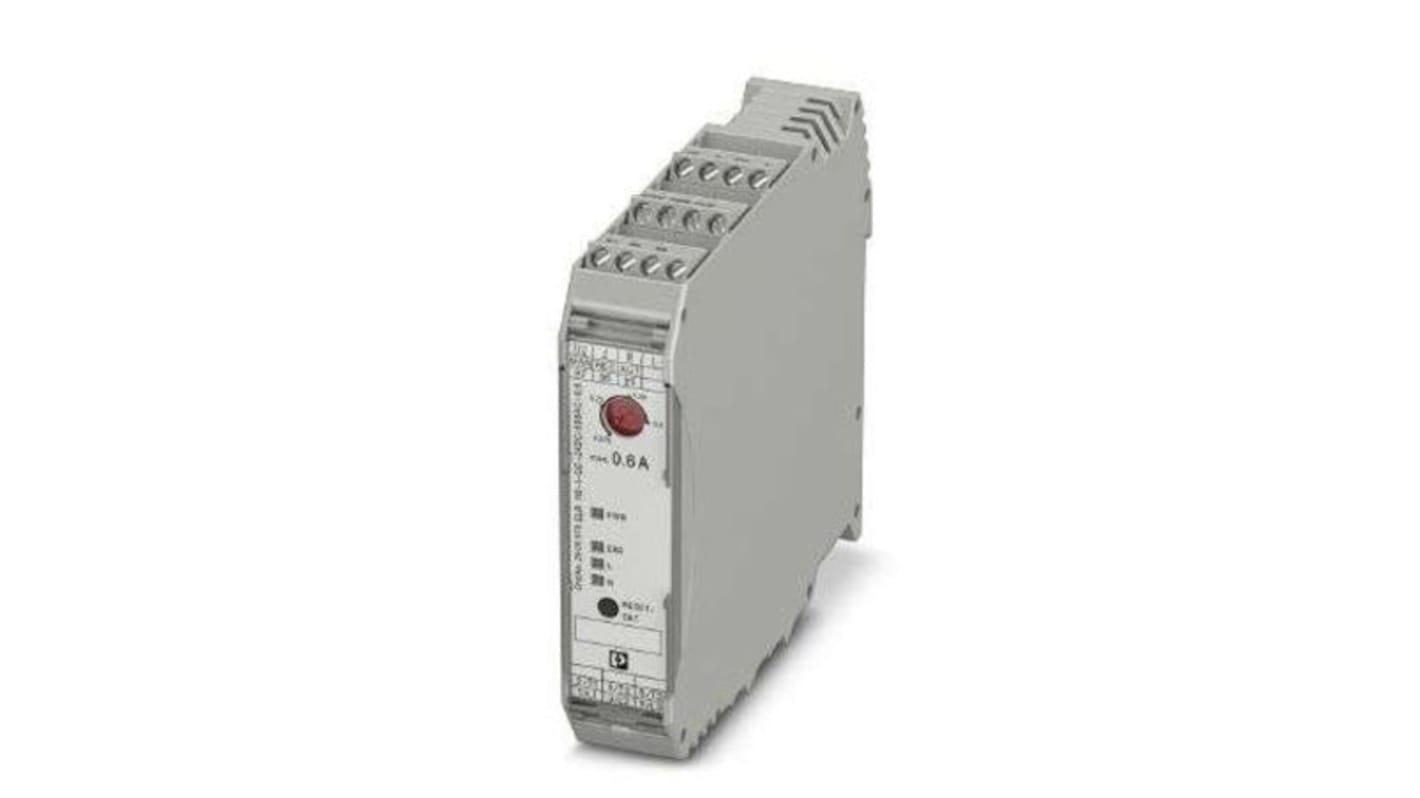

Phoenix Contact ELR Advanced Motor Starter, Reversible, 550V ac, 1 W, 3 Phase, IP20
- RS Stock No.:
- 207-4903
- Mfr. Part No.:
- 2900573
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£134.47
(exc. VAT)
£161.36
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.47 |
*price indicative
- RS Stock No.:
- 207-4903
- Mfr. Part No.:
- 2900573
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Power Rating | 1W | |
| Product Type | Advanced Motor Starter | |
| Sub Type | Reversible | |
| Number of Phases | 3 | |
| Current Rating | 0.6A | |
| IP Rating | IP20 | |
| Mount Type | DIN Rail | |
| Overall Length | 107mm | |
| Maximum Voltage | 550V ac | |
| Overall Width | 22.5mm | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | DNV GL, CCC/EN 60947, cUL, EAC, IEC 61508, IECEE, ISO 13849, UL | |
| Overall Depth | 114mm | |
| Series | ELR | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Power Rating 1W | ||
Product Type Advanced Motor Starter | ||
Sub Type Reversible | ||
Number of Phases 3 | ||
Current Rating 0.6A | ||
IP Rating IP20 | ||
Mount Type DIN Rail | ||
Overall Length 107mm | ||
Maximum Voltage 550V ac | ||
Overall Width 22.5mm | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals DNV GL, CCC/EN 60947, cUL, EAC, IEC 61508, IECEE, ISO 13849, UL | ||
Overall Depth 114mm | ||
Series ELR | ||
- COO (Country of Origin):
- DE
The Phoenix Contact hybrid motor starter for reversing 3 AC motor up to 500 V AC and 0.6 A output current with 24 V DC control voltage. It has adjustable overload shutdown and used screw connection. It has 8 mm of stripping length. It has 1.5 W of power.
Ambient temperature -25 °C to 70 °C
Degree of protection IP20
