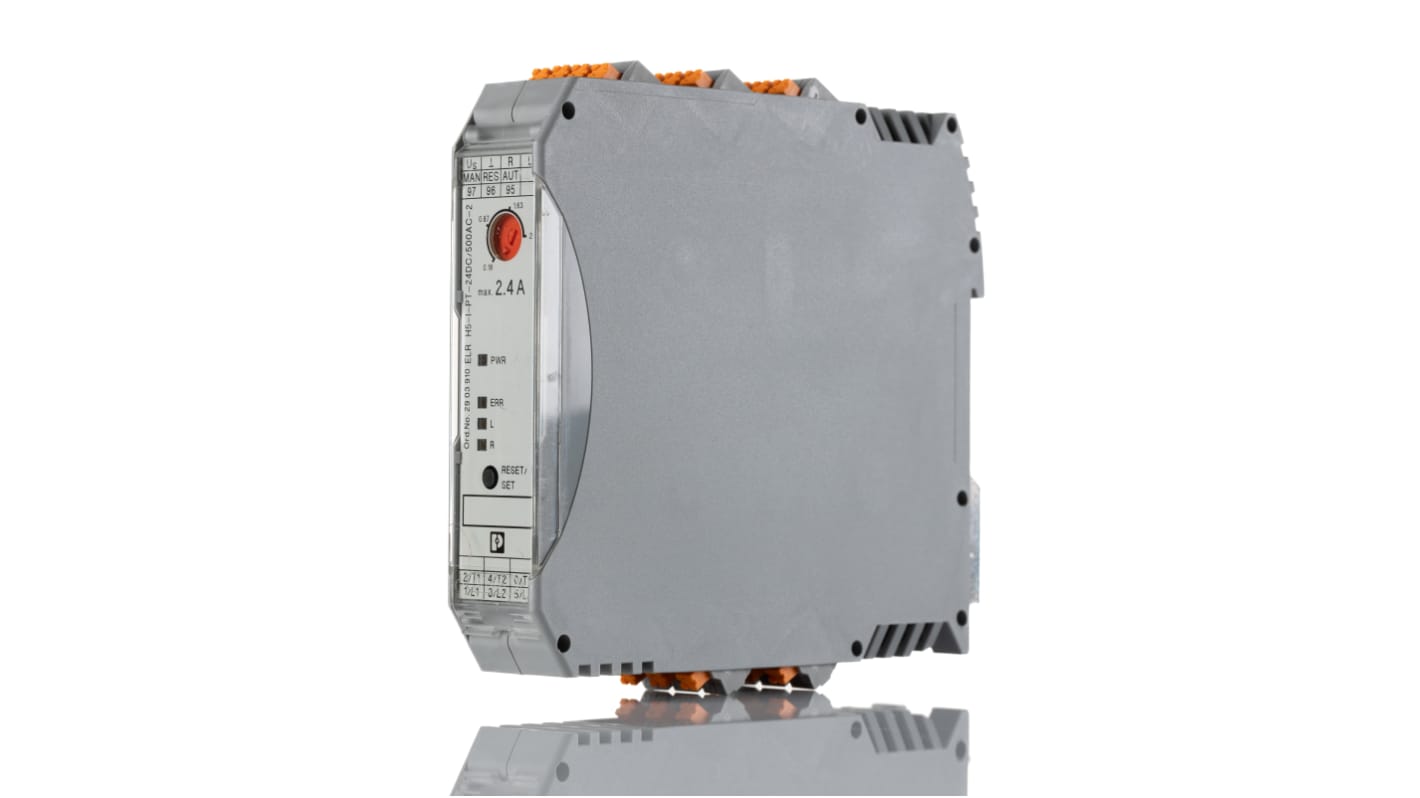

Phoenix Contact ELR H5-I-PT- 24DC/500AC-2 Motor Starter, Reversible, 24V, 3 W, 3 Phase, IP20
- RS Stock No.:
- 197-5976
- Distrelec Article No.:
- 303-48-075
- Mfr. Part No.:
- 2903910
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£134.47
(exc. VAT)
£161.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.47 |
*price indicative
- RS Stock No.:
- 197-5976
- Distrelec Article No.:
- 303-48-075
- Mfr. Part No.:
- 2903910
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Power Rating | 3W | |
| Product Type | Motor Starter | |
| Sub Type | Reversible | |
| Number of Phases | 3 | |
| Current Rating | 2.4A | |
| IP Rating | IP20 | |
| Mount Type | DIN Rail | |
| Overall Length | 107.5mm | |
| Maximum Voltage | 24V | |
| Standards/Approvals | EAC Certified | |
| Hazardous Area Certification | ATEX | |
| Overall Width | 22.5mm | |
| Series | ELR H5-I-PT- 24DC/500AC-2 | |
| Overall Depth | 114mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Power Rating 3W | ||
Product Type Motor Starter | ||
Sub Type Reversible | ||
Number of Phases 3 | ||
Current Rating 2.4A | ||
IP Rating IP20 | ||
Mount Type DIN Rail | ||
Overall Length 107.5mm | ||
Maximum Voltage 24V | ||
Standards/Approvals EAC Certified | ||
Hazardous Area Certification ATEX | ||
Overall Width 22.5mm | ||
Series ELR H5-I-PT- 24DC/500AC-2 | ||
Overall Depth 114mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact Motor Starter, 3 Phase Loop Bridges, IP20 Rating - ELR H5-I-PT- 24DC/500AC-2 - 2903910
Get your system off the blocks with this motor starter from Phoenix Contact. As it's designed for use with three-phase AC motors up to 500V AC, it's a versatile piece of kit. An IP20 rating indicates that it provides protection from accidental touching, so you can handle it without worrying about getting a shock. Compact dimensions of 114 (D) x 107.5 (L) x 22.5mm (W) mean this is a space-saving solution for setups with limited room.
A voltage rating of 24V DC means the starter supports your low-voltage applications. When you're working hard, LED indicators allow for simple status monitoring at a glance. Thanks to the push-in connection, there's no need for fasteners, reducing the risk of damage during installation. You'll typically find this kind of component used in heating, ventilation and air conditioning systems.
Features & Benefits
• DIN rail mounting makes setup a cinch
• Dynamic operating temperature range of -25°C to +70°C means it's ideal for use in demanding conditions
• Adjustable current for bimetal function that provides overload protection, for ease of operation
