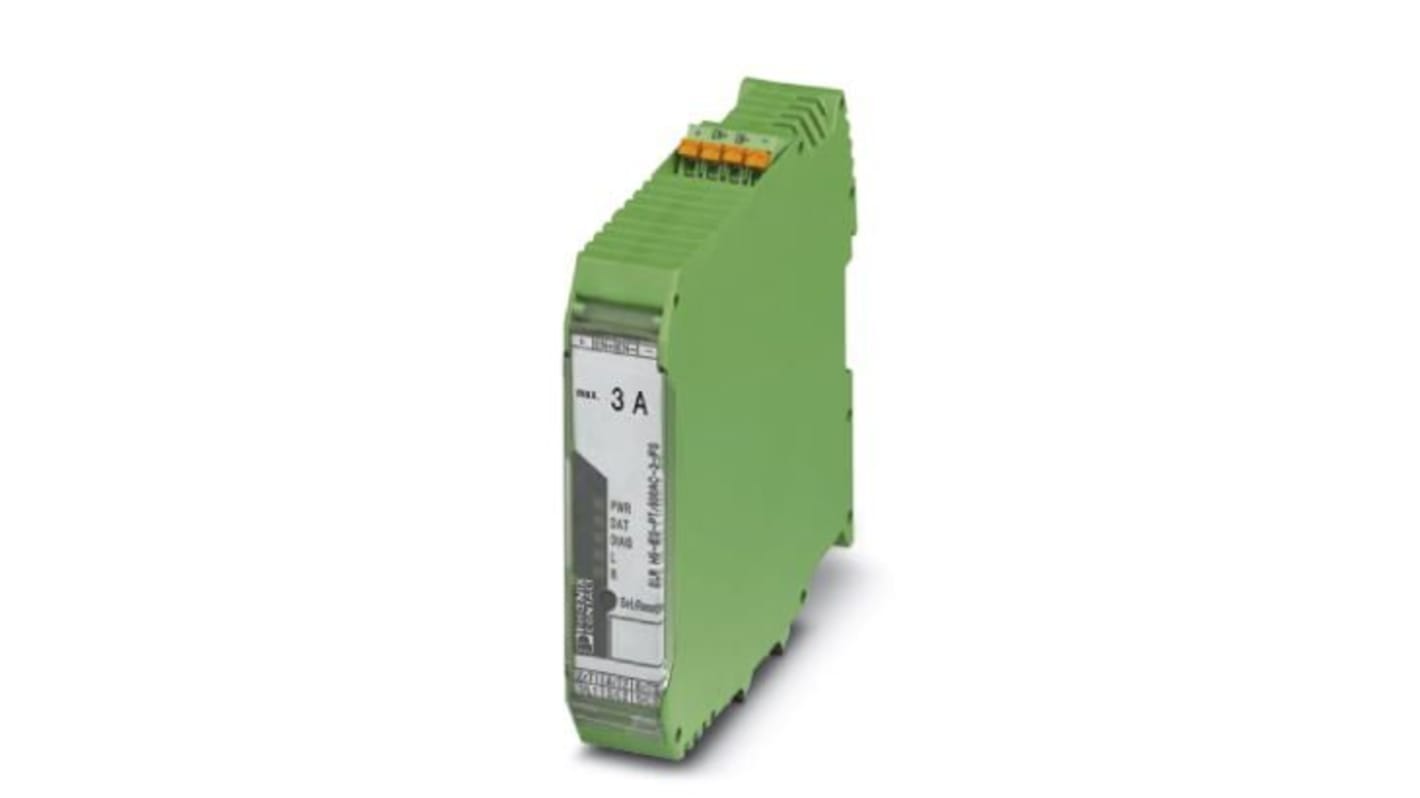

Phoenix Contact CONTACTRON Motor Starter, Reversing Starter, 24 V dc, 3 Phase, IP20
- RS Stock No.:
- 197-5964
- Mfr. Part No.:
- 2905139
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£239.66
(exc. VAT)
£287.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £239.66 |
*price indicative
- RS Stock No.:
- 197-5964
- Mfr. Part No.:
- 2905139
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Range | CONTACTRON | |
Motor Starter Type | Reversing Starter | |
Voltage Rating | 24 V dc | |
Phase | 3 | |
Current Rating | 3 A | |
IP Rating | IP20 | |
Motor Starter Functionality | Automatic | |
Reversibility | Yes | |
Overall Length | 107.5mm | |
Enclosure | Yes | |
Overall Width | 22.5mm | |
Mounting Type | DIN Rail | |
Series | ELR H5-IES-PT/500AC-3-IFS | |
Hazardous Area Certification | ATEX | |
Overall Depth | 114mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Range CONTACTRON | ||
Motor Starter Type Reversing Starter | ||
Voltage Rating 24 V dc | ||
Phase 3 | ||
Current Rating 3 A | ||
IP Rating IP20 | ||
Motor Starter Functionality Automatic | ||
Reversibility Yes | ||
Overall Length 107.5mm | ||
Enclosure Yes | ||
Overall Width 22.5mm | ||
Mounting Type DIN Rail | ||
Series ELR H5-IES-PT/500AC-3-IFS | ||
Hazardous Area Certification ATEX | ||
Overall Depth 114mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact Motor Starter, Reversing Type, Push-In Terminals - ELR H5-IES-PT/500AC-3-IFS - 2905139
Keep machines running like clockwork with this three-phase motor starter from Phoenix Contact. As a reversing device, it's able to control the start and direction of motors. It has an insulated voltage rating of 500V AC and is approved for AC-53a and AC-51 use. That means it can handle the high-powered squirrel-cage, slightly inductive and inductive-free motors typically found driving pumps, conveyors and fans. Thanks to microprocessor-controlled semiconductor and relay technology, you can expect a long service life.
Adjustable overload shutdown, along with surge and reverse polarity protections, guards against electrical damage. The emergency stop function is designed to meet Safety Integrity Level 3, so you can be sure it works reliably. With an emergency trip time of
Adjustable overload shutdown, along with surge and reverse polarity protections, guards against electrical damage. The emergency stop function is designed to meet Safety Integrity Level 3, so you can be sure it works reliably. With an emergency trip time of
• Networkable for full integration with industrial systems
• LEDs make status, operating voltage and error detection a doddle
• Flame retardant to UL 94-V0 standards, ensuring vertical burning stops within 10 seconds
• Wide operating temperature range between -5°C and +60°C, to handle harsh conditions
• Accepts rigid and flexible conductors between 0.2 and 2.5mm² for wide compatibility
• LEDs make status, operating voltage and error detection a doddle
• Flame retardant to UL 94-V0 standards, ensuring vertical burning stops within 10 seconds
• Wide operating temperature range between -5°C and +60°C, to handle harsh conditions
• Accepts rigid and flexible conductors between 0.2 and 2.5mm² for wide compatibility
