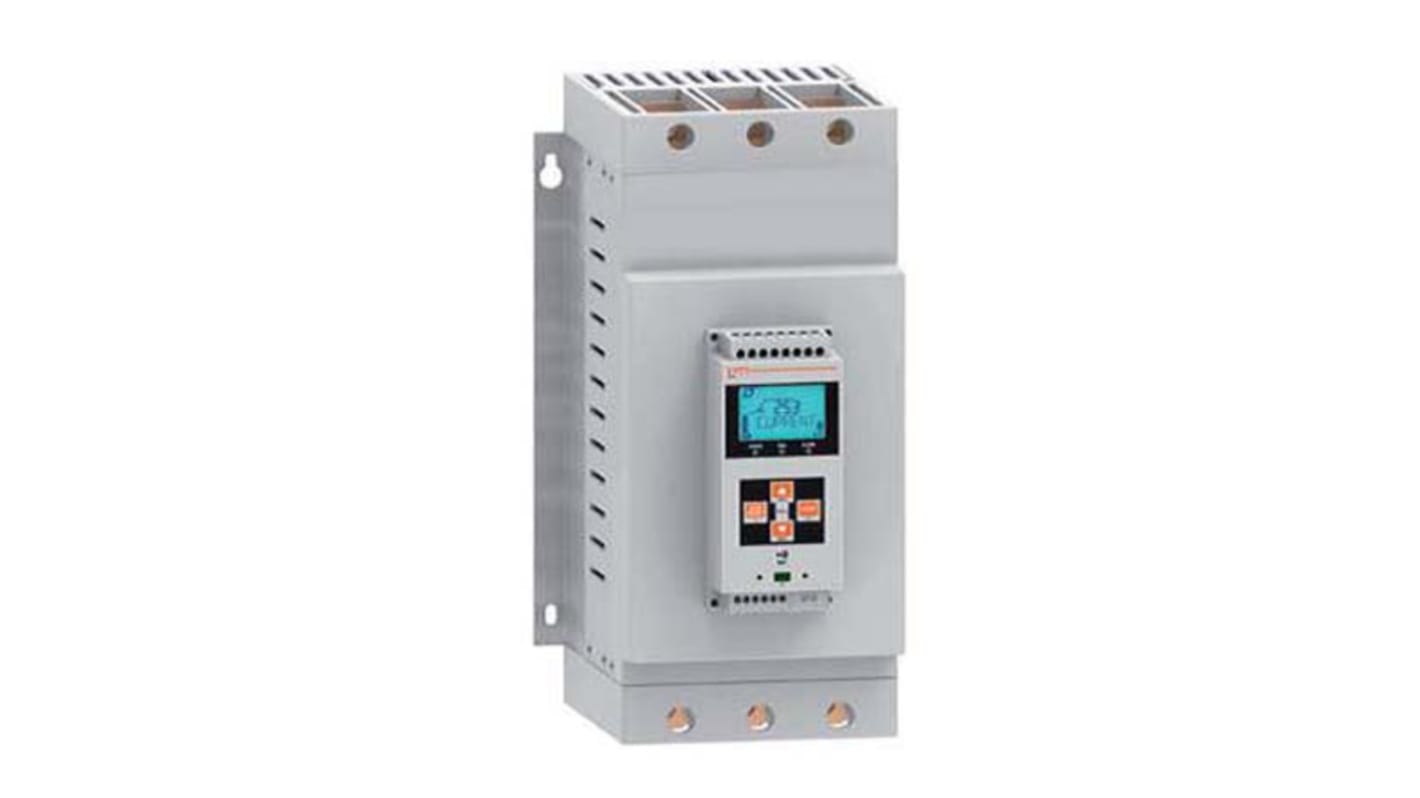

Lovato Soft Starter, , 160 kW, 600 V ac, 2 Phase
- RS Stock No.:
- 136-6397
- Mfr. Part No.:
- ADXL0320600
- Brand:
- Lovato
Subtotal (1 unit)*
£2,196.93
(exc. VAT)
£2,636.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,196.93 |
*price indicative
- RS Stock No.:
- 136-6397
- Mfr. Part No.:
- ADXL0320600
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Power Rating | 160 kW | |
| Motor Starter Type | Soft Start | |
| Voltage Rating | 600 V ac | |
| Phase | 2 | |
| Current Rating | 320 A | |
| IP Rating | IP00 | |
| Mounting Type | DIN Rail | |
| Series | ADXL | |
| Standards Met | CSA C22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-2, UL 508 | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Power Rating 160 kW | ||
Motor Starter Type Soft Start | ||
Voltage Rating 600 V ac | ||
Phase 2 | ||
Current Rating 320 A | ||
IP Rating IP00 | ||
Mounting Type DIN Rail | ||
Series ADXL | ||
Standards Met CSA C22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-2, UL 508 | ||
- COO (Country of Origin):
- IT
ADXL Soft Starters
A range of ADXL series soft starters from Lovato Electric. These soft starters allow control of the start and stop of 3 phase asynchronous motors on two-phases with built-in bypass. The ADXL soft starters are equipped with a backlight display with icons and NFC technology for a simple configuration, also possible from smartphones and tablets. Having the installation wizard the ADXL soft starters are ideal for simple 'plug and play' applications. The ADXLs include protection features for the starter and motor, and it is possible to enable specific alarms to signal maintenance needs, such as the number of startups performed or the operation hours of the motor.
Features & Benefits
Two Phase Control
Backlit LCD display
Texts available in 6 languages (ENG-ITA-FR-ES-POR-DE)
IEC rated starter current from 30 to 320A
IEC rated motor power 15 to 160 kW (400 VAC) and 18.5 to 200 kW (500 VAC)
UL/CSA rated motor power 15HP to 200HP (380-415 VAC) and 25HP to 300HP (550-600 VAC)
Voltage ramp startup
Torque control
Kick start
Limited maximum starting current
Free wheel or controlled stop
Built-in bypass relay
Optical port for programming data download and diagnostics through the software and app
NFC technology for parameter programming through the app
Optional RS485 communication
Modbus-ASCII, Modbus-RTU and Modbus-TCPcommunication protocols
Supervision and energy management software
Lovato
