Schneider Electric TeSys H Reversing Starter, Reversible, 500V ac, 3 kW, 3 Phase, IP20
- RS Stock No.:
- 127-1775
- Mfr. Part No.:
- LZ2H6X5BD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£157.78
(exc. VAT)
£189.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £157.78 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 127-1775
- Mfr. Part No.:
- LZ2H6X5BD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 3kW | |
| Product Type | Reversing Starter | |
| Sub Type | Reversible | |
| Number of Phases | 3 | |
| Current Rating | 6.5A | |
| Mount Type | DIN Rail | |
| IP Rating | IP20 | |
| Number of Poles | 3 | |
| Overall Length | 99mm | |
| Maximum Voltage | 500V ac | |
| Standards/Approvals | ATEX, CE, cULus, IEC 60947-4-2, UL 60947-4-1 | |
| Overall Width | 22.5mm | |
| Hazardous Area Certification | NO | |
| Better World Product | Yes | |
| Overall Depth | 114.5mm | |
| Series | TeSys H | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 3kW | ||
Product Type Reversing Starter | ||
Sub Type Reversible | ||
Number of Phases 3 | ||
Current Rating 6.5A | ||
Mount Type DIN Rail | ||
IP Rating IP20 | ||
Number of Poles 3 | ||
Overall Length 99mm | ||
Maximum Voltage 500V ac | ||
Standards/Approvals ATEX, CE, cULus, IEC 60947-4-2, UL 60947-4-1 | ||
Overall Width 22.5mm | ||
Hazardous Area Certification NO | ||
Better World Product Yes | ||
Overall Depth 114.5mm | ||
Series TeSys H | ||

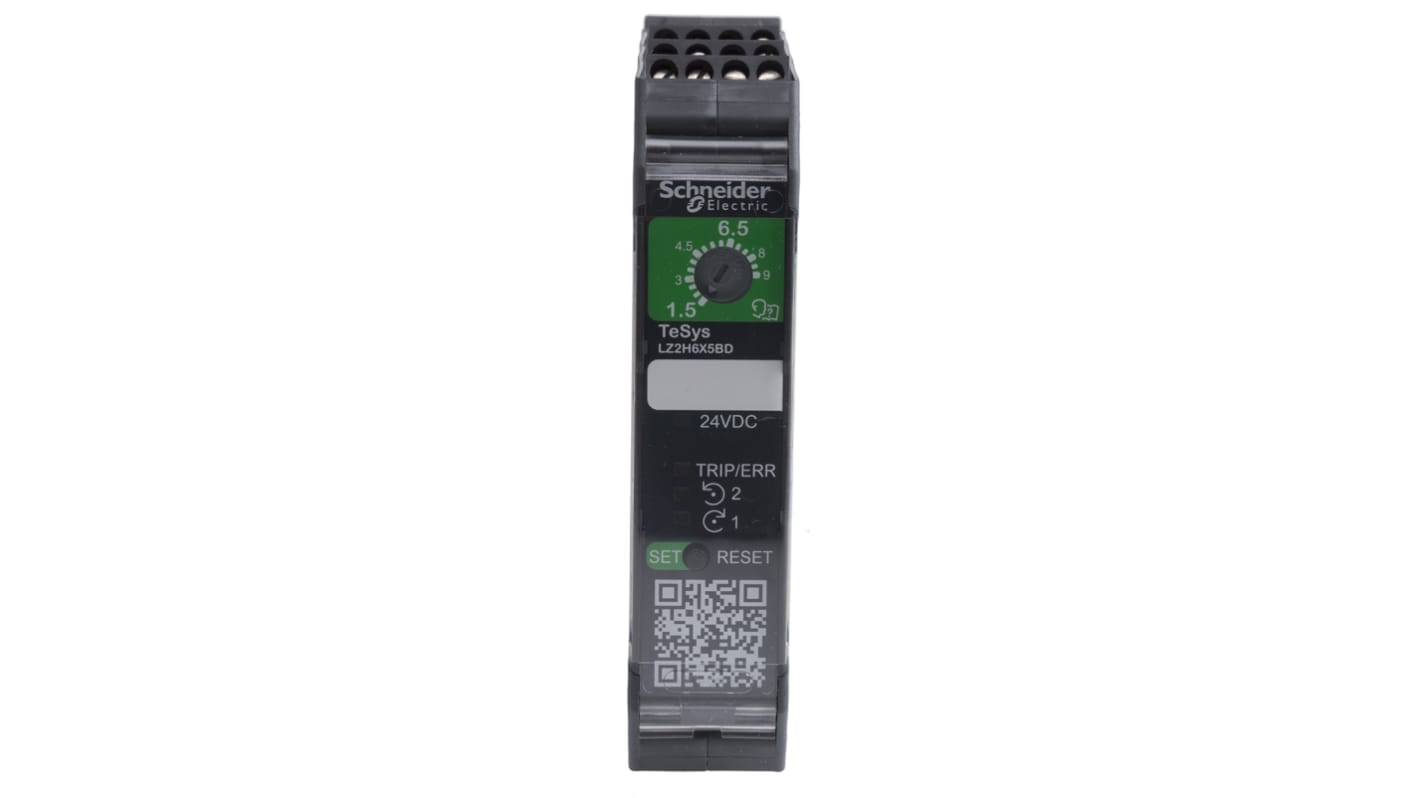

Schneider Electric Reversing Motor Starter, 3kW Power Rating, 24V DC Control - LZ2H Series - LZ2H6X5BD
This reversing motor starter from Schneider Electric protects motors against electrical overloading. It's a DOL type, suitable to use with motor starters that run in either a forward or backward direction, such as those that control the movement of an industrial conveyor. A long electrical life of 30 million cycles makes the device consistently reliable in harsh operating conditions. It's suitable for use in control cabinets where saving space is a priority, thanks to its slim design. This unit is easy to clip onto a DIN rail for quick and tool-free installation.
Features & Benefits
• Dimensions of 99 (H) x 22.5 (W) x 114.5mm (D)
• Choice of automatic, manual or electrical reset for versatility
• Easy-to-use screw clamp terminals for simplified and solder-free electrical connections
• Includes protection against phase imbalances to help prevent damage to sensitive electronic equipment
Applications
• Logistics systems
• Food and beverage industries
• Feeding systems
• Conveyors
Does this motor starter contain any toxic heavy metals?
No, this starter motor doesn't contain any toxic heavy metals. This means it doesn't pose a health risk to operators and also makes it an environmentally-friendly choice.
