Schneider Electric TeSys Motor Starter, DOL, 440V, 0.55 kW, IP65
- RS Stock No.:
- 354-446
- Mfr. Part No.:
- LG1K065V706
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£326.65
(exc. VAT)
£391.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £326.65 |
*price indicative
- RS Stock No.:
- 354-446
- Mfr. Part No.:
- LG1K065V706
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Motor Starter | |
| Power Rating | 0.55kW | |
| Sub Type | DOL | |
| Current Rating | 1, 1.6A | |
| IP Rating | IP65 | |
| Overall Length | 165mm | |
| Maximum Voltage | 440V | |
| Standards/Approvals | WEEE Directive, UKCA, REACh, IEC 60947-4-1, CE, China RoHS, EU RoHS Compliant with Exemptions, IEC 60204-1, IEC 60529 (IP55,IK07) | |
| Hazardous Area Certification | NO | |
| Overall Width | 175mm | |
| Series | TeSys | |
| Overall Depth | 165mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Motor Starter | ||
Power Rating 0.55kW | ||
Sub Type DOL | ||
Current Rating 1, 1.6A | ||
IP Rating IP65 | ||
Overall Length 165mm | ||
Maximum Voltage 440V | ||
Standards/Approvals WEEE Directive, UKCA, REACh, IEC 60947-4-1, CE, China RoHS, EU RoHS Compliant with Exemptions, IEC 60204-1, IEC 60529 (IP55,IK07) | ||
Hazardous Area Certification NO | ||
Overall Width 175mm | ||
Series TeSys | ||
Overall Depth 165mm | ||
- COO (Country of Origin):
- FR

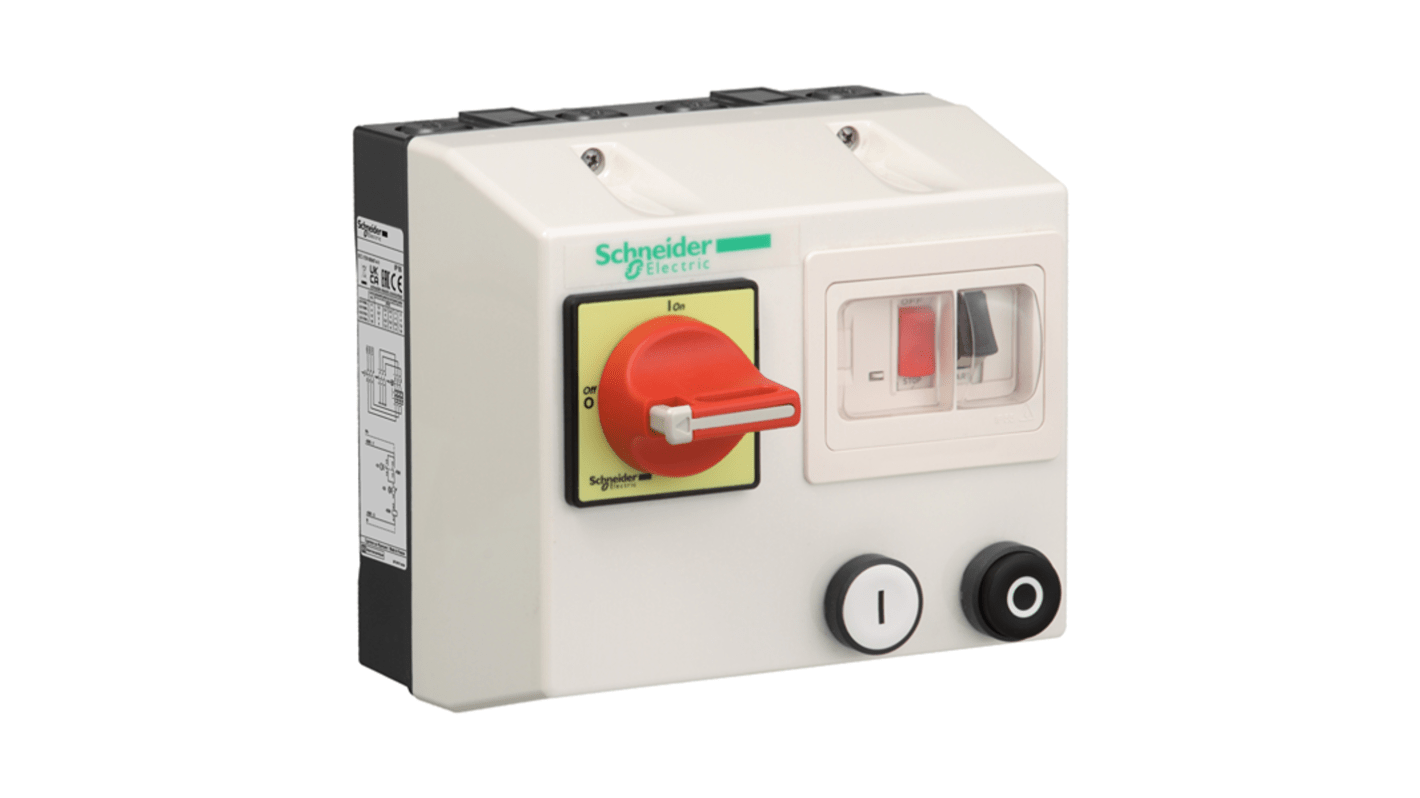

The Schneider Electric Enclosed DOL starter TeSys LG is designed for 1 to 1.6A motor control with a 400V AC coil. It includes an LC1K contactor, a GV2ME motor protection circuit breaker, a rotary isolation switch, and two pushbuttons, providing reliable motor control and protection in industrial applications.
EU RoHS Directive
Mercury free
