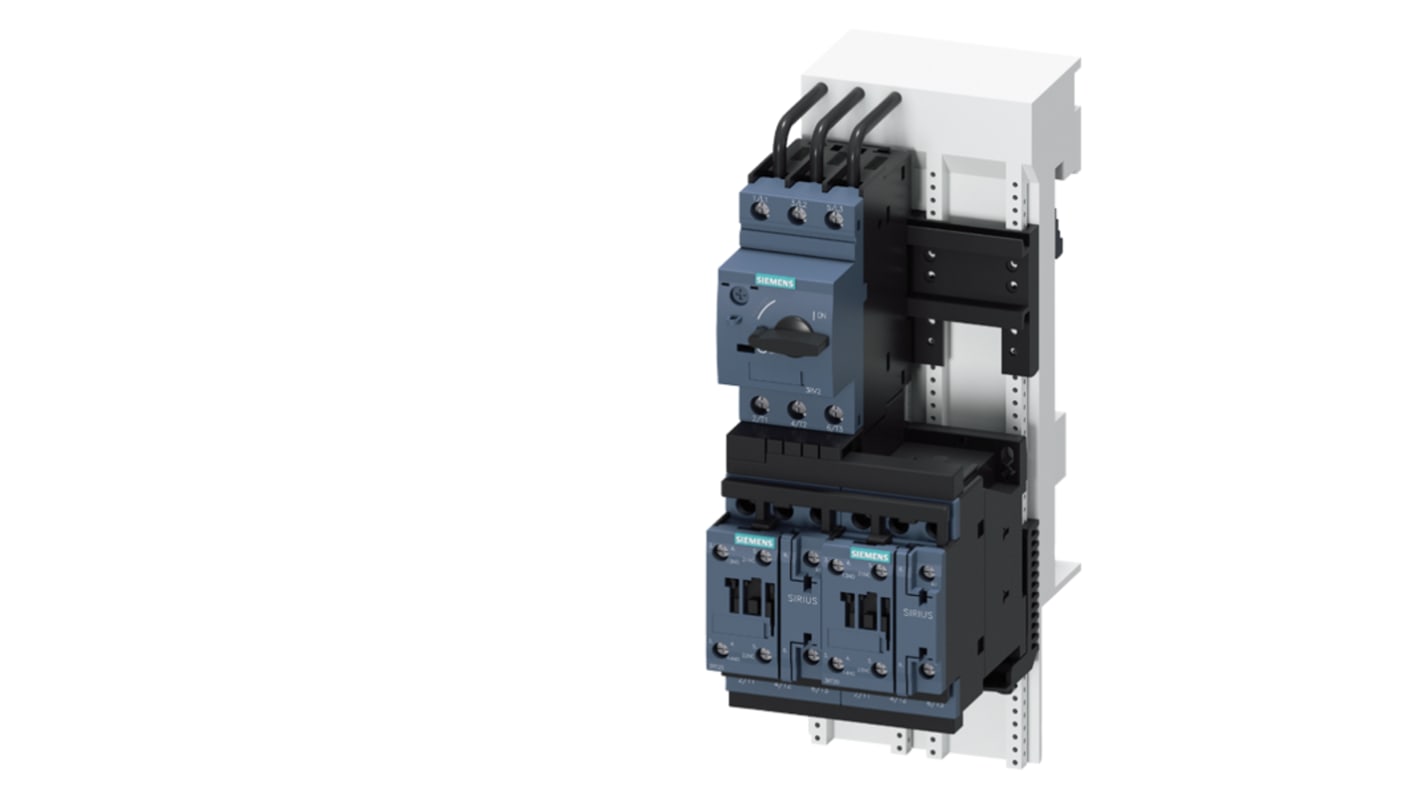

Siemens SIRIUS 3RA2 Reversing Starter, Fuseless Reversing Load Feeder, 690V, 5.5 kW, 3 Phase
- RS Stock No.:
- 152-985
- Mfr. Part No.:
- 3RA2220-1KD24-0AP0
- Brand:
- Siemens
Subtotal (1 unit)*
£279.82
(exc. VAT)
£335.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £279.82 |
*price indicative
- RS Stock No.:
- 152-985
- Mfr. Part No.:
- 3RA2220-1KD24-0AP0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Reversing Starter | |
| Power Rating | 5.5kW | |
| Sub Type | Fuseless Reversing Load Feeder | |
| Number of Phases | 3 | |
| Current Rating | 12A | |
| Mount Type | Vertical | |
| Number of Poles | 3 | |
| Overall Length | 260mm | |
| Maximum Voltage | 690V | |
| Standards/Approvals | RoHS, ABS, CE, DNV, EAC, LRS, PRS, RINA, RMRS, UKCA, UL | |
| Hazardous Area Certification | ATEX | |
| Overall Width | 90mm | |
| Overall Depth | 155mm | |
| Series | SIRIUS 3RA2 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Reversing Starter | ||
Power Rating 5.5kW | ||
Sub Type Fuseless Reversing Load Feeder | ||
Number of Phases 3 | ||
Current Rating 12A | ||
Mount Type Vertical | ||
Number of Poles 3 | ||
Overall Length 260mm | ||
Maximum Voltage 690V | ||
Standards/Approvals RoHS, ABS, CE, DNV, EAC, LRS, PRS, RINA, RMRS, UKCA, UL | ||
Hazardous Area Certification ATEX | ||
Overall Width 90mm | ||
Overall Depth 155mm | ||
Series SIRIUS 3RA2 | ||
- COO (Country of Origin):
- DE
The Siemens reversing starter is designed for efficient load management in industrial applications. Engineered for seamless integration with 60 mm bus systems, it offers robust reversing capabilities up to 12.5 A at 400 V AC. With a compact and durable design, this product ensures reliable performance and meets stringent operational standards, including NEMA ratings. It features advanced overload protection and thermal management, enabling it to thrive in challenging environments. The unit's impressive mechanical service life of up to 10 million cycles signifies its exceptional reliability, making it a wise choice for continuous operations in demanding applications.
Suitable for vertical mounting with efficient space usage
Enhanced insulation voltage for high-performance applications
Designed with shock resistance to withstand harsh conditions
Convenient screw-type terminals simplify installations and connections
Equipped with auxiliary switches for added operational flexibility
