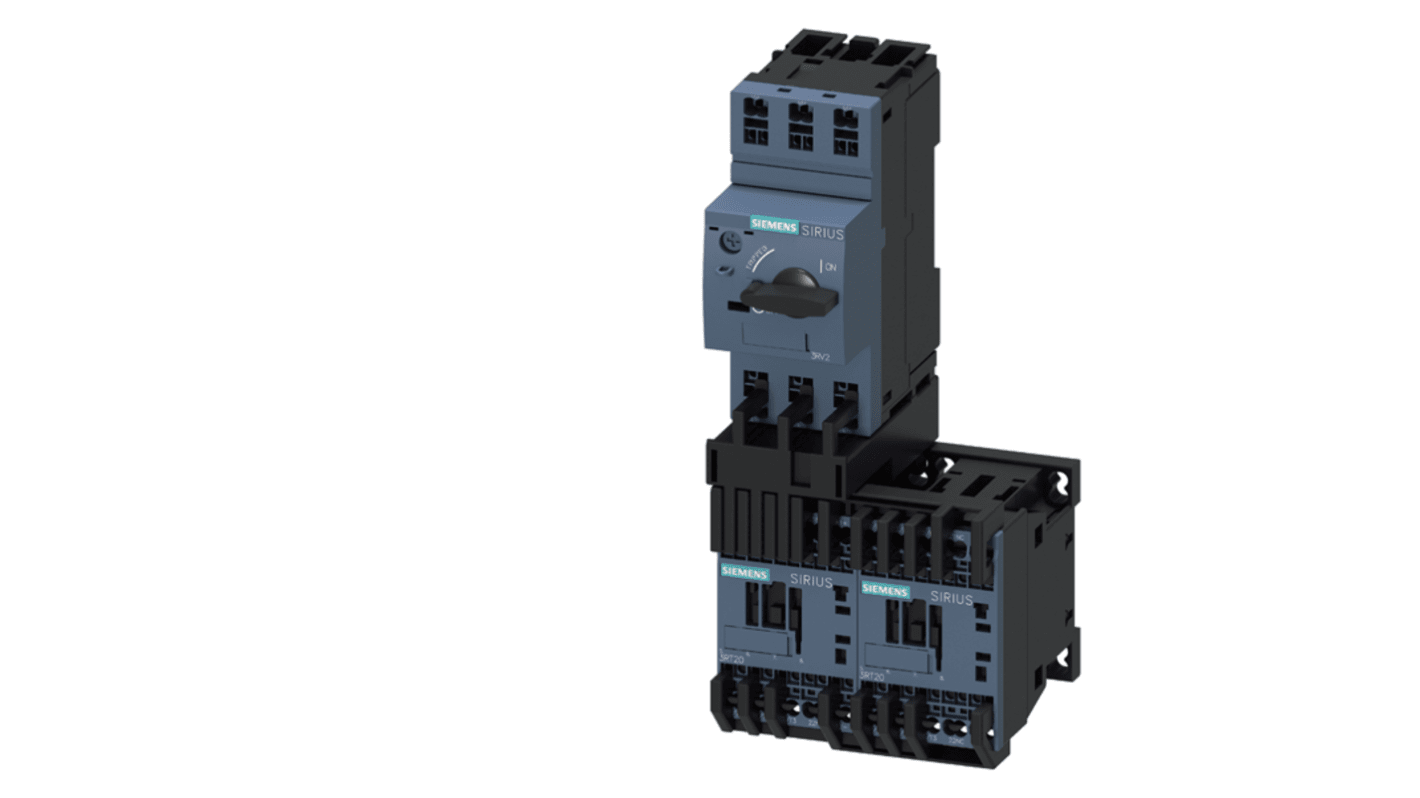

Siemens SIRIUS 3RA2 Reversing Starter, Fuseless Reversing Load Feeder, 690V, 3 kW, 3 Phase
- RS Stock No.:
- 152-563
- Mfr. Part No.:
- 3RA2210-1HE15-2BB4
- Brand:
- Siemens
Subtotal (1 unit)*
£182.73
(exc. VAT)
£219.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £182.73 |
*price indicative
- RS Stock No.:
- 152-563
- Mfr. Part No.:
- 3RA2210-1HE15-2BB4
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Reversing Starter | |
| Power Rating | 3kW | |
| Sub Type | Fuseless Reversing Load Feeder | |
| Number of Phases | 3 | |
| Current Rating | 7A | |
| Mount Type | Rail, Screw | |
| Number of Poles | 3 | |
| Overall Length | 204mm | |
| Maximum Voltage | 690V | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | RINA, ABS, RMRS, CE, DNV, RoHS, EAC, LRS, PRS, UKCA, UL | |
| Overall Width | 90mm | |
| Overall Depth | 97mm | |
| Series | SIRIUS 3RA2 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Reversing Starter | ||
Power Rating 3kW | ||
Sub Type Fuseless Reversing Load Feeder | ||
Number of Phases 3 | ||
Current Rating 7A | ||
Mount Type Rail, Screw | ||
Number of Poles 3 | ||
Overall Length 204mm | ||
Maximum Voltage 690V | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals RINA, ABS, RMRS, CE, DNV, RoHS, EAC, LRS, PRS, UKCA, UL | ||
Overall Width 90mm | ||
Overall Depth 97mm | ||
Series SIRIUS 3RA2 | ||
- COO (Country of Origin):
- DE
The Siemens reversing starter is designed to facilitate efficient motor control in various industrial applications. This advanced load feeder is ideal for ensuring safe and reliable operation at 400 V AC and with a compact size S00. Engineered for both standard rail and screw mounting, it offers remarkable mechanical endurance, boasting a service life of up to 30 million operating cycles. With a variety of protective features like short-circuit protection and a thermal overload release, this product enhances operational safety. Its versatile temperature and humidity rating further ensure reliable functionality across a wide range of environmental conditions, making it a robust choice for demanding applications.
Durable with 30 million cycles mechanical life
Ease of installation on standard mounting rails
Wide temperature range supports diverse applications
Short-circuit protection for operational safety
Suitable for vertical and snap-on mounting
Spring-loaded terminals simplify electrical connections
