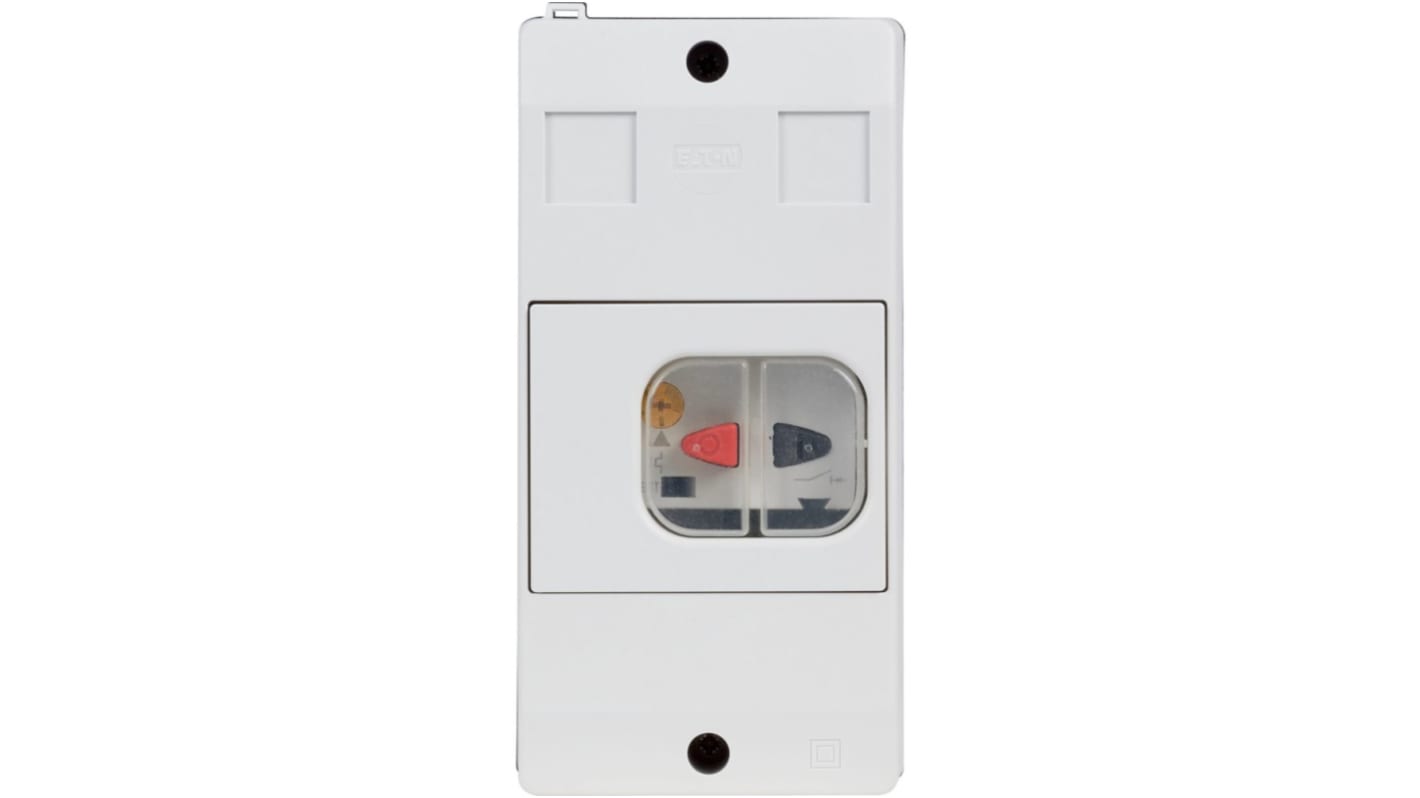

Eaton 160mA PKZM 01 Motor Protection Circuit Breaker, 690V, 40 °C, -25 °C

RS Stock No.:: 272-2366
Mfr. Part No.:: 286068 PKZM01-0,16-G
Brand:: Eaton

Eaton 160mA PKZM 01 Motor Protection Circuit Breaker, 690V, 40 °C, -25 °C

Subtotal (1 unit)*

£94.85

(exc. VAT)

£113.82

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 04 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£94.85

*price indicative

RS Stock No.:: 272-2366
Mfr. Part No.:: 286068 PKZM01-0,16-G
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Current Rating	160mA
	Product Type	Motor Protection Circuit Breaker
	Motor Protection Component	Circuit Breaker
	Supply Voltage	690V
	Motor Protection System	Phase Failure Sensitive
	Series	PKZM 01
	Overall Length	158mm
	Overall Width	117mm
	Overall Depth	158mm
	IP Rating	IP65
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	CSA Std. C22.2 No. 14, IEC 60947-4-1, IEC/EN 60947, UL 508, VDE VDE 0660
	Number of Poles	3

	Select all
	Brand Eaton
	Current Rating 160mA
	Product Type Motor Protection Circuit Breaker
	Motor Protection Component Circuit Breaker
	Supply Voltage 690V
	Motor Protection System Phase Failure Sensitive
	Series PKZM 01
	Overall Length 158mm
	Overall Width 117mm
	Overall Depth 158mm
	IP Rating IP65
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 40°C
	Standards/Approvals CSA Std. C22.2 No. 14, IEC 60947-4-1, IEC/EN 60947, UL 508, VDE VDE 0660
	Number of Poles 3

Datasheet - 286068

COO (Country of Origin):: DE

Eaton PKZM01 Series Motor Protection Circuit Breaker, 160mA, 690V Supply Voltage - 286068 PKZM01-0,16-G

This motor protection circuit breaker is engineered to protect electrical motors, ensuring consistent operation and safety. With a current setting of 160mA and robust construction, it plays a critical role in industrial automation systems. The device operates efficiently within a voltage range of up to 690V, making it suitable for applications that focus on motor protection.

Features & Benefits

• Three-pole design offers comprehensive protection for motors

• High breaking capacity of 50kA increases safety

• Phase-failure sensitivity helps prevent motor damage

• Durable screw terminal connections facilitate easy installation

• Compact design enables flexible mounting options

• Compatible with motors of efficiency class IE3

Applications

• Utilised with three-phase motors in industrial settings

• Suitable for direct-on-line motor starters and control panels

• Ideal for applications requiring a high breaking capacity

• Operates efficiently in ambient temperatures ranging from -25°C to 40°C

What is the maximum voltage this device can handle?

It can safely operate at voltages up to 690V.

How is this device mounted?

It can be easily snapped onto an IEC/EN 60715 top-hat rail, which comes in heights of 7.5mm or 15mm.

Can this circuit breaker protect against overload conditions?

Yes, it includes an overload release mechanism that activates between 0.1A and 0.16A.

What types of connections are supported?

It accommodates screw terminal connections for both flexible and solid conductors.

What is the environmental operating range for this device?

It operates effectively in temperatures ranging from -25 to 40°C during use and can be stored at temperatures from -40 to 80°C.
