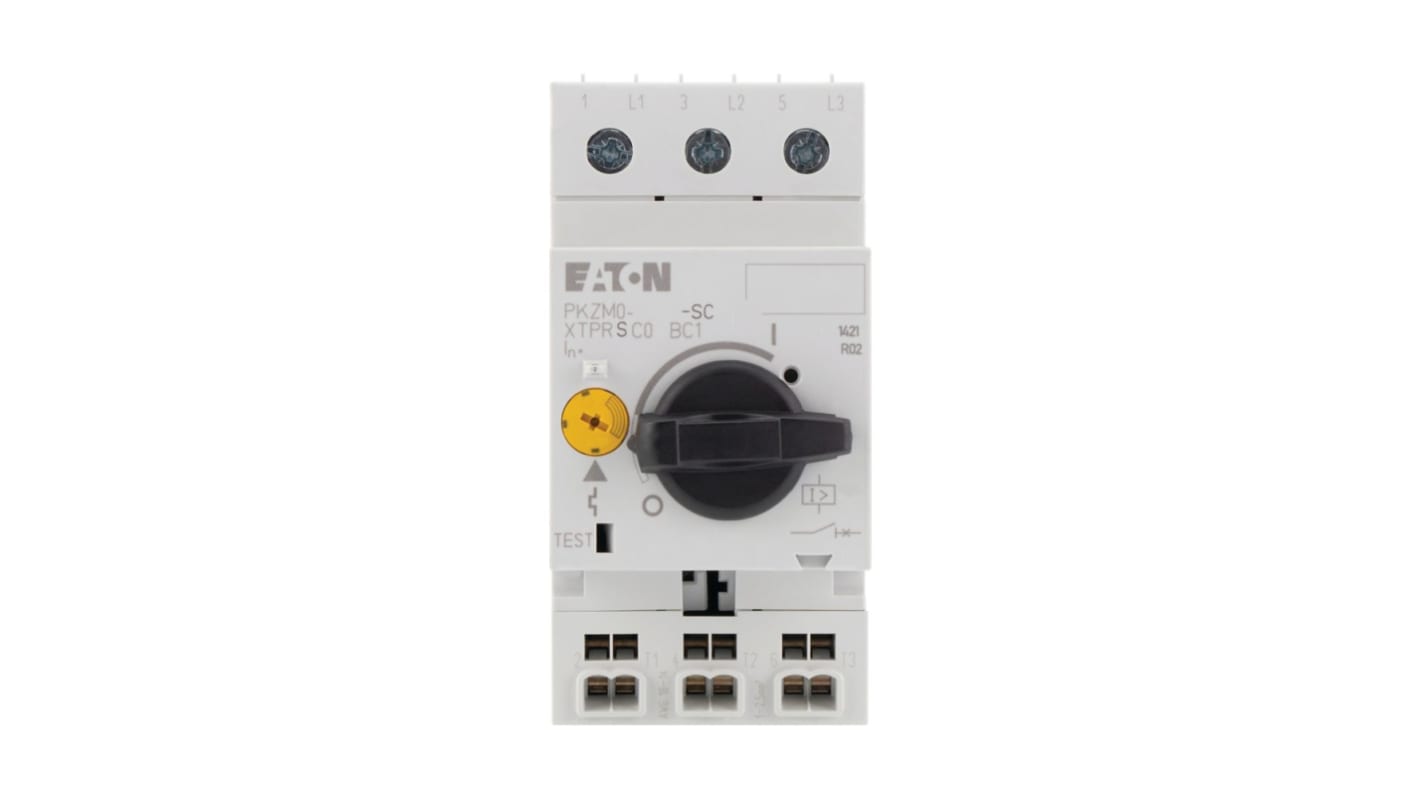

Eaton 1.6 → 2.5 A Motor Protection Circuit Breaker, 690 V
- RS Stock No.:
- 229-9472
- Mfr. Part No.:
- 229834 PKZM0-2,5-SC
- Brand:
- Eaton
Subtotal (1 unit)*
£99.90
(exc. VAT)
£119.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 999,999,996 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £99.90 |
*price indicative
- RS Stock No.:
- 229-9472
- Mfr. Part No.:
- 229834 PKZM0-2,5-SC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 1.6 → 2.5 A | |
| Motor Protection Component | Motor Controller | |
| Supply Voltage | 690 V | |
| Motor Protection System | IE3 Efficiency Class Motor | |
| Number of Inputs | 3 | |
| Output | 3 | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 1.6 → 2.5 A | ||
Motor Protection Component Motor Controller | ||
Supply Voltage 690 V | ||
Motor Protection System IE3 Efficiency Class Motor | ||
Number of Inputs 3 | ||
Output 3 | ||
Eaton PKZM0 Series Motor Protection Circuit Breaker, 1.6 to 2.5A, 690V Supply Voltage - 229834 PKZM0-2,5-SC
This motor protection circuit breaker is essential for industrial applications, safeguarding motors against overloads and phase failures. It is particularly effective with IE3 efficiency class motors and maintains voltage levels up to 690V, enhancing the longevity and safety of electrical systems across various environments.
Features & Benefits
• Provides thermal protection to minimise motor damage
• Three-pole design for effective motor control and safety
• Breaking capacity of 150kA for fault protection
• Phase-failure sensitivity for automatic detection of supply issues
• Spring-cage terminal connection enables quick and secure wiring
• Durable construction accommodates ambient temperatures from -25 to 40°C
• Three-pole design for effective motor control and safety
• Breaking capacity of 150kA for fault protection
• Phase-failure sensitivity for automatic detection of supply issues
• Spring-cage terminal connection enables quick and secure wiring
• Durable construction accommodates ambient temperatures from -25 to 40°C
Applications
• Suitable for automation systems managing multiple motors
• Ideal for electrical installations needing reliable overload protection
• Applicable in control panels for industrial motor systems
• Conforms with IEC/EN 60947 standards for machinery use
• Ideal for electrical installations needing reliable overload protection
• Applicable in control panels for industrial motor systems
• Conforms with IEC/EN 60947 standards for machinery use
What current rating options are available?
It supports a current rating range from 1.6A to 2.5A.
Can it be installed in typical industrial environments?
Yes, it is designed for operation within -25 to 40°C.
How does it ensure safety against electrical faults?
It features a breaking capacity of 150kA for enhanced protection.
Is it compatible with various types of motor controllers?
Yes, it is suitable for use with IE3 efficiency class motors.
What types of terminal connections are provided?
It offers both screw and spring-cage terminal connections for ease of installation.
Note
Replacement part code: PKZM0-2,5-SPI16 / Eaton formerly known as Moeller
