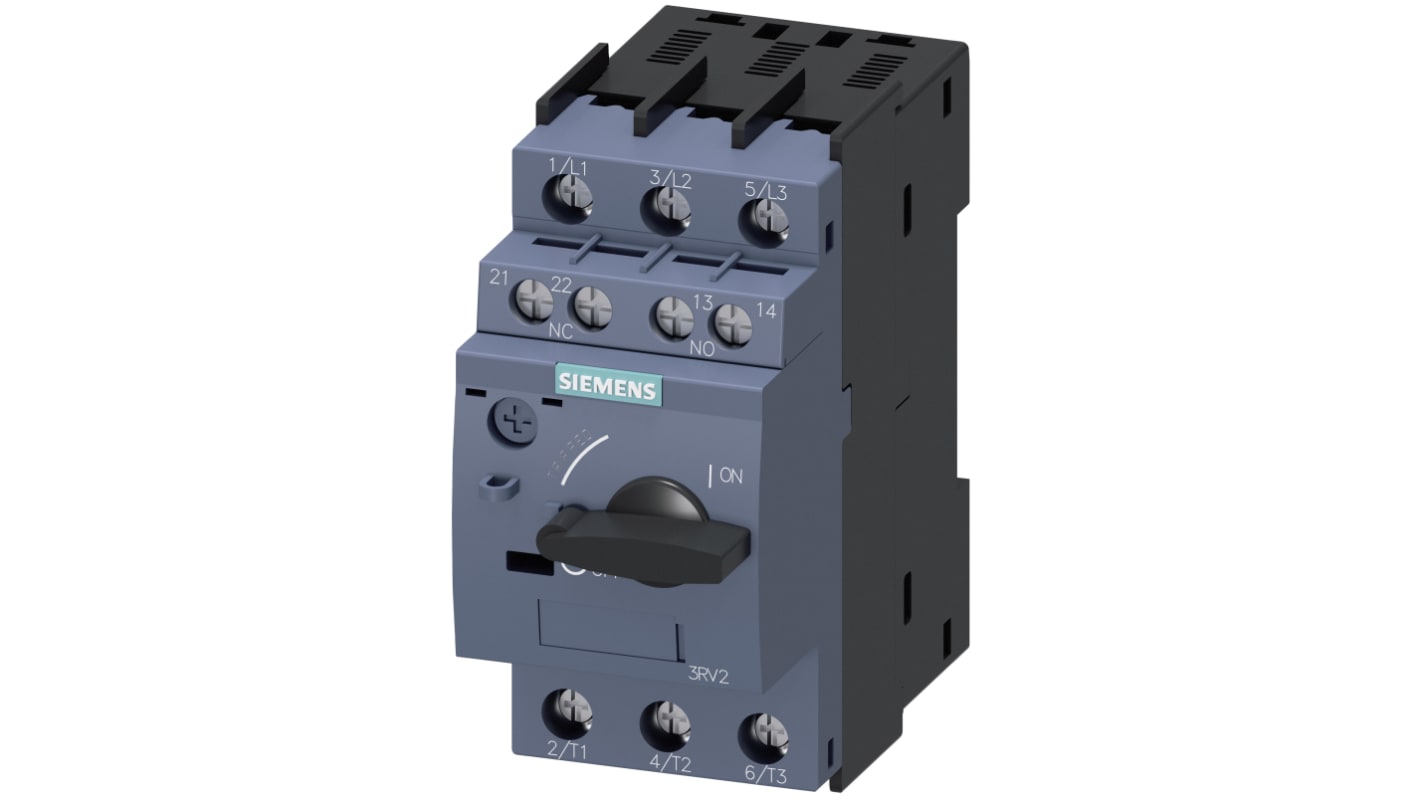

Siemens 4.5 → 6.3 A SIRIUS 3RV Motor Protection Circuit Breaker
- RS Stock No.:
- 124-3099
- Distrelec Article No.:
- 303-97-071
- Mfr. Part No.:
- 3RV2011-1GA15
- Brand:
- Siemens
Subtotal (1 unit)*
£78.33
(exc. VAT)
£94.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.33 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-3099
- Distrelec Article No.:
- 303-97-071
- Mfr. Part No.:
- 3RV2011-1GA15
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 4.5 → 6.3 A | |
| Range | SIRIUS 3RV | |
| Motor Protection Component | Circuit Breaker | |
| Series | 3RV2 | |
| Overall Length | 45mm | |
| Overall Width | 96.9mm | |
| Overall Depth | 97mm | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 690 V | |
| Maximum Operating Temperature | +60°C | |
| Terminal Type | Screw | |
| Breaking Capacity | 100 kA | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Number of Poles | 3 | |
| Better World Product | Yes | |
| Size | S00 | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 4.5 → 6.3 A | ||
Range SIRIUS 3RV | ||
Motor Protection Component Circuit Breaker | ||
Series 3RV2 | ||
Overall Length 45mm | ||
Overall Width 96.9mm | ||
Overall Depth 97mm | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 690 V | ||
Maximum Operating Temperature +60°C | ||
Terminal Type Screw | ||
Breaking Capacity 100 kA | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Number of Poles 3 | ||
Better World Product Yes | ||
Size S00 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Siemens Motor Protection Circuit Breaker, 4.5 to 6.3A Current Rating - SIRIUS Innovation Series - 3RV2011-1GA15
Keep your electrical circuit running safely with this motor protection circuit breaker from Siemens. The device cuts off a circuit when the current jumps above safe parameters and it also protects against short circuits. Screw terminals ensure durable wiring connections that can withstand vibration and shock. It's finger-safe, so there's less risk of electrical shock if you accidentally touch the unit. This motor protection circuit breaker is suitable for switching and protecting three-phase motors in industrial applications, like those used in load feeders. Thanks to a mechanical lifespan of 100,000 hours, this is a long-lasting and reliable option.
• IP20 (ingress protection) rated enclosure is protected against objects larger than 12mm
• Option to feed main current electrical connectors from the top or bottom for versatility
• Compact dimensions of 45 (length) x 96.9 (width) x 97mm (depth) allows for installation in small enclosures
• Option to feed main current electrical connectors from the top or bottom for versatility
• Compact dimensions of 45 (length) x 96.9 (width) x 97mm (depth) allows for installation in small enclosures
How long does it take for this motor protection circuit breaker to trip a fault?
This is a Class 10 circuit breaker, which means it trips a fault within 10 seconds or less.
