Siemens 93A SIRIUS Motor Protection Circuit Breaker, 20V, 690 V, 60 °C, -20 °C
- RS Stock No.:
- 160-013
- Distrelec Article No.:
- 301-33-360
- Mfr. Part No.:
- 3RV2042-4YA10
- Brand:
- Siemens
Subtotal (1 unit)*
£431.64
(exc. VAT)
£517.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £431.64 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 160-013
- Distrelec Article No.:
- 301-33-360
- Mfr. Part No.:
- 3RV2042-4YA10
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Motor Protection Circuit Breaker | |
| Current Rating | 93A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 20, 690V | |
| Motor Protection System | 3RV2 | |
| Series | SIRIUS | |
| Overall Length | 165mm | |
| Overall Width | 70mm | |
| Overall Depth | 176mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CCC, UL, UKCA, CE, RoHS | |
| Number of Poles | 3 | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Motor Protection Circuit Breaker | ||
Current Rating 93A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 20, 690V | ||
Motor Protection System 3RV2 | ||
Series SIRIUS | ||
Overall Length 165mm | ||
Overall Width 70mm | ||
Overall Depth 176mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CCC, UL, UKCA, CE, RoHS | ||
Number of Poles 3 | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||

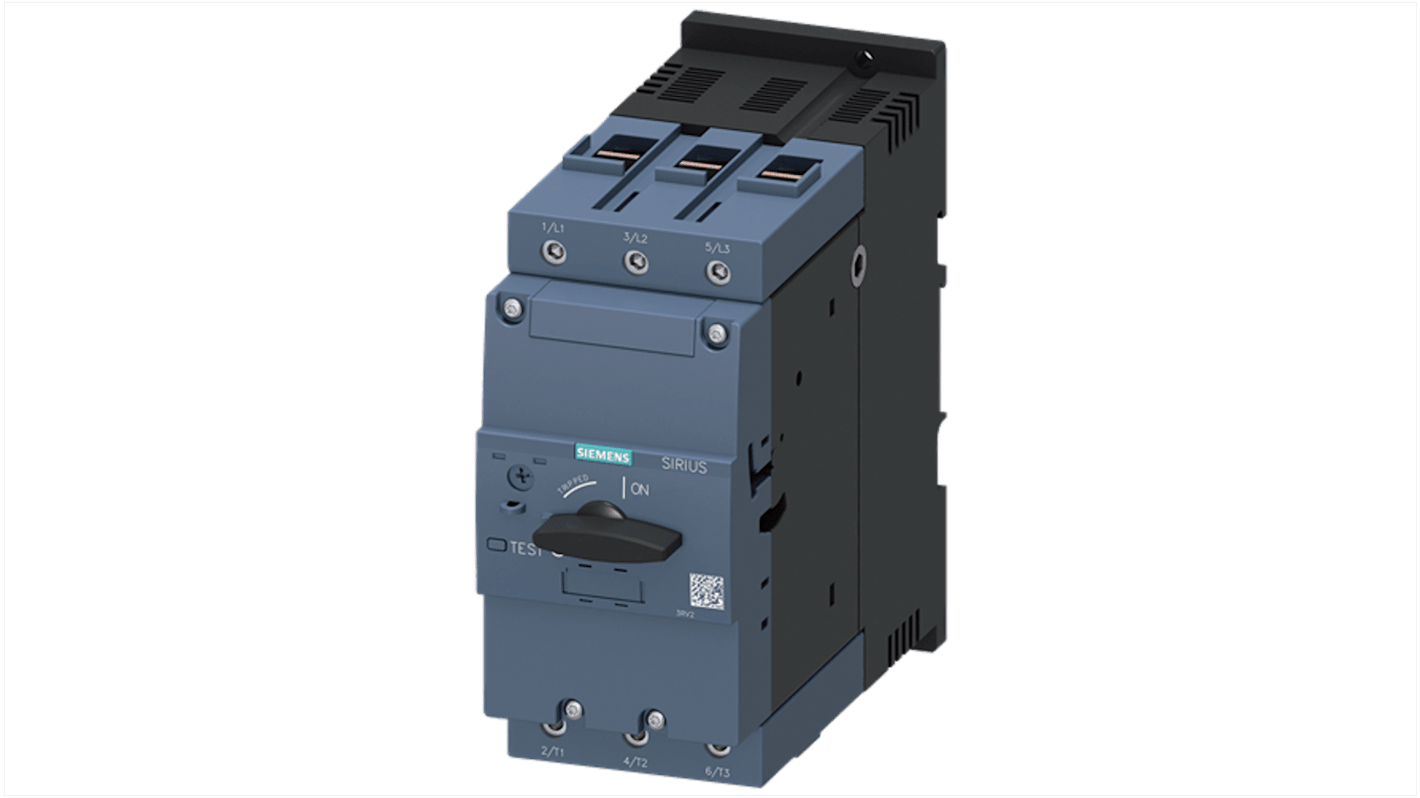

The Siemens circuit breaker is specifically designed for motor protection, ensuring reliable performance in demanding conditions. With its robust CLASS 10 A-release, it manages currents between 75 and 93 A effortlessly. This product boasts a high switching capacity of 100 kA, providing peace of mind when it comes to short-circuit safety. The versatility in its operating voltage, accommodating up to 690 V, caters to a wide range of applications. The user-friendly design means installation is straightforward, ensuring a secure fit on DIN rails. This circuit breaker not only meets compliance standards but also integrates seamlessly into your existing setups, heralding efficiency with its thermal overload release functionality.
Enhanced short-circuit protection
High mechanical and electrical life
Broad temperature range operation
Screw and snap-on mounting
Finger-safe design
