Better World

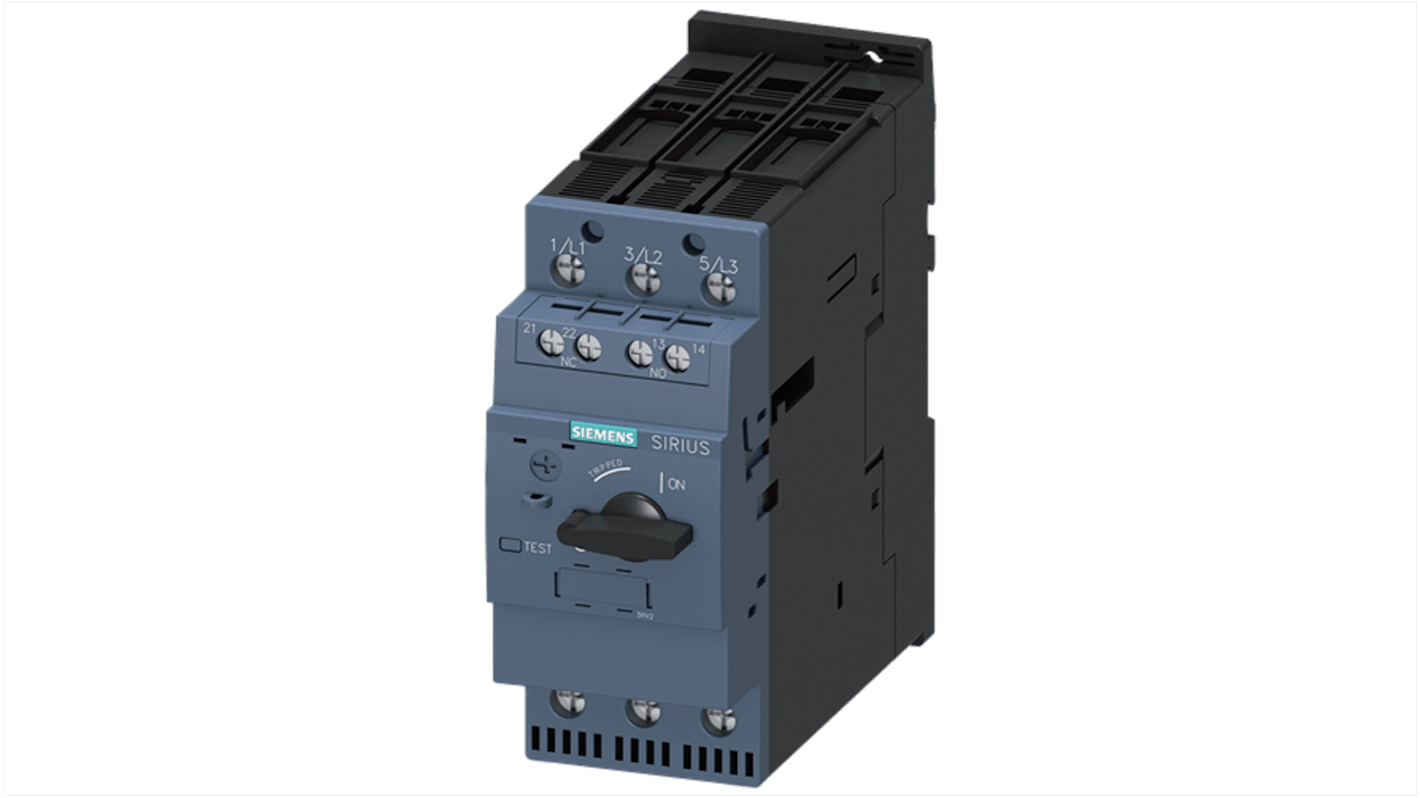

Siemens 59A SIRIUS 3RV2 Motor Protection Circuit Breaker, 20V, 690 V, 60 °C, -20 °C
- RS Stock No.:
- 159-697
- Mfr. Part No.:
- 3RV2032-4XA15
- Brand:
- Siemens
Subtotal (1 unit)*
£353.46
(exc. VAT)
£424.15
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £353.46 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 159-697
- Mfr. Part No.:
- 3RV2032-4XA15
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 59A | |
| Product Type | Motor Protection Circuit Breaker | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 20, 690V | |
| Motor Protection System | 3RV2 | |
| Series | SIRIUS 3RV2 | |
| Overall Length | 140mm | |
| Overall Width | 55mm | |
| IP Rating | IP20 | |
| Overall Depth | 149mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UKCA, RoHS, RINA, PRS, LRS, ISO 13849, ABS, ATEX, CCC, CE, DNV, EAC, EPD, IECEX, IEC 61508, VDE, UL | |
| Better World Claim | Extended Product Life, Low Carbon Manufacture | |
| Number of Poles | 3 | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 59A | ||
Product Type Motor Protection Circuit Breaker | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 20, 690V | ||
Motor Protection System 3RV2 | ||
Series SIRIUS 3RV2 | ||
Overall Length 140mm | ||
Overall Width 55mm | ||
IP Rating IP20 | ||
Overall Depth 149mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UKCA, RoHS, RINA, PRS, LRS, ISO 13849, ABS, ATEX, CCC, CE, DNV, EAC, EPD, IECEX, IEC 61508, VDE, UL | ||
Better World Claim Extended Product Life, Low Carbon Manufacture | ||
Number of Poles 3 | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE
The Siemens circuit breaker is designed for motor protection and ensures optimal safety and performance in demanding applications. The device offers enhanced switching capacity with a robust design to meet industry standards. With features such as a thermal overload release and multiple auxiliary switch configurations, it’s engineered for applications requiring durable and reliable circuit protection. The operational versatility combined with professional-grade specifications makes it an excellent choice to safeguard machinery against faults. Its compact design allows for easy installation on standard DIN rails, making it suitable for various environments without compromising functionality or safety.
Compact size optimises panel space usage
Flexible installation options for various configurations
Exceptional durability with 30 million cycle service life
Auxiliary switch capabilities for expanded functionality
Resilient insulation rated at 690 V
Handles temperatures from -25 to +60 °C
