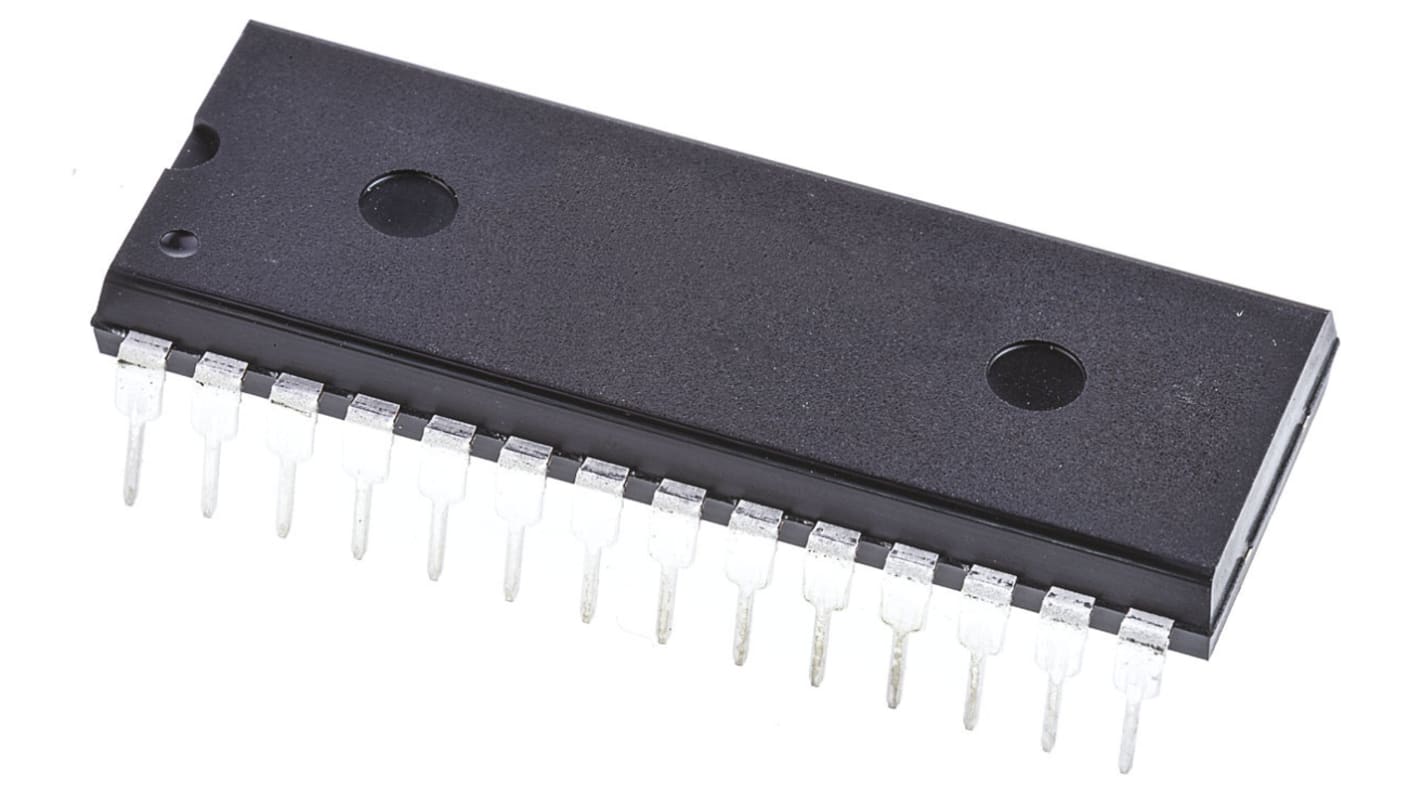

onsemi LV8772-E, Stepper Motor Driver IC, 32 V 2.5A 28-Pin, PDIP
- RS Stock No.:
- 821-3068P
- Mfr. Part No.:
- LV8772-E
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 821-3068P
- Mfr. Part No.:
- LV8772-E
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | Stepper | |
| Output Configuration | Bipolar | |
| Maximum IGBT Collector Current | 2.5A | |
| Maximum Collector Emitter Voltage | 32 V | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 28 | |
| Maximum Operating Supply Voltage | 32 V | |
| Minimum Operating Supply Voltage | 9 V | |
| Typical Switching Frequency | 150MHz | |
| Minimum Operating Temperature | -20 °C | |
| Dimensions | 26.75 x 11.2 x 4mm | |
| Width | 11.2mm | |
| Height | 4mm | |
| Maximum Operating Temperature | +85 °C | |
| Length | 26.75mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type Stepper | ||
Output Configuration Bipolar | ||
Maximum IGBT Collector Current 2.5A | ||
Maximum Collector Emitter Voltage 32 V | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 28 | ||
Maximum Operating Supply Voltage 32 V | ||
Minimum Operating Supply Voltage 9 V | ||
Typical Switching Frequency 150MHz | ||
Minimum Operating Temperature -20 °C | ||
Dimensions 26.75 x 11.2 x 4mm | ||
Width 11.2mm | ||
Height 4mm | ||
Maximum Operating Temperature +85 °C | ||
Length 26.75mm | ||
