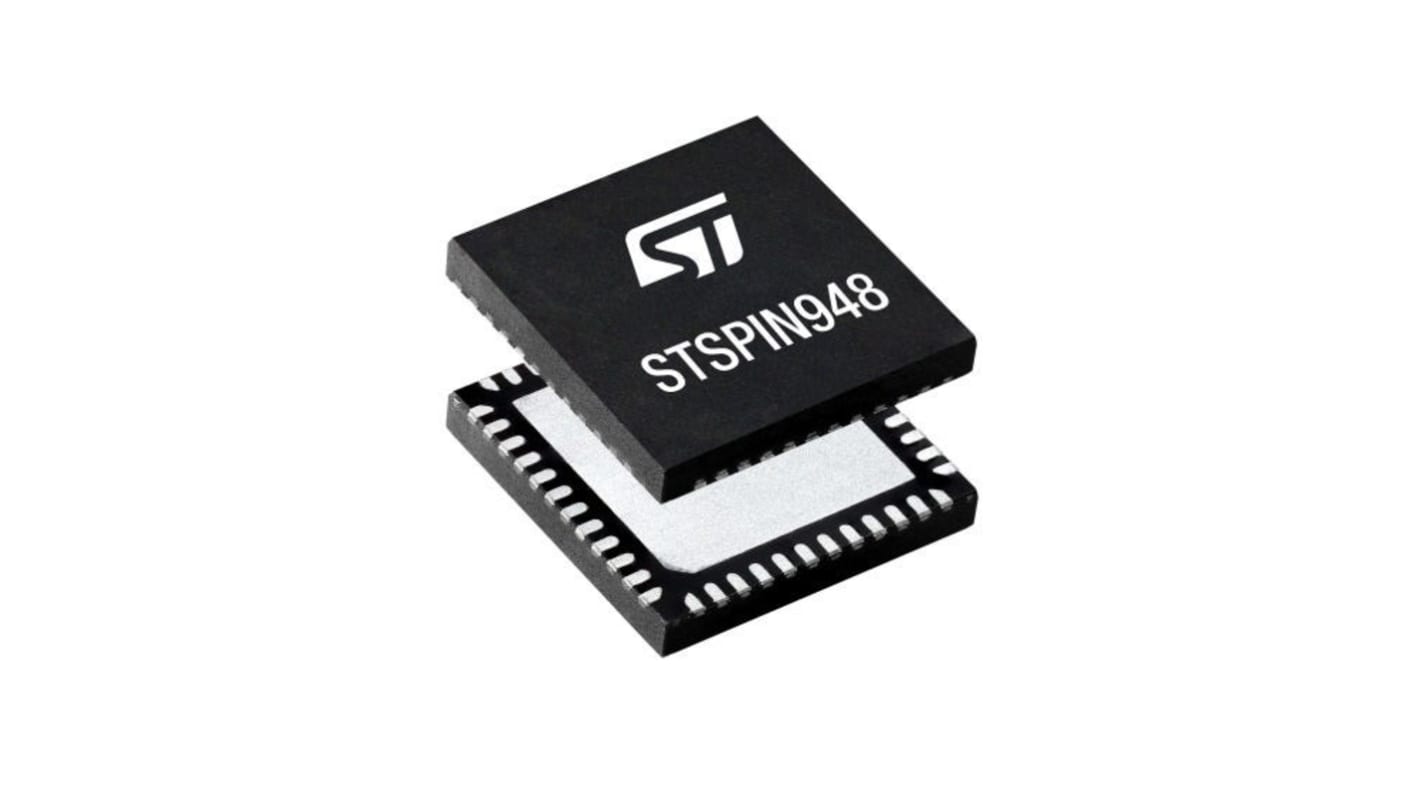

STMicroelectronics STSPIN948TR, DC Motor Motor Driver IC 48-Pin, VFQFPN48

View all Motor Driver ICs
Bulk discount available

Subtotal (1 unit)*

£3.18

(exc. VAT)

£3.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£3.18
25 - 49£2.86
50 - 99£2.57
100 - 249£2.31
250 +£2.04

*price indicative

Packaging Options:
RS Stock No.:
287-7050
Mfr. Part No.:
STSPIN948TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

DC Motor

Output Configuration

Dual Full Bridge

Configuration

Dual Bridge

Maximum Output Current

4.5A

Maximum Supply Voltage

58 V

Package Type

VFQFPN48

Pin Count

48

COO (Country of Origin):
TH
The STMicroelectronics Full bridge driver is used for brushed DC motors or bipolar stepper motors. The power stage is designed with high dynamic performance, allowing to achieve high frequency PWM control with precise duty cycle. Each full bridge is totally independent with a current limiter with adjustable threshold and OFF time with slow or mixed decay selection.

Adjustable power MOS slew rate
Integrated amplifiers
Adjustable OFF time with slow or mixed decay
Low consumption standby
