STMicroelectronics STEVAL-CTM015V1, 3 Phase Motor Evaluation Board 30 A, TO-263

View all Motor Driver ICs

Subtotal (1 unit)*

£242.77

(exc. VAT)

£291.32

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£242.77

*price indicative

RS Stock No.:
287-6266
Mfr. Part No.:
STEVAL-CTM015V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

3 Phase Motor

Product Type

Evaluation Board

Configuration

3 Phase

Maximum IGBT Collector Current

30A

Package Type

TO-263

Maximum Supply Voltage

400V dc

Standards/Approvals

No

Inverter Power Rating

1kW

Automotive Standard

No

COO (Country of Origin):
IT

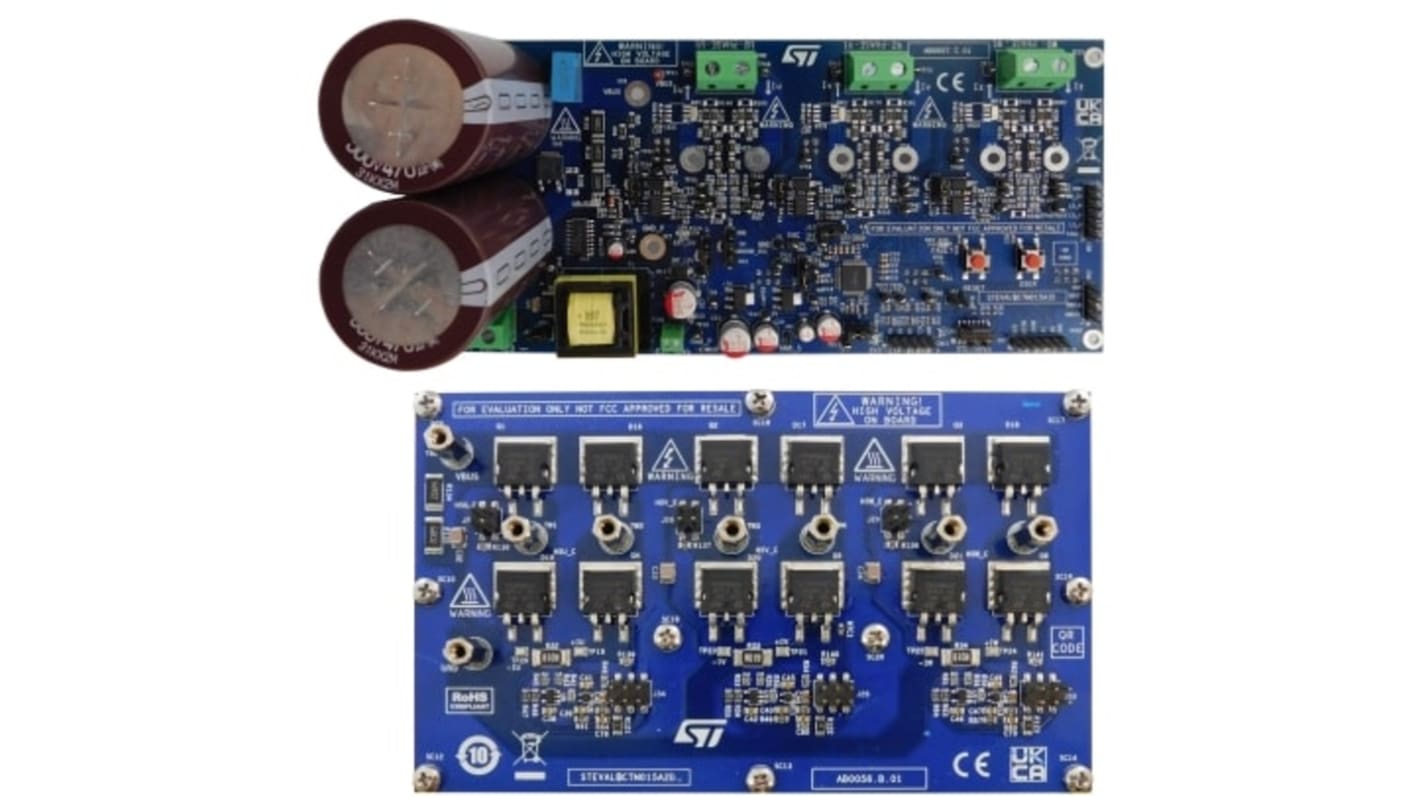

The STMicroelectronics evaluation kit provides a complete solution for a three-phase switched reluctance motor (SRM) drive based on asymmetric half bridge flexible converter topology. The power board features an insulated metal substrate (IMS), NTCs for thermal protection, decoupling gate resistors for each IGBT, LMV331I comparators for overcurrent protection, STGB30H60DFB trench gate field-stop, and STTH15RQ06 Turbo 2 soft ultrafast recovery diode.

Insulated metal substrate

Decoupling gate resistors

NTC sensing network for overheat protection
