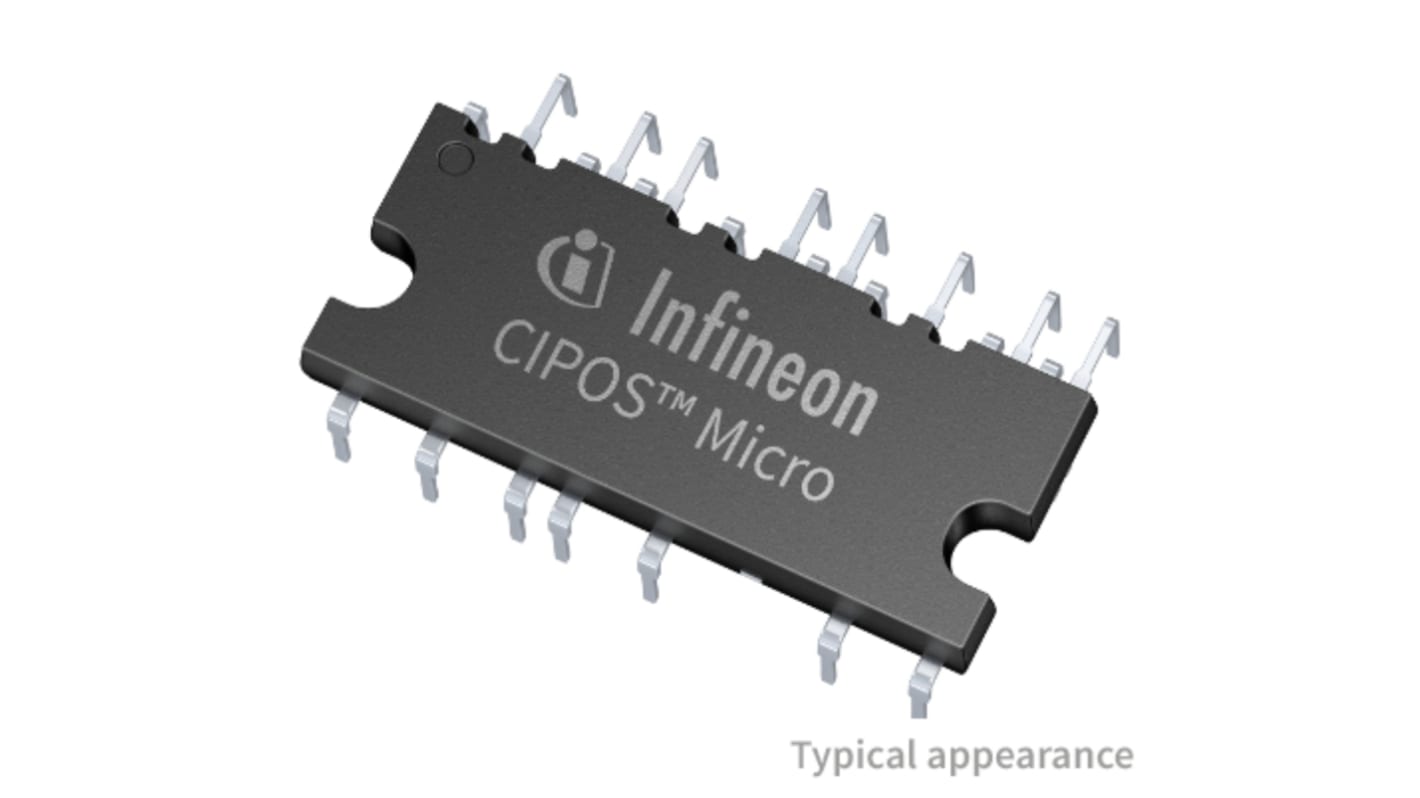

Infineon IM241S6T2BAKMA1, AC Motor Intelligent Power Module, 1.78 V 0.5A
- RS Stock No.:
- 254-7224
- Mfr. Part No.:
- IM241S6T2BAKMA1
- Brand:
- Infineon
Subtotal (1 tube of 15 units)*
£48.84
(exc. VAT)
£58.605
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
- Plus 999,999,765 unit(s) shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
15 + | £3.256 | £48.84 |
*price indicative
- RS Stock No.:
- 254-7224
- Mfr. Part No.:
- IM241S6T2BAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Motor Type | AC Motor | |
Output Configuration | Half Bridge | |
Configuration | 3 Phase | |
Maximum Output Current | 2A | |
Maximum IGBT Collector Current | 0.5A | |
Maximum Supply Voltage | 600 V | |
Maximum Collector Emitter Voltage | 1.78 V | |
Select all | ||
---|---|---|
Brand Infineon | ||
Motor Type AC Motor | ||
Output Configuration Half Bridge | ||
Configuration 3 Phase | ||
Maximum Output Current 2A | ||
Maximum IGBT Collector Current 0.5A | ||
Maximum Supply Voltage 600 V | ||
Maximum Collector Emitter Voltage 1.78 V | ||
The Infineons IM series of a 3-phase intelligent power module designed for high-efficiency appliance motor drives such as fans and pumps. This IPM is available in both fast and slow speeds for low loss and low EMI operation respectively. It has a voltage rating of 600V 3-phase inverter including gate drivers & bootstrap function.
Open-emitter for single and leg-shunt current sensing
Accurate overcurrent shutdown of ±5%
Fault reporting and programmable fault clear
Advanced input filter with shoot-through protection
Accurate overcurrent shutdown of ±5%
Fault reporting and programmable fault clear
Advanced input filter with shoot-through protection
