Infineon, AC Motor Intelligent Power Module, 1.78 V 0.5 A 29-Pin
- RS Stock No.:
- 254-7219
- Mfr. Part No.:
- IM241S6S1BAUMA1
- Brand:
- Infineon
Subtotal (1 reel of 500 units)*
£1,380.00
(exc. VAT)
£1,655.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £2.76 | £1,380.00 |
*price indicative
- RS Stock No.:
- 254-7219
- Mfr. Part No.:
- IM241S6S1BAUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Motor Type | AC Motor | |
| Product Type | Intelligent Power Module | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 0.5A | |
| Maximum Collector Emitter Voltage Vceo | 1.78V | |
| Mount Type | Surface | |
| Pin Count | 29 | |
| Output Current | 2A | |
| Minimum Supply Voltage | 13.5V | |
| Maximum Supply Voltage | 600V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 29mm | |
| Height | 3.5mm | |
| Standards/Approvals | JEDEC47/20/22 | |
| Series | IM241 | |
| Automotive Standard | No | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Motor Type AC Motor | ||
Product Type Intelligent Power Module | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 0.5A | ||
Maximum Collector Emitter Voltage Vceo 1.78V | ||
Mount Type Surface | ||
Pin Count 29 | ||
Output Current 2A | ||
Minimum Supply Voltage 13.5V | ||
Maximum Supply Voltage 600V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 29mm | ||
Height 3.5mm | ||
Standards/Approvals JEDEC47/20/22 | ||
Series IM241 | ||
Automotive Standard No | ||
Supply Current 3mA | ||

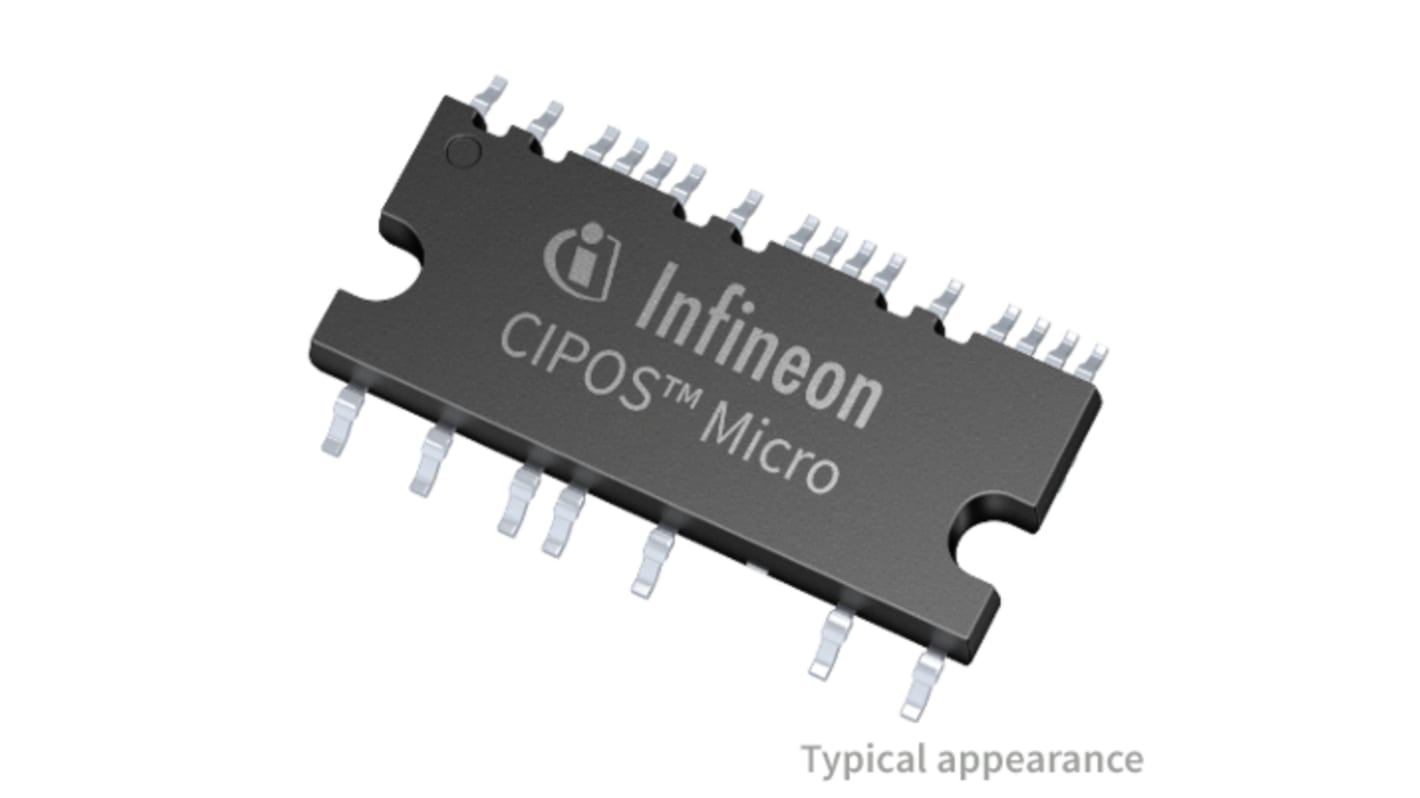

The Infineons IM series of a 3-phase intelligent power module designed for high-efficiency appliance motor drives such as fans and pumps. This IPM is available in both fast and slow speeds for low loss and low EMI operation respectively. It has a voltage rating of 600V 3-phase inverter including gate drivers & bootstrap function.
Open-emitter for single and leg-shunt current sensing
Accurate overcurrent shutdown of ±5%
Fault reporting and programmable fault clear
Advanced input filter with shoot-through protection
