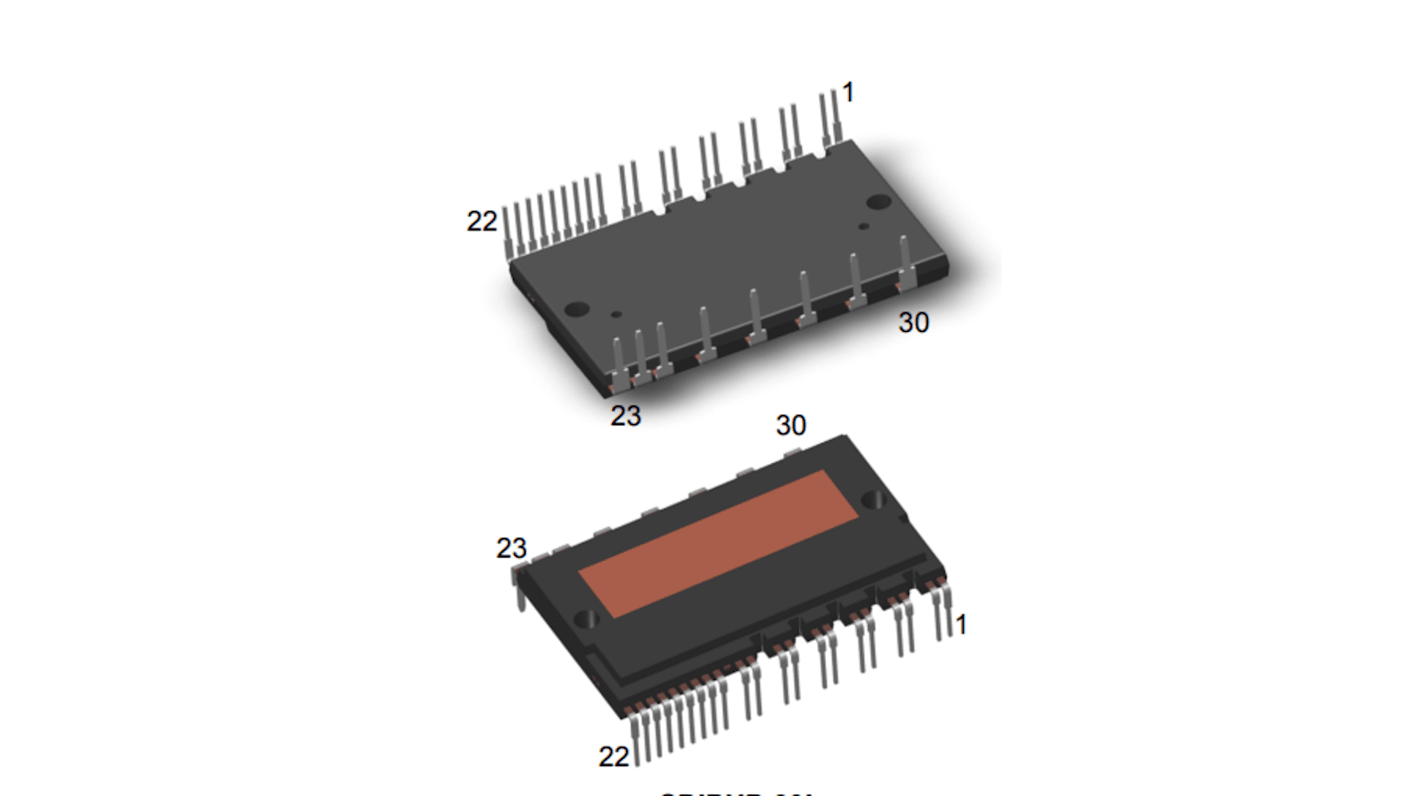

STMicroelectronics STGIK50CH65T, AC Induction Motor Driver IC, 650 V 50 A 30-Pin, SDIP

View all Motor Driver ICs
Bulk discount available

Subtotal (1 unit)*

£37.92

(exc. VAT)

£45.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 21 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 1£37.92
2 - 4£36.03
5 - 9£33.93
10 +£33.07

*price indicative

Packaging Options:
RS Stock No.:
235-5445
Mfr. Part No.:
STGIK50CH65T
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Motor Driver IC

Motor Type

AC Induction

Configuration

3 Phase

Maximum IGBT Collector Current

50A

Maximum Collector Emitter Voltage Vceo

650V

Mount Type

Through Hole

Package Type

SDIP

Output Current

1mA

Pin Count

30

Minimum Supply Voltage

-0.5V

Maximum Supply Voltage

500V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Standards/Approvals

No

Height

12.7mm

Series

STGIK50CH65T

Length

52.5mm

Automotive Standard

No

The STMicroelectronics SLLIMM high power IPM 3-phase inverter provides a compact, high-performance AC motor drive in a simple, rugged design. It combines driver control with improved short-circuit rugged 650 V trench gate field-stop IGBTs, resulting Ideal for 3-phase inverters motor drives. It has 3.3 V, 5 V TTL/CMOS inputs with hysteresis and 100 kΩ NTC for temperature monitoring.

Under-voltage lockout of gate drivers

Built-in bootstrap diodes

Short-circuit protection

Shutdown input/fault output

Separate open emitter outputs

Comparator for fault protection

Very fast, soft recovery diodes

Fully isolated package

Isolation rating of 2500 Vrms/min

Applications


HVAC

GPI

Servo motor
