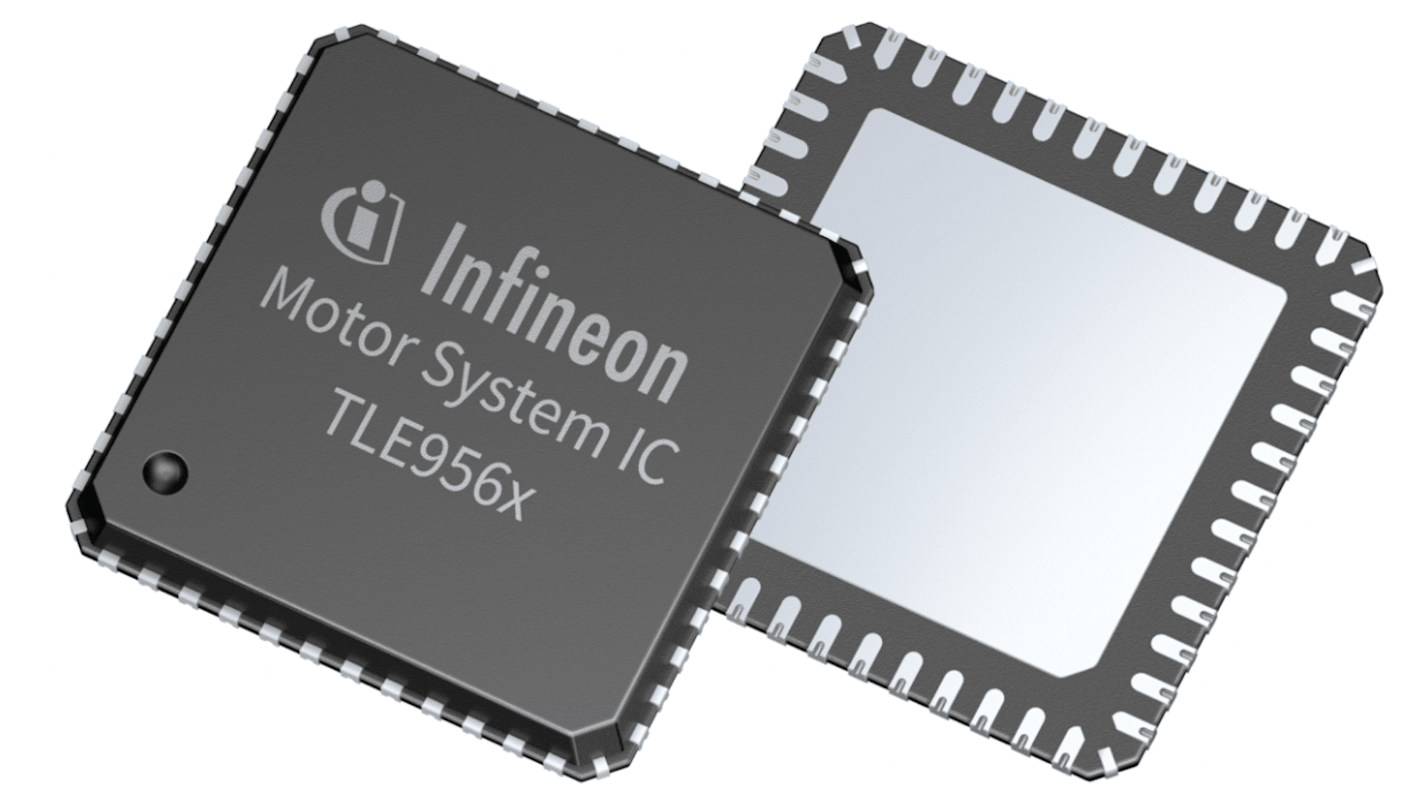

Infineon TLE95603QXXUMA1, DC Motor Driver IC 48-Pin, VQFN-48

View all Motor Driver ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

£14.45

(exc. VAT)

£17.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,950 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£2.89£14.45
25 - 45£2.456£12.28
50 - 120£2.312£11.56
125 - 245£2.138£10.69
250 +£1.994£9.97

*price indicative

Packaging Options:
RS Stock No.:
233-4404
Mfr. Part No.:
TLE95603QXXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Motor Type

DC

Configuration

Single

Output Configuration

Half Bridge

Maximum Output Current

250mA

Maximum Supply Voltage

6 → 28 V

Mounting Type

Surface Mount

Package Type

VQFN-48

Pin Count

48

The Infineon TLE9560-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges and support features in an exposed pad PG-VQFN-48 power package. The device is designed for various motor control automotive applications. To support these applications, the DC Motor System IC provides the main functions, such as a 5V low-dropout voltage regulator one HS-CAN transceiver supporting CAN FD, four half-bridges for DC motor control, and one 32 bit serial peripheral interface (SPI).

Very low quiescent current consumption in Stop Mode and Sleep Mode
Periodic cyclic sense and cyclic wake in Normal Mode, Stop Mode and Sleep Mode
Reset and interrupt output
Drain-source monitoring and open-load detection
Configurable time-out and window watchdog
Over temperature and short circuit protection features
