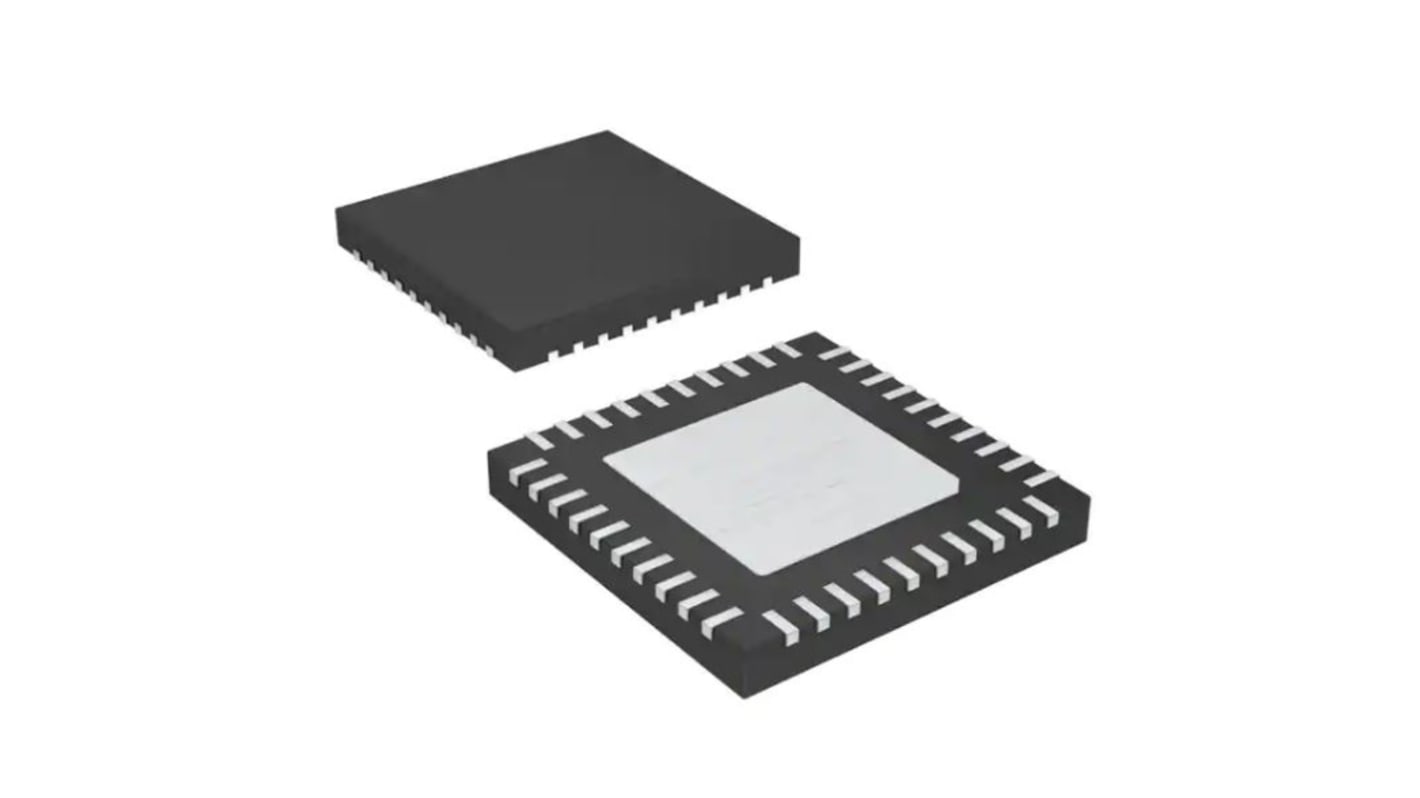

Maxim Integrated, Brushless DC Motor Motor Driver IC 40-Pin, TQFN-EP
- RS Stock No.:
- 190-7410P
- Mfr. Part No.:
- MAX31785ETL+
- Brand:
- Maxim Integrated
Subtotal 2 units (supplied in a tube)*
£6.99
(exc. VAT)
£8.388
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 2 + | £3.495 |
*price indicative
- RS Stock No.:
- 190-7410P
- Mfr. Part No.:
- MAX31785ETL+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Motor Type | Brushless DC Motor | |
| Product Type | Motor Driver IC | |
| Configuration | SD Card | |
| Mount Type | Surface | |
| Package Type | TQFN-EP | |
| Output Current | 8mA | |
| Pin Count | 40 | |
| Maximum Supply Voltage | 2.7V | |
| Minimum Supply Voltage | 0.3V | |
| Typical Switching Frequency | 100kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.75mm | |
| Length | 6.1mm | |
| Series | MAX31785 | |
| Standards/Approvals | RoHS-compliant | |
| Automotive Standard | No | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Motor Type Brushless DC Motor | ||
Product Type Motor Driver IC | ||
Configuration SD Card | ||
Mount Type Surface | ||
Package Type TQFN-EP | ||
Output Current 8mA | ||
Pin Count 40 | ||
Maximum Supply Voltage 2.7V | ||
Minimum Supply Voltage 0.3V | ||
Typical Switching Frequency 100kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 0.75mm | ||
Length 6.1mm | ||
Series MAX31785 | ||
Standards/Approvals RoHS-compliant | ||
Automotive Standard No | ||
Supply Current 3mA | ||
The Maxim MAX31785 is a closed-loop multichannel fan controller. Automatic closed-loop fan control saves system power by operating the fans at the lowest possible speeds. Added benefits of slower fan speeds include lower audible noise, longer fan life, and reduced system maintenance.
Six independent channels of fan control
Fast and slow PWM frequency options
Dual tachometer
