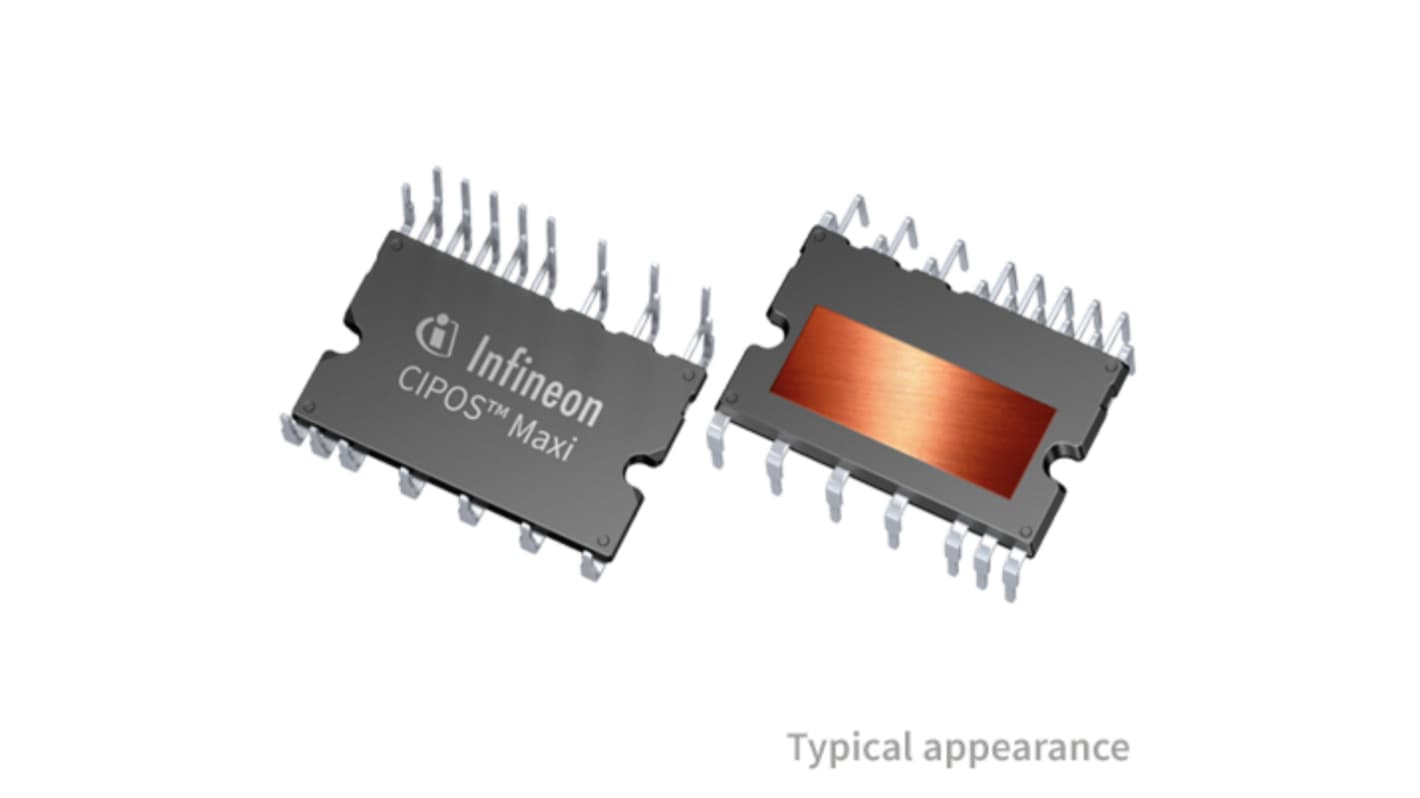

Infineon IM12B10CC1XKMA1, 3-Phase Motor Motor Driver IC, 1200 V 16A 24-Pin, DIP 36x23
- RS Stock No.:
- 349-220
- Mfr. Part No.:
- IM12B10CC1XKMA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 349-220
- Mfr. Part No.:
- IM12B10CC1XKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Motor Type | 3-Phase Motor | |
Configuration | 3 Phase | |
Output Configuration | 3 Phase | |
Maximum IGBT Collector Current | 16A | |
Maximum Output Current | 10A | |
Maximum Supply Voltage | 1200 V | |
Maximum Collector Emitter Voltage | 1200 V | |
Package Type | DIP 36x23 | |
Pin Count | 24 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Motor Type 3-Phase Motor | ||
Configuration 3 Phase | ||
Output Configuration 3 Phase | ||
Maximum IGBT Collector Current 16A | ||
Maximum Output Current 10A | ||
Maximum Supply Voltage 1200 V | ||
Maximum Collector Emitter Voltage 1200 V | ||
Package Type DIP 36x23 | ||
Pin Count 24 | ||
- COO (Country of Origin):
- KR
The Infineon CIPOS Maxi 1200 V 10 A three phase IGBT7 based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC, active filters, and etc.
Over current shutdown
Under voltage lockout
All 6 switches turn off during protection
Temperature monitoring
Cross conduction prevention
UL certified
Under voltage lockout
All 6 switches turn off during protection
Temperature monitoring
Cross conduction prevention
UL certified
