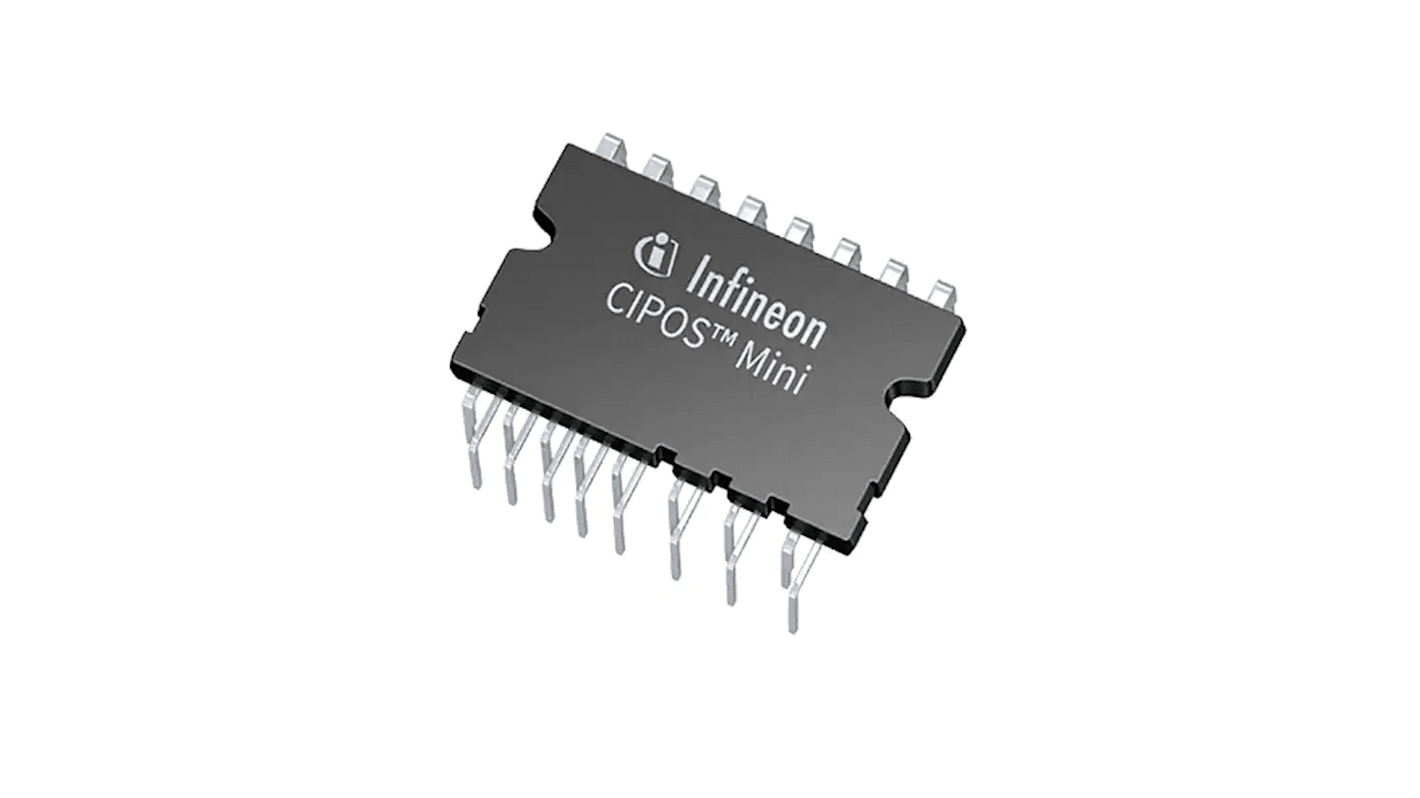

Infineon IM523X6AXKMA1, AC Motor Intelligent Power Module, 2.85 V ±34A
- RS Stock No.:
- 260-1197
- Mfr. Part No.:
- IM523X6AXKMA1
- Brand:
- Infineon
Subtotal (1 tube of 280 units)*
£1,478.40
(exc. VAT)
£1,775.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
280 + | £5.28 | £1,478.40 |
*price indicative
- RS Stock No.:
- 260-1197
- Mfr. Part No.:
- IM523X6AXKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Motor Type | AC Motor | |
Configuration | 3 Phase | |
Maximum Output Current | 20A | |
Maximum IGBT Collector Current | ±34A | |
Maximum Supply Voltage | 600 V | |
Maximum Collector Emitter Voltage | 2.85 V | |
Select all | ||
---|---|---|
Brand Infineon | ||
Motor Type AC Motor | ||
Configuration 3 Phase | ||
Maximum Output Current 20A | ||
Maximum IGBT Collector Current ±34A | ||
Maximum Supply Voltage 600 V | ||
Maximum Collector Emitter Voltage 2.85 V | ||
The Infineon CIPOS IM523 product family offers the chance for integrating various power and control components to increase reliability and optimize PCB size and system cost. It is designed to control three-phase motors in variable speed drives. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also less EMI and overload protection. To deliver excellent electrical performance, Infineons leading-edge RC-Drives IGBTs are combined with an optimized SOI gate driver.
Fully isolated dual in-line moulded module
Lead-free terminal plating
RoHS compliant
Overcurrent shutdown
Built-in NTC thermistor for temperature monitor
Sleep function
Lead-free terminal plating
RoHS compliant
Overcurrent shutdown
Built-in NTC thermistor for temperature monitor
Sleep function
