STMicroelectronics L6206QTR, Stepper, DC Motor Motor Driver IC 48-Pin, VFQFPN-48

View all Motor Driver ICs
Bulk discount available

Subtotal (1 tape of 2 units)*

£5.28

(exc. VAT)

£6.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
2 - 18£2.64£5.28
20 - 198£2.38£4.76
200 +£2.19£4.38

*price indicative

Packaging Options:
RS Stock No.:
152-005
Mfr. Part No.:
L6206QTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Motor Type

Stepper, DC Motor

Product Type

Motor Driver IC

Configuration

Full Bridge

Mount Type

Surface

Package Type

VFQFPN-48

Pin Count

48

Output Current

2.8A

Maximum Supply Voltage

52V

Minimum Supply Voltage

8V

Typical Switching Frequency

100kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS

Series

L6206

Supply Current

10mA

Automotive Standard

No

COO (Country of Origin):
PH

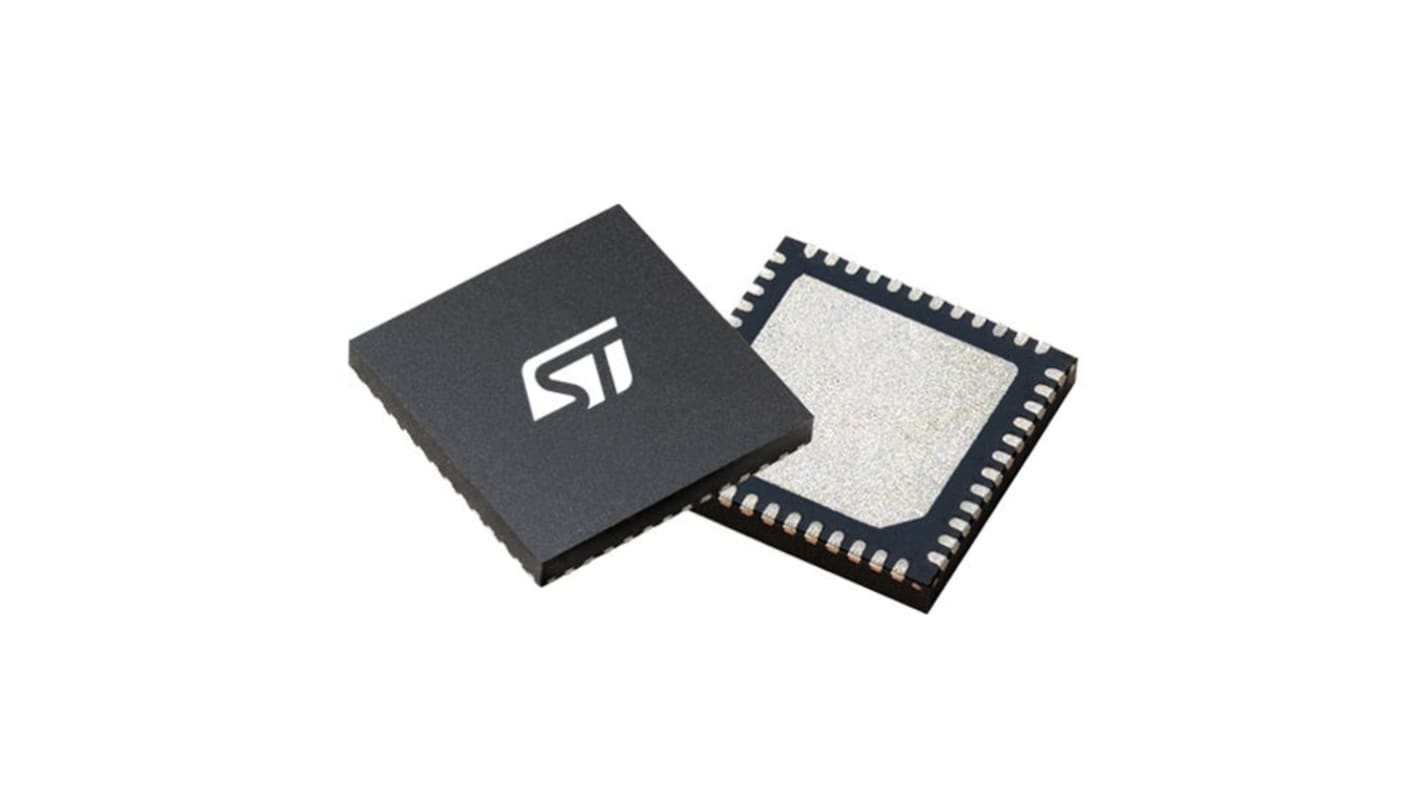

The STMicroelectronics DMOS dual full bridge driver designed for motor control applications, developed using BCD multipower technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in a VFQFPN48 7 x 7 package, the L6206Q device features thermal shutdown and a non-dissipative overcurrent detection on the high side Power MOSFETs Plus a diagnostic output that can be easily used to implement the overcurrent protection.

Programmable high side overcurrent detection and protection

Diagnostic output

Paralleled operation

Cross conduction protection

Thermal shutdown
