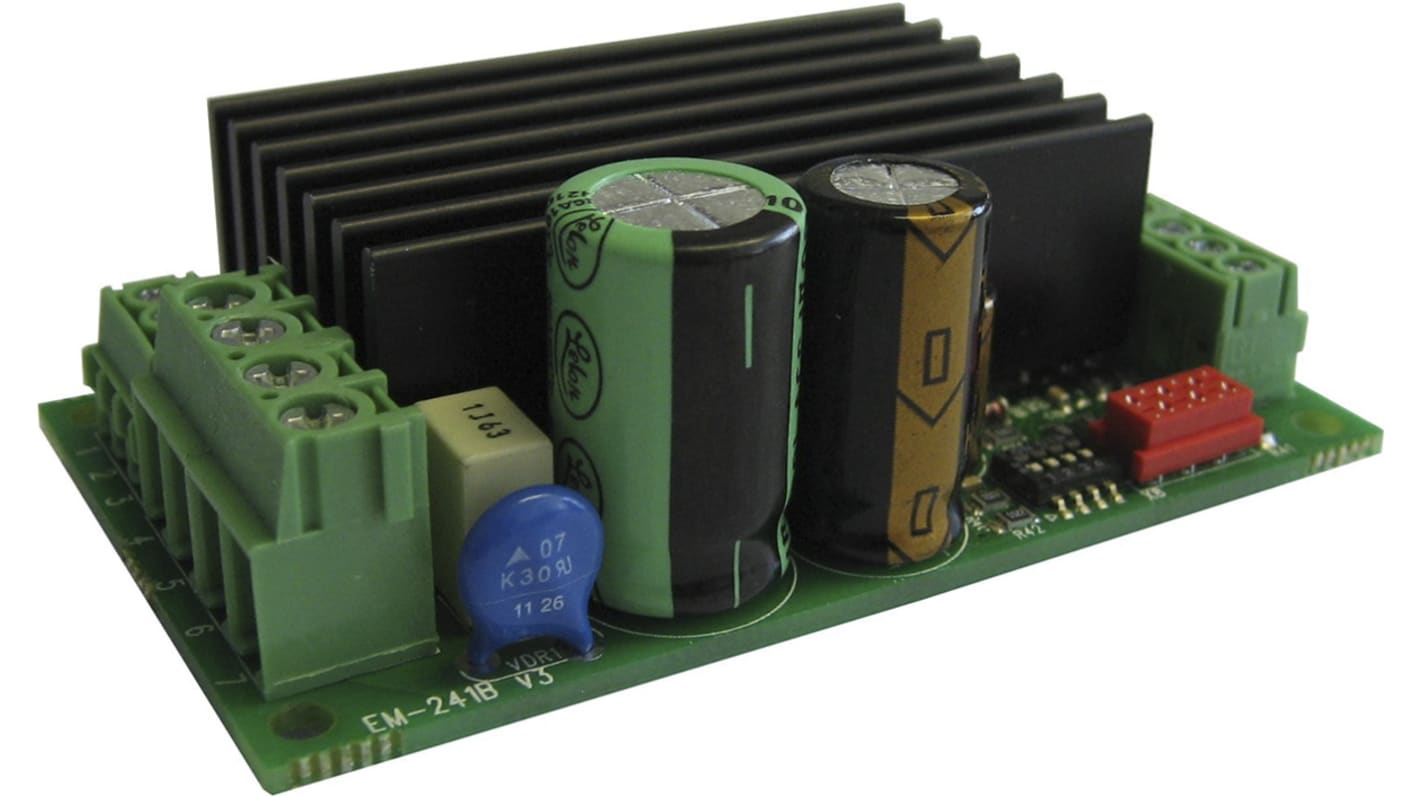

The EM-241C is a full bridge brushed DC-motor starter.It is designed to work in a wide range of applications and offers a host of adjustments to optimise control for each application.The drive has adjustable acceleration and deceleration ramps to produce smooth starts and stops.Adjustable current limit protects motor against overcurrent and can also be used to provide an end-stop on current trip.

This device has also two settable speeds, a useful feature for positioning applications, control inputs are present for basic forward, backward and stop commands, as well as limit switch inputs to define end stops
This device has also two settable speeds, this can be activated by dedicated input. The same input can be used for analogue speed control signal 0-5V
Fault output can indicate current trip, over-current or zero-current conditions. It can also be pulled down to ground to disable the drive, if required
C-version includes wo new parameter: freewheel options for release the rotor of motor, selectable pwm frequency (16kHz pwm being inaudible though current handling capacity is reduced)
There are two selectable control modes, in continuous mode the motor runs as long as the control is active, in impulse mode it will operate from a momentary command
Special settings are also available for start-up kick and auto reverse
For parameters setting there are 3 options: EM-236 interface unit, EM-268 with EmenTool-Lite PC-program and EM-326 with EmenTool-App application for smartphone

12-24Vdc, 10-15A continuous, 25-30A peak
Speed, direction, current limiting, soft start/stop and auto-reverse control
Limit switch inputs for end of travel
Compact and DIN rail mountable
