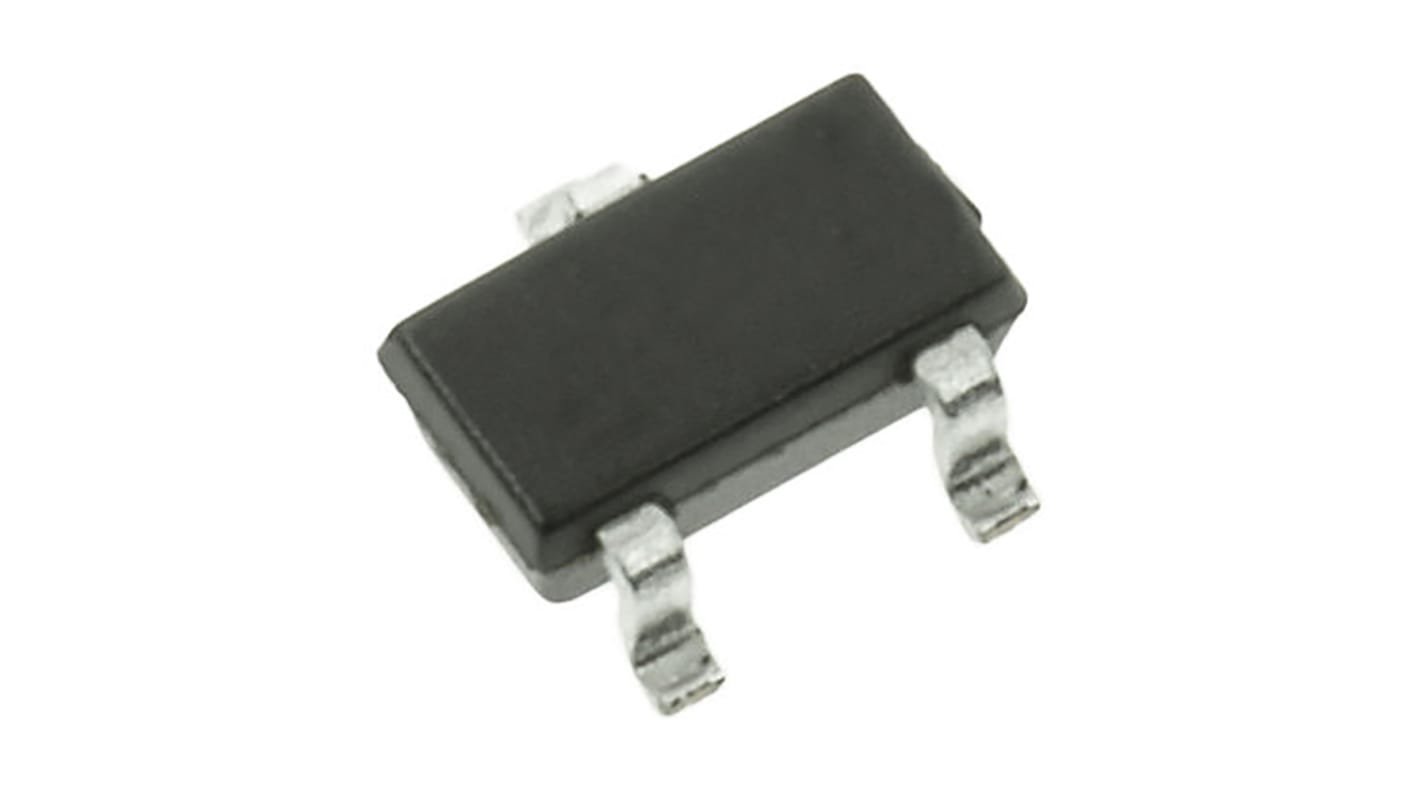

DiodesZetex Surface Mount Hall Effect Sensor Switch, SC-59, 3-Pin
- RS Stock No.:
- 822-8739
- Mfr. Part No.:
- AH183-WG-7
- Brand:
- DiodesZetex
50 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£1.039
(exc. VAT)
£1.247
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £1.039 | £10.39 |
| 100 - 240 | £0.80 | £8.00 |
| 250 - 490 | £0.78 | £7.80 |
| 500 - 990 | £0.759 | £7.59 |
| 1000 + | £0.74 | £7.40 |
| *price indicative | ||
- RS Stock No.:
- 822-8739
- Mfr. Part No.:
- AH183-WG-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
Hall Effect Switches & Latches, Diodes Inc
Hall Effect Sensors, Diodes Inc
A range of sensor ICs from Diodes Inc utilizing the Hall Effect to implement non-contact switching and sensing functions. Hall Effect ICs fall into three basic categories: Linear Sensors, Switches, and Latches. Linear Sensors have a linear analogue output proportional to magnetic field strength whilst Hall Effect Switches and Latches have a switching output and are activated by magnetic field proximity. Latching switches require a magnetic field of opposite polarity to respectively activate and deactivate the switched output. Hall Effect switches are also available with 2-wire current level operation.
Specifications
Attribute | Value |
|---|---|
| Sensor Type | Hall Effect Sensors |
| Mounting Type | Surface Mount |
| Magnetic Type | Unipolar |
| Maximum Operating Supply Voltage | 5 V |
| Minimum Operating Supply Voltage | 2.5 V |
| Package Type | SC-59 |
| Pin Count | 3 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
