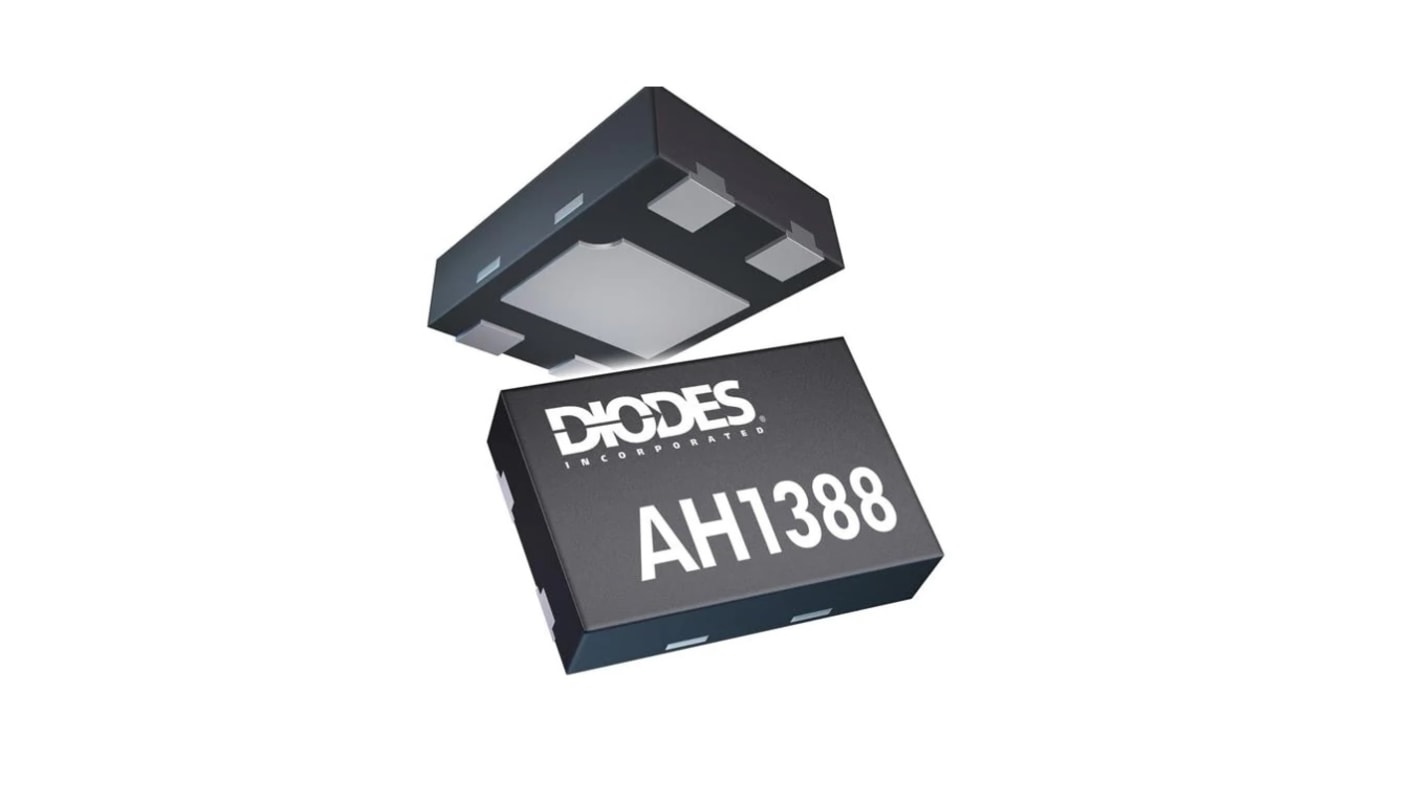

DiodesZetex Surface Hall Effect Sensor 1.6 V 3.6 V, X2-DFN1410-4, 4-Pin

View all Motion Sensor ICs
Bulk discount available

Subtotal (1 pack of 50 units)*

£8.05

(exc. VAT)

£9.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,350 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 - 50£0.161£8.05
100 - 200£0.141£7.05
250 - 450£0.138£6.90
500 - 1950£0.125£6.25
2000 +£0.113£5.65

*price indicative

Packaging Options:
RS Stock No.:
213-9014
Mfr. Part No.:
AH1388-HK4-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Sensor Type

Hall Effect

Product Type

Hall Effect Sensor

Mount Type

Surface

Magnetic Type

Unipolar

Minimum Supply Voltage

1.6V

Package Type

X2-DFN1410-4

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Pin Count

4

Length

1.05mm

Width

1.45 mm

Standards/Approvals

RoHS

Series

AH1388

Height

0.4mm

Automotive Standard

AEC-Q100

Supply Current

0.36μA

The DiodesZetex AH1388 series is a miniature micro power magnetic unipolar hall effect switch IC with dual outputs specifically designed for portable and battery powered consumer equipment to home appliances and industrial applications.

Dual outputs for independent pole detection for design flexibility

Internal pull-up and pull-down capability
