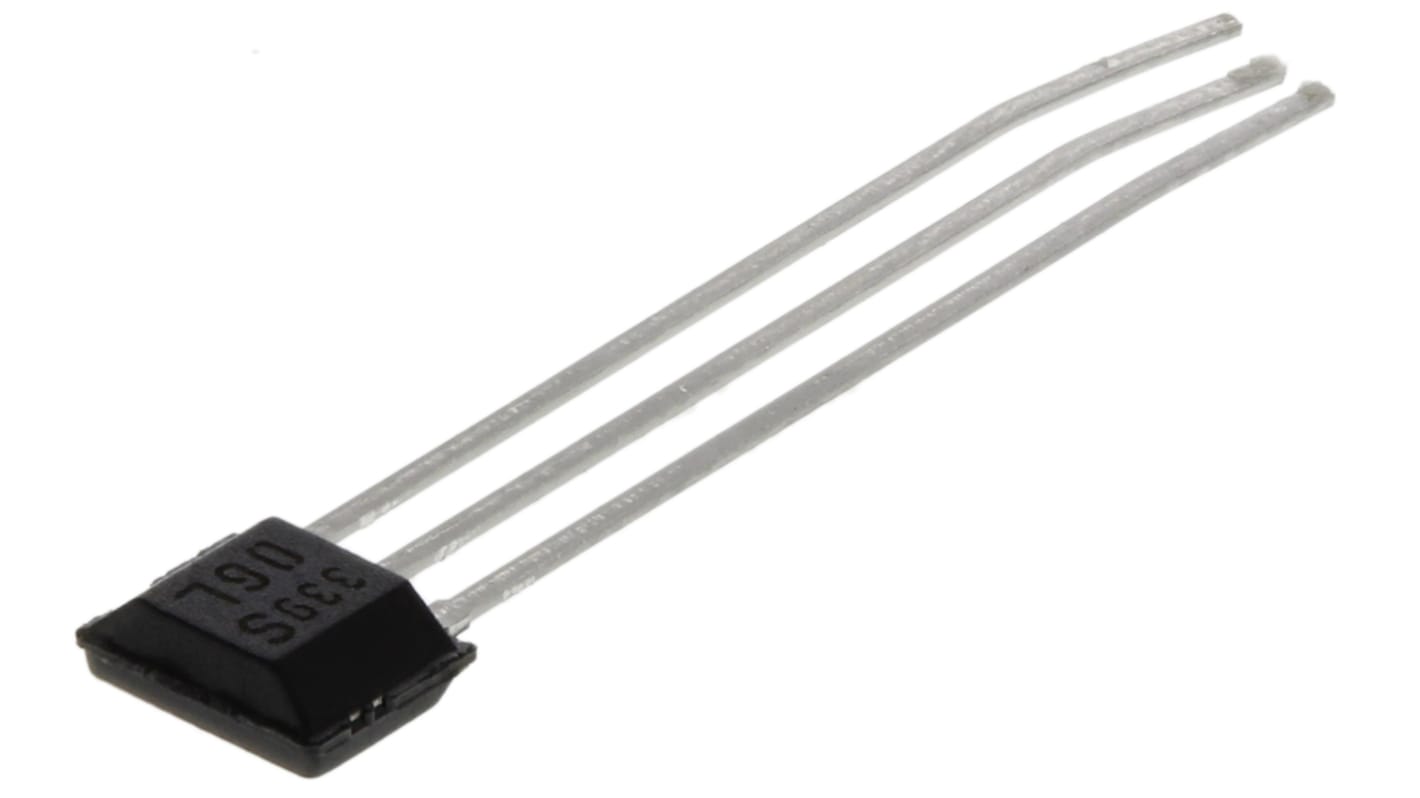

Infineon Through Hole Hall Effect Sensor, SSOP, 3-Pin

RS Stock No.:: 753-3251
Mfr. Part No.:: TLE4906LHALA1
Brand:: Infineon

Infineon Through Hole Hall Effect Sensor, SSOP, 3-Pin

135 In stock - FREE next working day delivery available

90 available from Europe for delivery within 1 working day(s).

Added

Price Each (In a Pack of 5)

£1.078

(exc. VAT)

£1.294

(inc. VAT)

Units	Per unit	Per Pack*
5 - 15	£1.078	£5.39
20 - 95	£0.652	£3.26
100 - 495	£0.596	£2.98
500 - 995	£0.50	£2.50
1000 +	£0.442	£2.21
*price indicative

Packaging Options:

Standard Pack

Production Pack

RS Stock No.:: 753-3251
Mfr. Part No.:: TLE4906LHALA1
Brand:: Infineon

Technical Reference

Datasheet

Build or Request PCB Symbol & Footprint

Legislation and Compliance

Product Details

Hall Effect Switches, Infineon

A range of Hall Effect switching ICs from Infineon available with both standard and latching operation.

Hall Effect Sensors, Infineon

A range of integrated circuits from Infineon utilizing the Hall Effect to implement non-contact switching and sensing functions. Hall Effect ICs fall into three basic categories: Linear Sensors, Switches, and Latches. Linear Sensors have a linear analogue output proportional to magnetic field strength whilst Hall Effect Switches and Latches have a switching output and are activated by magnetic field proximity. Latching switches require a magnetic field of opposite polarity to respectively activate and deactivate the switched output. Hall Effect switches are also available with 2-wire current level operation.

Specifications

Attribute	Value
Sensor Type	Hall Effect Sensors
Mounting Type	Through Hole
Magnetic Type	Unipolar
Maximum Operating Supply Voltage	18 V
Minimum Operating Supply Voltage	2.7 V
Package Type	SSOP
Pin Count	3
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-40 °C
