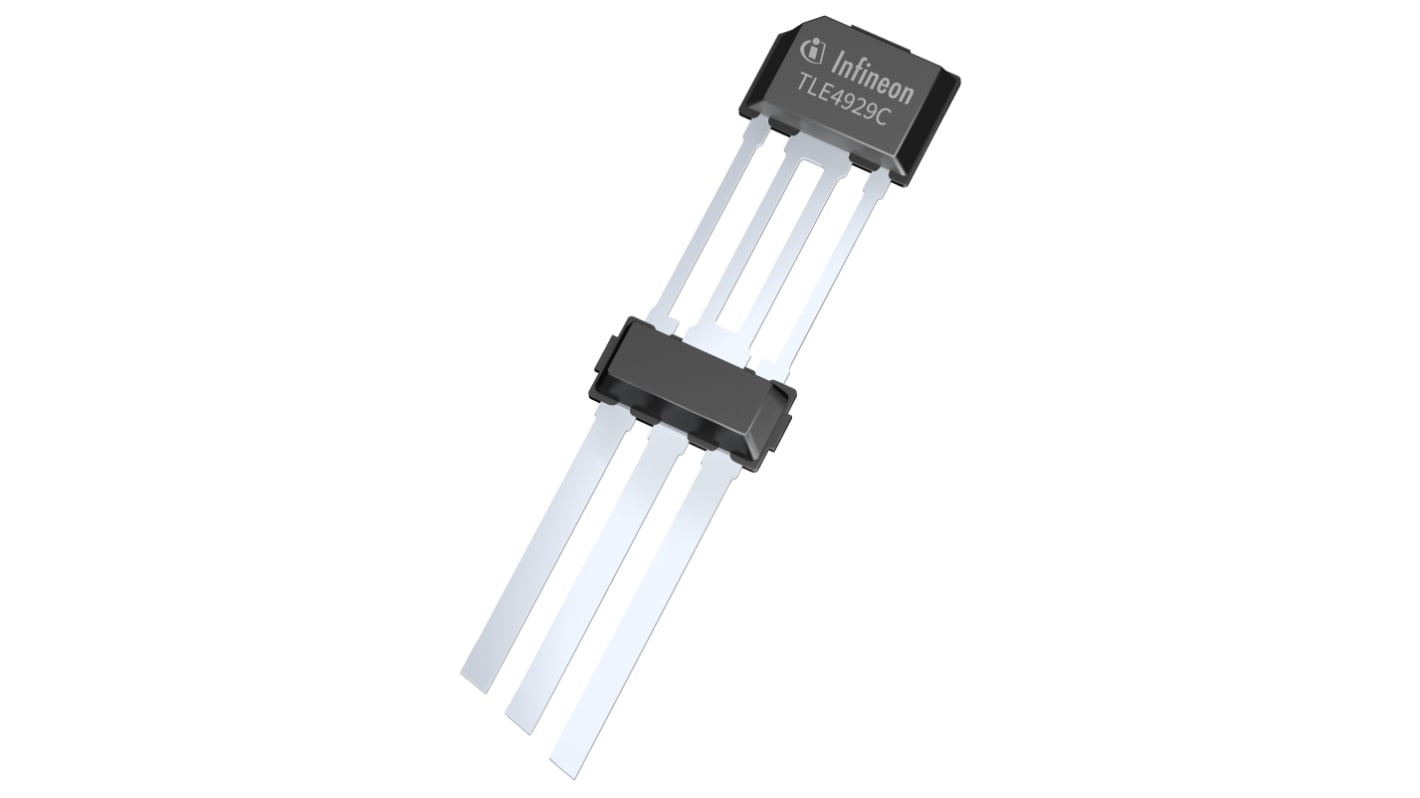

Infineon Through Hole Hall Effect Sensor 2.8 V 3.5V, I2C, SSO, 3-Pin
- RS Stock No.:
- 236-3682
- Mfr. Part No.:
- TLE4929CXHAM18NHAMA1
- Brand:
- Infineon
Subtotal (1 reel of 1500 units)*
£2,448.00
(exc. VAT)
£2,937.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.632 | £2,448.00 |
*price indicative
- RS Stock No.:
- 236-3682
- Mfr. Part No.:
- TLE4929CXHAM18NHAMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Hall Effect Sensor | |
| Sensor Type | Hall Effect | |
| Technology | Analogue | |
| Mount Type | Through Hole | |
| Interface Type | I2C | |
| Magnetic Type | Omnipolar | |
| Minimum Supply Voltage | 2.8V | |
| Maximum Supply Voltage | 3.5V | |
| Package Type | SSO | |
| Sensitivity | 7.7LSB/mT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Pin Count | 3 | |
| Height | 1.1mm | |
| Standards/Approvals | No | |
| Length | 2.9mm | |
| Series | TLE4929 | |
| Supply Current | 3.4mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Hall Effect Sensor | ||
Sensor Type Hall Effect | ||
Technology Analogue | ||
Mount Type Through Hole | ||
Interface Type I2C | ||
Magnetic Type Omnipolar | ||
Minimum Supply Voltage 2.8V | ||
Maximum Supply Voltage 3.5V | ||
Package Type SSO | ||
Sensitivity 7.7LSB/mT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Pin Count 3 | ||
Height 1.1mm | ||
Standards/Approvals No | ||
Length 2.9mm | ||
Series TLE4929 | ||
Supply Current 3.4mA | ||
Automotive Standard No | ||
The Infineon XENSIV hall based crankshaft sensor for hybrid powertrains and similar industrial applications, such as speedometer or any speed-sensor with high accuracy and low jitter capabilities.
Measures speed and position of tooth/pole wheels
Switching point in middle of the tooth enables backward compatibility
Magnetic stray-field robustness due to differential sensing principle
Direction detection and Stop-Start-Algorithm
Programmable switching threshold for additional accuracy
