STMicroelectronics 3 Axis Surface Inertial Sensor 3.6 V 1.71V, I2C/SPI, LGA-14L, 14-Pin
- RS Stock No.:
- 261-5581
- Mfr. Part No.:
- LSM6DSVTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 5000 units)*
£14,030.00
(exc. VAT)
£16,835.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £2.806 | £14,030.00 |
*price indicative
- RS Stock No.:
- 261-5581
- Mfr. Part No.:
- LSM6DSVTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Inertial Sensor | |
| Sensor Type | Gyroscope, Accelerometer | |
| Number of Axis | 3 | |
| Technology | CMOS | |
| Mount Type | Surface | |
| Interface Type | I2C/SPI | |
| Magnetic Type | Latch | |
| Minimum Supply Voltage | 3.6V | |
| Maximum Supply Voltage | 1.71V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 14 | |
| Standards/Approvals | RoHS | |
| Series | LSM6DSV | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Inertial Sensor | ||
Sensor Type Gyroscope, Accelerometer | ||
Number of Axis 3 | ||
Technology CMOS | ||
Mount Type Surface | ||
Interface Type I2C/SPI | ||
Magnetic Type Latch | ||
Minimum Supply Voltage 3.6V | ||
Maximum Supply Voltage 1.71V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 14 | ||
Standards/Approvals RoHS | ||
Series LSM6DSV | ||
Automotive Standard No | ||

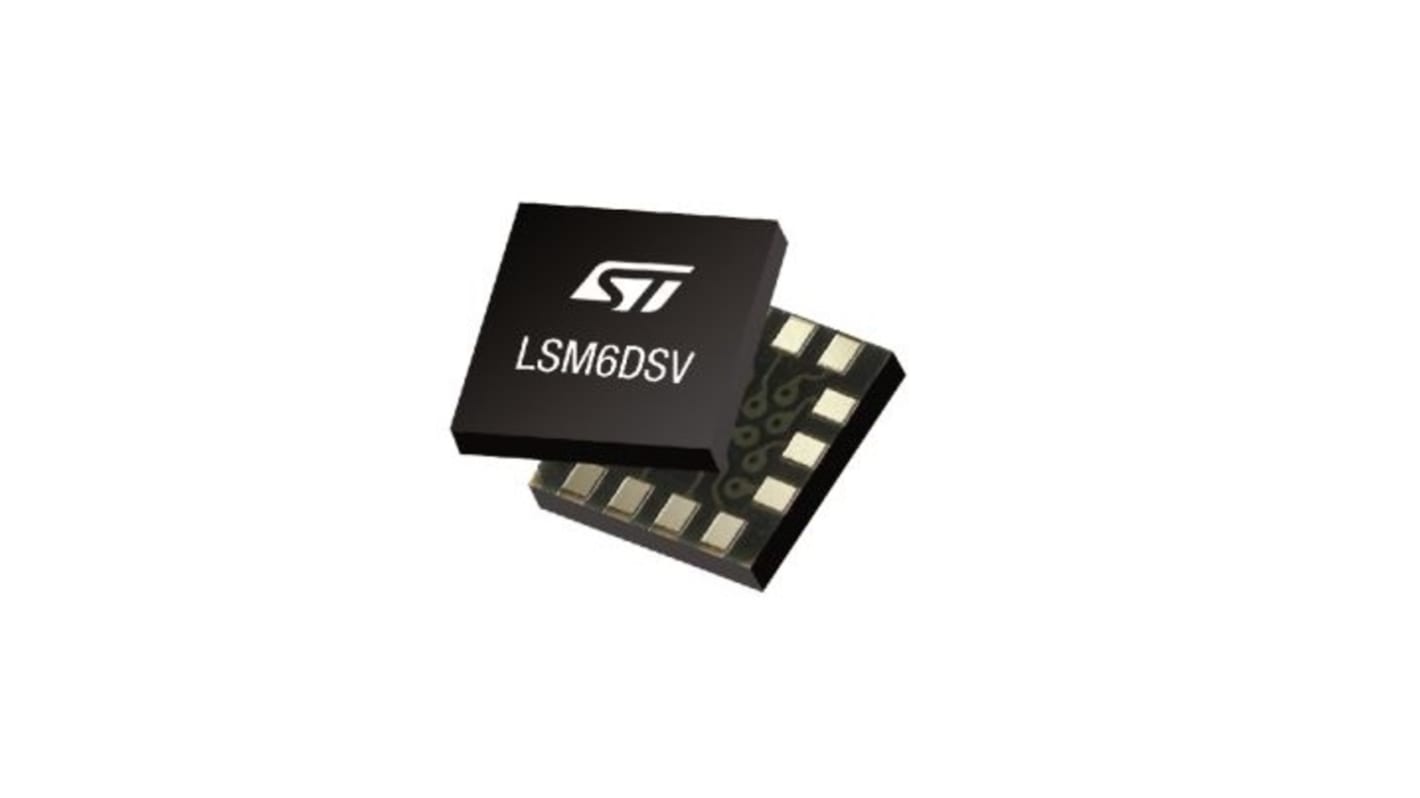

The STMicroelectronics iNEMO inertial module is a system in package featuring a 3-axis digital accelerometer and a 3-axis digital gyroscope with a triple core for processing acceleration and angular rate data on three separate channels with dedicated configuration, processing, and filtering.
Triple core for UI, EIS, and OIS data processing
Advanced pedometer, step detector and step counter
Significant motion detection, tilt detection
Embedded temperature sensor
