Xsens 9 Axis Surface Motion Sensor Module 2.8 V 3.6V, I2C/SPI
- RS Stock No.:
- 261-4473
- Mfr. Part No.:
- MTi-3-5A-T
- Brand:
- Xsens
Bulk discount available
Subtotal (1 tray of 20 units)*
£7,426.54
(exc. VAT)
£8,911.84
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 20 - 20 | £371.327 | £7,426.54 |
| 40 + | £349.048 | £6,980.96 |
*price indicative
- RS Stock No.:
- 261-4473
- Mfr. Part No.:
- MTi-3-5A-T
- Brand:
- Xsens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Xsens | |
| Product Type | Motion Sensor Module | |
| Sensor Type | Magnetometer, Accelerometer, Gyroscope | |
| Number of Axis | 9 | |
| Technology | Motion Tracking Module | |
| Mount Type | Surface | |
| Interface Type | I2C/SPI | |
| Maximum Frequency Response | 1kHz | |
| Minimum Supply Voltage | 2.8V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 12.1mm | |
| Standards/Approvals | RoHS, CE, FCC | |
| Height | 2.55mm | |
| Length | 12.1mm | |
| Series | MTi-3 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Xsens | ||
Product Type Motion Sensor Module | ||
Sensor Type Magnetometer, Accelerometer, Gyroscope | ||
Number of Axis 9 | ||
Technology Motion Tracking Module | ||
Mount Type Surface | ||
Interface Type I2C/SPI | ||
Maximum Frequency Response 1kHz | ||
Minimum Supply Voltage 2.8V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 12.1mm | ||
Standards/Approvals RoHS, CE, FCC | ||
Height 2.55mm | ||
Length 12.1mm | ||
Series MTi-3 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- NL

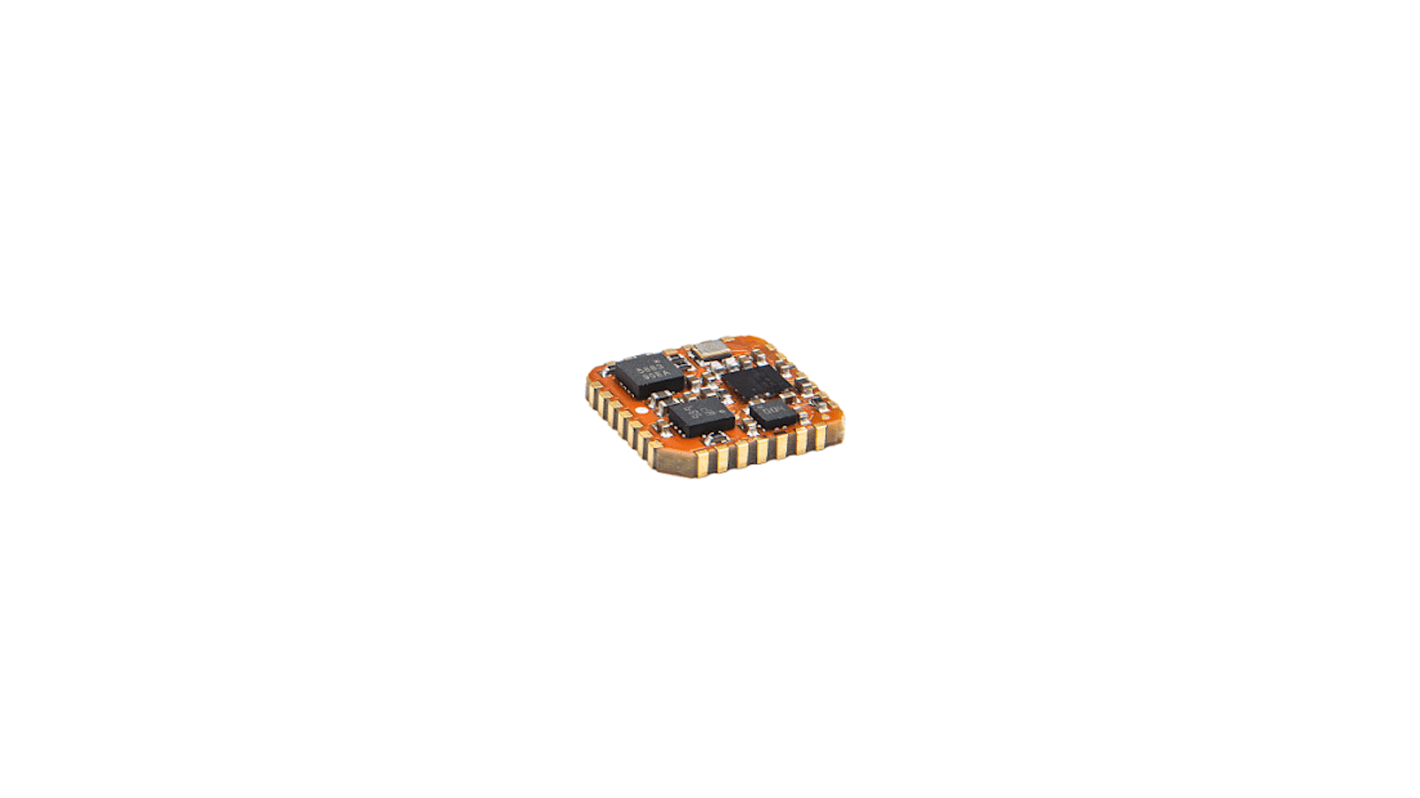

The XSENS is a self-contained inertial measurement unit as a 12.1 x 12.1 mm module. The Xsens optimized strap down algorithm performs high-speed dead-reckoning calculations at 1 kHz allowing accurate capture of high frequency motions.
Easy integration
Development kit available
Miniature form factor
