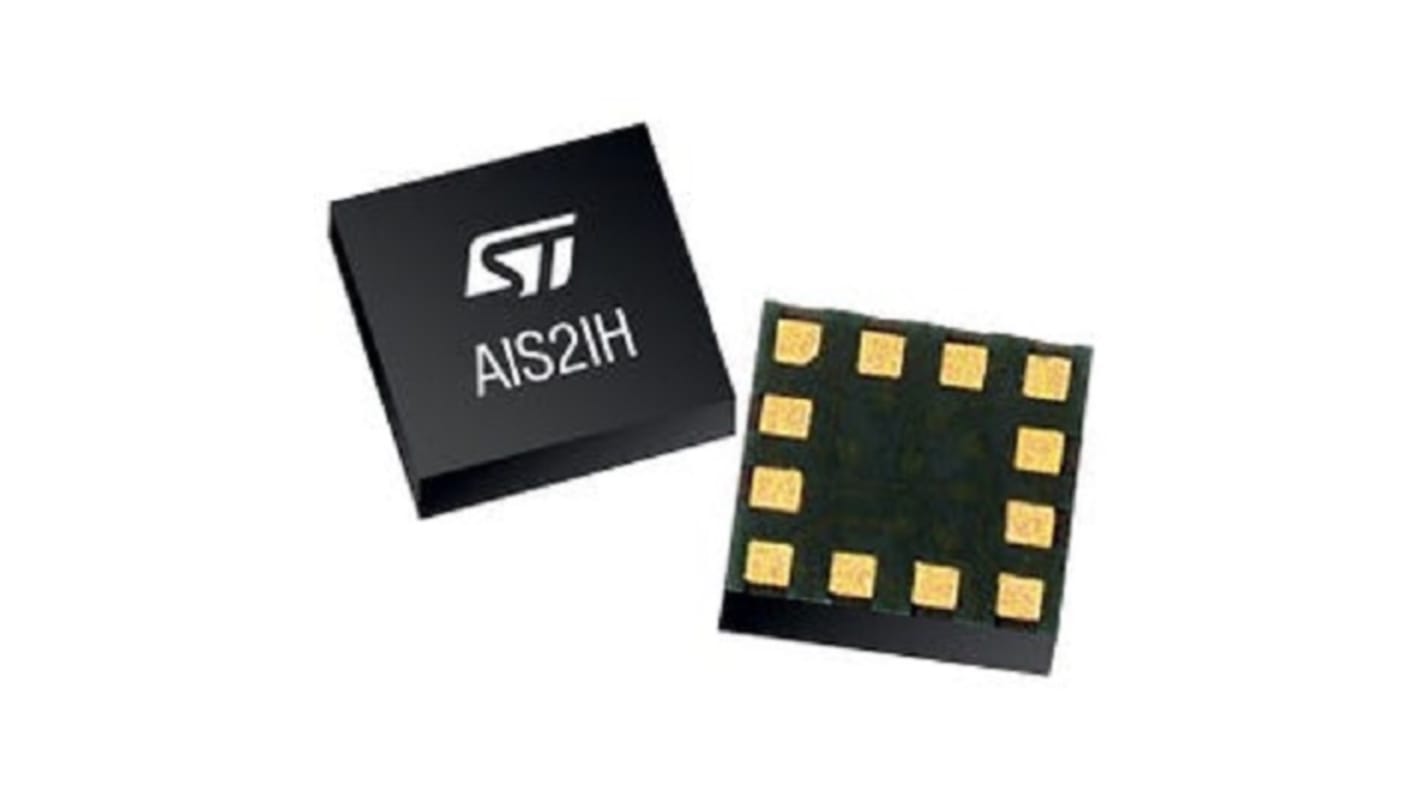

STMicroelectronics 3 Axis Surface Accelerometer 1.62 V 3.6V, I2C/SPI, LGA12, 12-Pin
- RS Stock No.:
- 216-7841
- Mfr. Part No.:
- AIS2IHTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 8000 units)*
£15,464.00
(exc. VAT)
£18,560.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 8000 + | £1.933 | £15,464.00 |
*price indicative
- RS Stock No.:
- 216-7841
- Mfr. Part No.:
- AIS2IHTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Accelerometer | |
| Sensor Type | Accelerometer | |
| Number of Axis | 3 | |
| Technology | Digital | |
| Mount Type | Surface | |
| Interface Type | I2C/SPI | |
| Minimum Supply Voltage | 1.62V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA12 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 12 | |
| Standards/Approvals | RoHS | |
| Length | 2mm | |
| Series | AIS2IH | |
| Height | 0.93mm | |
| Supply Current | 180μA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Accelerometer | ||
Sensor Type Accelerometer | ||
Number of Axis 3 | ||
Technology Digital | ||
Mount Type Surface | ||
Interface Type I2C/SPI | ||
Minimum Supply Voltage 1.62V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA12 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 12 | ||
Standards/Approvals RoHS | ||
Length 2mm | ||
Series AIS2IH | ||
Height 0.93mm | ||
Supply Current 180μA | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics AIS2IHTR is an ultra-low-power three-axis linear accelerometer which leverages on the robust and mature manufacturing processes already used for the production of micro machined accelerometers and designed to address non-safety automotive applications.
32-level FIFO
2 independent programmable interrupts
Extended temperature range
Independent IO supply
Embedded temperature sensor
