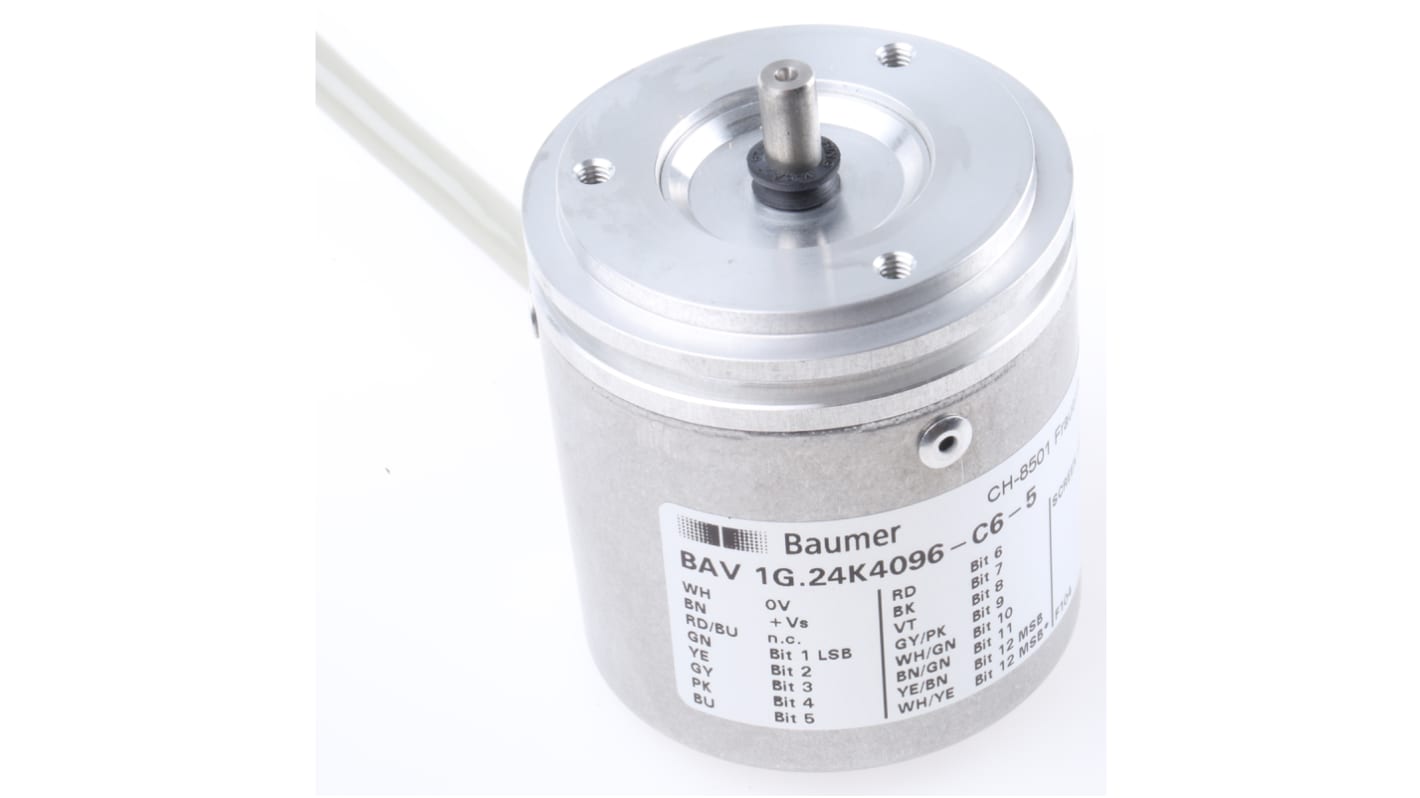

Baumer BAV 1G.24K Series Absolute Absolute Encoder, 4096 ppr, Push Pull Signal
- RS Stock No.:
- 499-7548
- Mfr. Part No.:
- BAV 1G.24K.4096-C6-5
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£810.00
(exc. VAT)
£972.00
(inc. VAT)
- RS Stock No.:
- 499-7548
- Mfr. Part No.:
- BAV 1G.24K.4096-C6-5
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Encoder Technology | Absolute | |
| Pulses Per Revolution | 4096 | |
| Series | BAV 1G.24K | |
| Maximum Revolutions | 12000rpm | |
| Output Signal Type | Push Pull | |
| Supply Voltage | 10 → 30 V dc | |
| Resolution | 12 bit | |
| Steps Per Revolution | 360Steps | |
| IP Rating | IP64 | |
| Overall Height | 72.5mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +65°C | |
| Switching Frequency | 50 kHz | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Encoder Technology Absolute | ||
Pulses Per Revolution 4096 | ||
Series BAV 1G.24K | ||
Maximum Revolutions 12000rpm | ||
Output Signal Type Push Pull | ||
Supply Voltage 10 → 30 V dc | ||
Resolution 12 bit | ||
Steps Per Revolution 360Steps | ||
IP Rating IP64 | ||
Overall Height 72.5mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +65°C | ||
Switching Frequency 50 kHz | ||
- COO (Country of Origin):
- CH
