Baumer BMSV Series Optical Absolute Encoder, Push Pull Signal, Solid Type, 6mm Shaft
- RS Stock No.:
- 144-6454
- Mfr. Part No.:
- BMSV 58S1G24K12/00C65
- Brand:
- Baumer
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 144-6454
- Mfr. Part No.:
- BMSV 58S1G24K12/00C65
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Encoder Technology | Optical | |
| Series | BMSV | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | Push Pull | |
| Shaft Type | Solid | |
| Supply Voltage | 10 → 30 V dc | |
| Shaft Diameter | 6mm | |
| Resolution | ST 12 bit | |
| IP Rating | IP65 | |
| Interface | Parallel-Gray | |
| Overall Width | 58mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Synchro Flange | |
| Connection Type | Cable output 2 m | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Encoder Technology Optical | ||
Series BMSV | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type Push Pull | ||
Shaft Type Solid | ||
Supply Voltage 10 → 30 V dc | ||
Shaft Diameter 6mm | ||
Resolution ST 12 bit | ||
IP Rating IP65 | ||
Interface Parallel-Gray | ||
Overall Width 58mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Synchro Flange | ||
Connection Type Cable output 2 m | ||
- COO (Country of Origin):
- CH

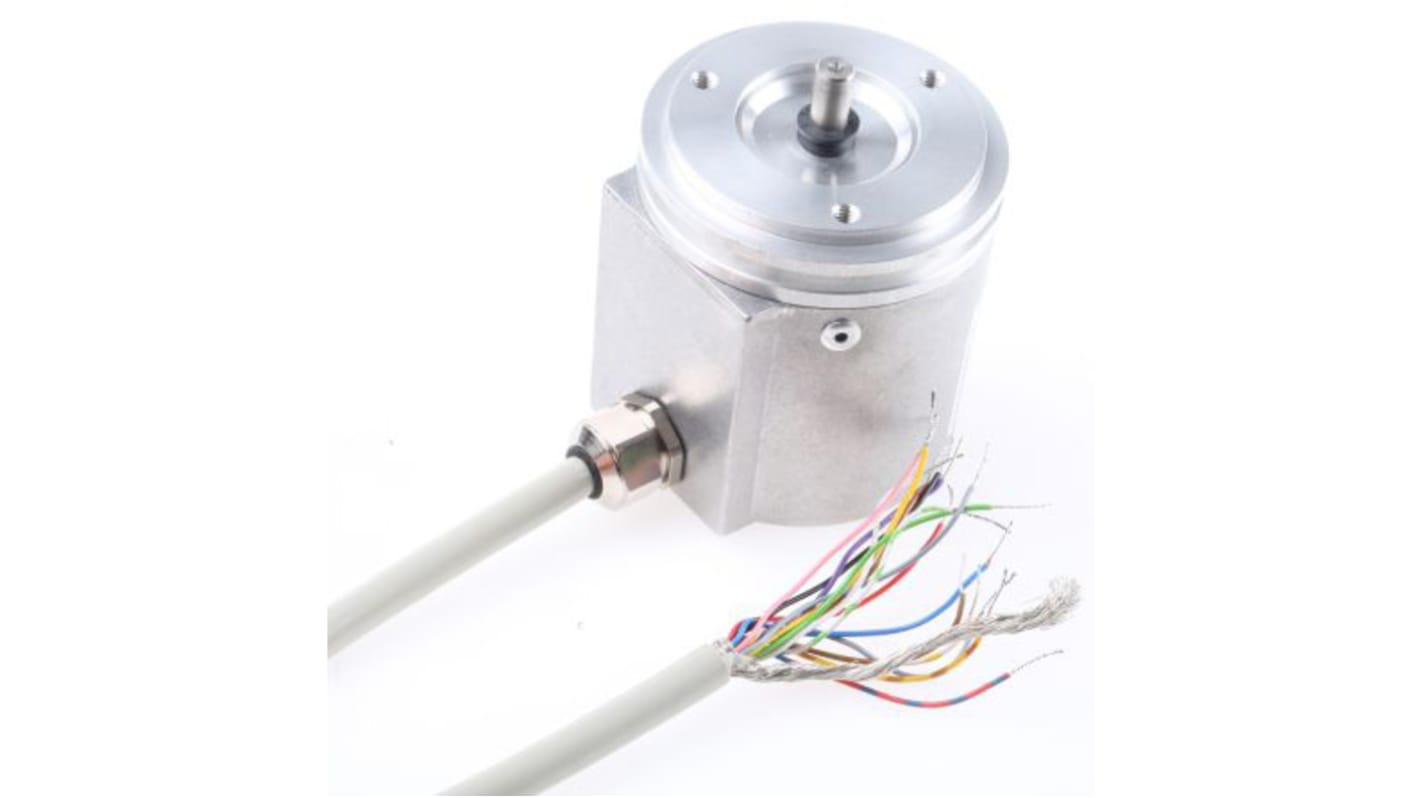

BMSV 58S Synchro Flange Absolute Encoders
Baumer BMSV 58S synchro flange absolute encoders series are robust and reliable even when exposed to heavy shock and vibration loads.
Features and Benefits
Short circuit-proof
2 m cable
Aluminium housing and flange
Magnetic sensing
Resolution: 12 bit
High resistance to shock and vibrations
Reset input
Synchro flange
