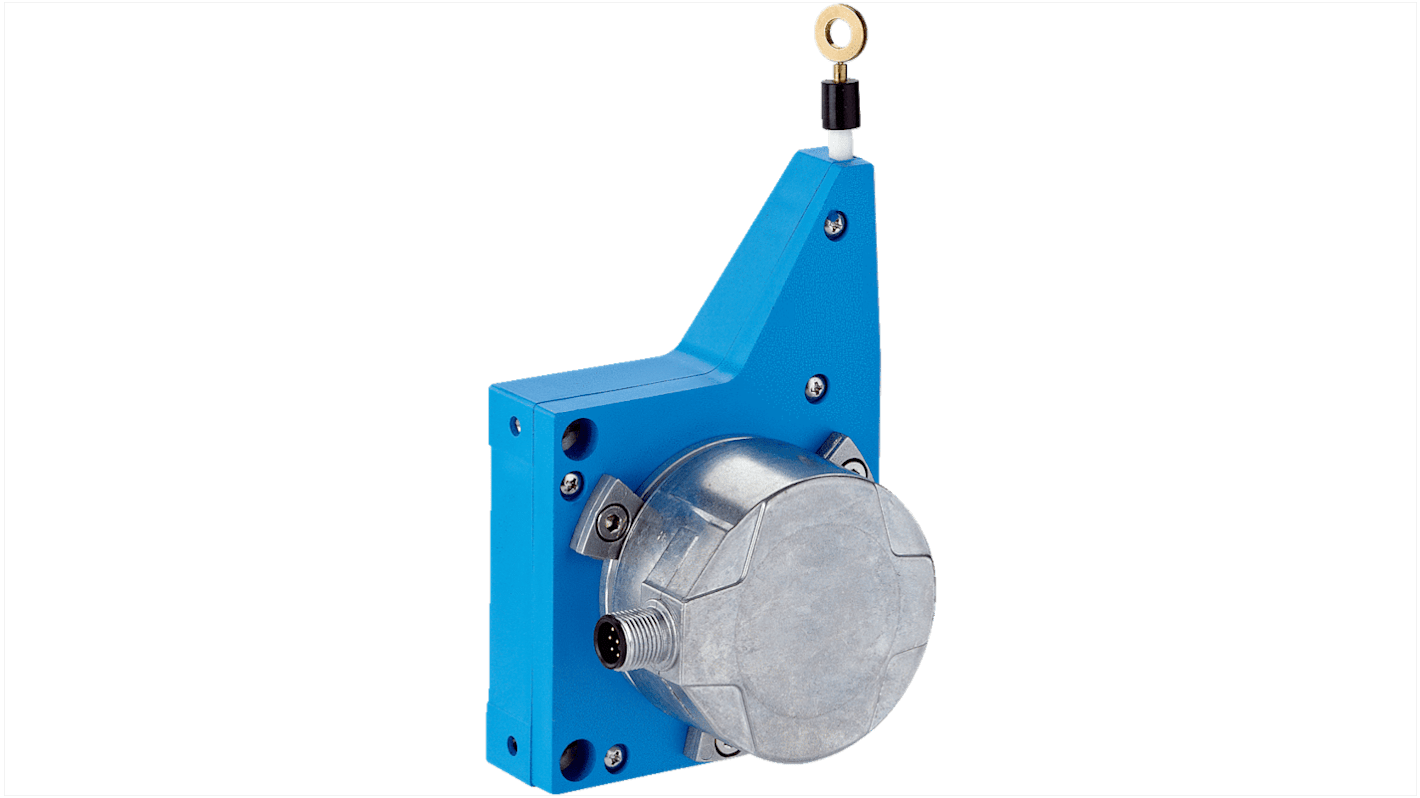

SICK BCG08 Series Absolute Draw Wire Encoder 32V dc, SSI Signal, 6 mm Shaft

RS Stock No.:: 286-9995
Mfr. Part No.:: BCG08-A1CM0318 / 1054129
Brand:: SICK

Subtotal (1 unit)*

£783.48

(exc. VAT)

£940.18

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 25 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£783.48

*price indicative

RS Stock No.:: 286-9995
Mfr. Part No.:: BCG08-A1CM0318 / 1054129
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Draw Wire Encoder
	Encoder Technology	Absolute
	Series	BCG08
	Output Signal Type	SSI
	Stroke	3000 mm
	Shaft Diameter	6mm
	Interface Type	SSI
	IP Rating	IP50, IP67
	Terminal Type	Screw
	Maximum Supply Voltage	32V dc
	Minimum Operating Temperature	0°C
	Overall Depth	61mm
	Overall Height	80mm
	Overall Width	80mm
	Standards/Approvals	UK declaration of conformity, ACMA declaration of conformity, CE, CHINA-RoHS, cULus certificate, EU declaration of conformity, MAR Declaration of Conformity
	Maximum Operating Temperature	70°C
	Mount Type	Flange

	Select all
	Brand SICK
	Product Type Draw Wire Encoder
	Encoder Technology Absolute
	Series BCG08
	Output Signal Type SSI
	Stroke 3000 mm
	Shaft Diameter 6mm
	Interface Type SSI
	IP Rating IP50, IP67
	Terminal Type Screw
	Maximum Supply Voltage 32V dc
	Minimum Operating Temperature 0°C
	Overall Depth 61mm
	Overall Height 80mm
	Overall Width 80mm
	Standards/Approvals UK declaration of conformity, ACMA declaration of conformity, CE, CHINA-RoHS, cULus certificate, EU declaration of conformity, MAR Declaration of Conformity
	Maximum Operating Temperature 70°C
	Mount Type Flange

Datasheet - BCG08-A1CM0318

COO (Country of Origin):: DE

Overview

The slim design of the EcoLine family is ideal for applications with limited space. Its modularity makes it suitable for a large selection of measuring lengths, interfaces and encoders. Due to the into the drum integrated spring as well as the adaption without coupling, it is possible to achieve high precision and stability.

The special nozzle serves to protect the measuring wire from damage caused by vibration. The intuitive teach-in function provided in analogue options also enables easy system integration.

At a glance

Measuring lengths: 1.25 m ... 10 m

Modular measuring system with a wide selection of interfaces/measuring lengths

Very small, slim housing (55 mm ... 190 mm) with spring integrated in the measurement drum

Light yet shock-proof and temperature-resistant plastic housing

Analog interface with teach-in function on encoder

Your Benefit

Space and cost saving design thanks to slimline mechanics

Numerous possible combinations of interfaces and measuring lengths

Advanced programming options lead to a reduction in the amount of variants, save costs, and reduce storage

Analog interface speeds up commissioning and cost effective interface card can be used

Applications

Fields of applications

Measuring height and tilt of automated guided systems

Height measurement in small warehouse systems

Applications in medical technology (operating tables, MRT)

Height measurement of scissors lifting platforms

Height measurement of ov
