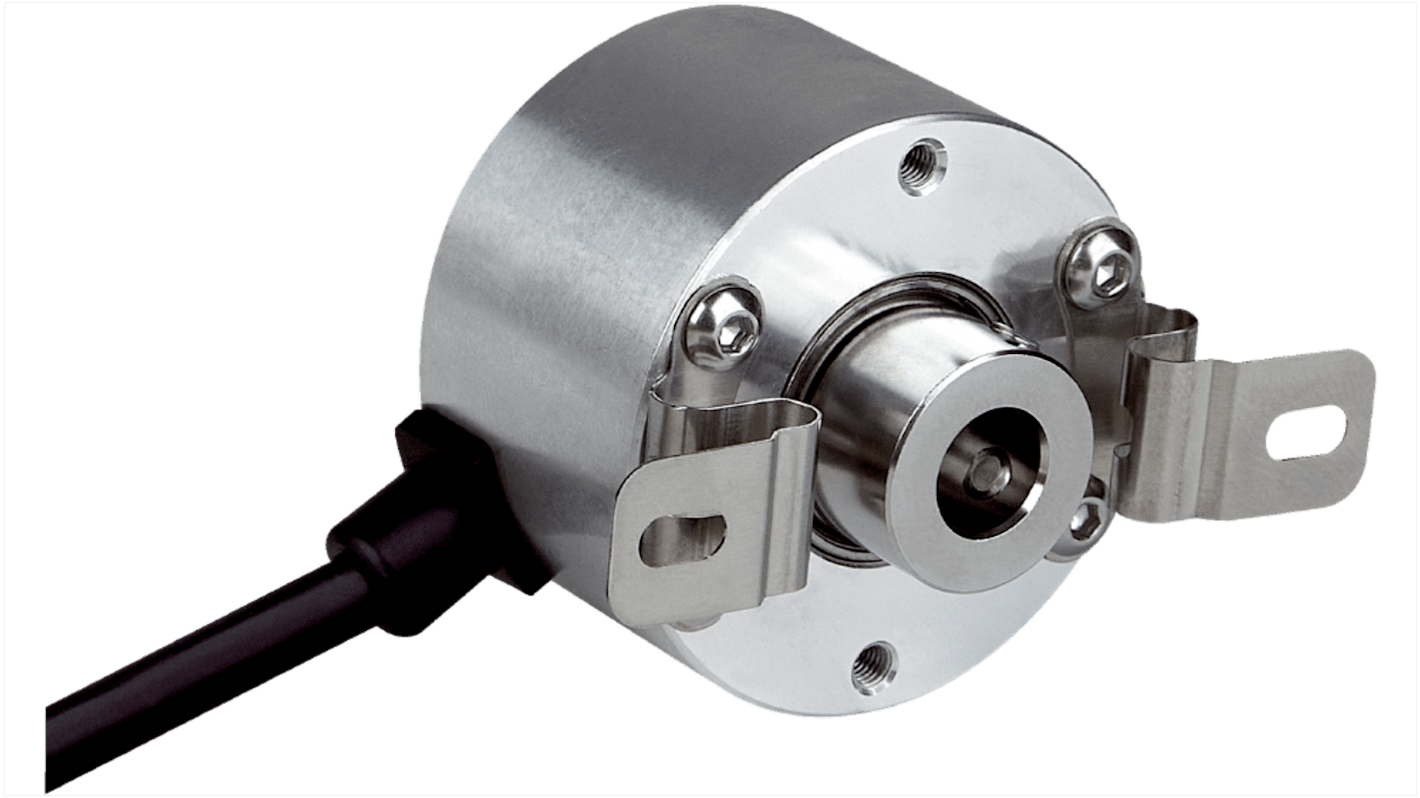

SICK DLS40E Series Incremental Incremental Encoder 4.5V, 100 ppr ppr, Analogue Signal, Hollow Shaft Type, 10 mm Shaft
- RS Stock No.:
- 285-9412
- Mfr. Part No.:
- DLS40E-BDAV00100 / 1132517
- Brand:
- SICK
Subtotal (1 unit)*
£85.99
(exc. VAT)
£103.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.99 |
*price indicative
- RS Stock No.:
- 285-9412
- Mfr. Part No.:
- DLS40E-BDAV00100 / 1132517
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Incremental Encoder | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 100ppr | |
| Series | DLS40E | |
| Output Signal Type | Analogue | |
| Shaft Type | Hollow Shaft | |
| Shaft Diameter | 10mm | |
| Interface Type | Incremental | |
| Terminal Type | Cable | |
| Maximum Supply Voltage | 4.5V | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | EU declaration of conformity, CE, ACMA declaration of conformity, UK declaration of conformity, CHINA-RoHS | |
| Maximum Operating Temperature | 70°C | |
| Switching Frequency | 2000Hz | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Incremental Encoder | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 100ppr | ||
Series DLS40E | ||
Output Signal Type Analogue | ||
Shaft Type Hollow Shaft | ||
Shaft Diameter 10mm | ||
Interface Type Incremental | ||
Terminal Type Cable | ||
Maximum Supply Voltage 4.5V | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals EU declaration of conformity, CE, ACMA declaration of conformity, UK declaration of conformity, CHINA-RoHS | ||
Maximum Operating Temperature 70°C | ||
Switching Frequency 2000Hz | ||
Overview
The DLS40 incremental encoder is a reliable solution for measuring rotation speed and position. With various unique features, it is fundamentally redefining the operating principle of encoders. The housing integrated in the flange enables a low-cost, slim
In addition, the encoder is equipped with an easily-accessible laser-marked QR code which enables direct access to the operating instructions.
At a glance
Pulses per revolution: Up to 1,024
Housing diameter: 40 mm
Solid shaft and blind hollow shaft
Enclosure rating: IP50 (Solid shaft)
Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
Connection type: cable
Slim, compact design
Your Benefit
The compact design facilitates the integration of the encoder even where installation space is limited and helps reduce machine size
The flange with integrated housing enables a very compact and cost-efficient design
A wide variety of output signal option
Applications
A large range of applications for the measurement of speed and position, e.g. in
Printing and packaging
Paper processing
Processing, forming and cutting of metal, wood and glass
Automated guided vehicle systems (AGV systems)
Manufacture and filling of bo
