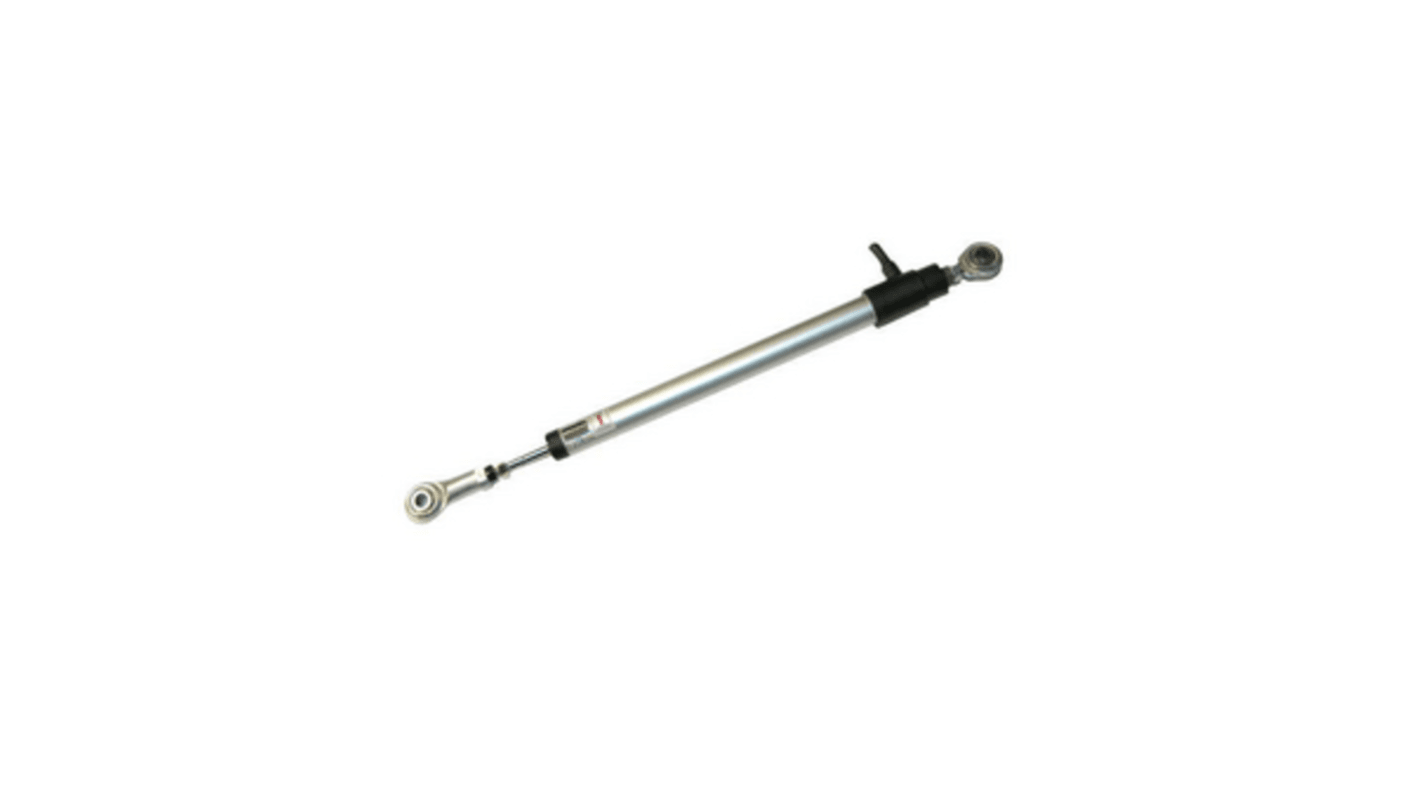

Variohm Group PZ12 Series Linear Measuring Position Sensor 60V
- RS Stock No.:
- 285-8677
- Distrelec Article No.:
- 110-89-735
- Mfr. Part No.:
- PZ12A-150-P
- Brand:
- Variohm Group
Subtotal (1 unit)*
£218.52
(exc. VAT)
£262.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £218.52 |
*price indicative
- RS Stock No.:
- 285-8677
- Distrelec Article No.:
- 110-89-735
- Mfr. Part No.:
- PZ12A-150-P
- Brand:
- Variohm Group
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Variohm Group | |
| Encoder Technology | Linear Measuring | |
| Product Type | Position Sensor | |
| Series | PZ12 | |
| Stroke | 150 mm | |
| IP Rating | IP65 | |
| Terminal Type | Cable Terminal | |
| Maximum Supply Voltage | 60V | |
| Minimum Operating Temperature | -30°C | |
| Overall Depth | 60mm | |
| Overall Width | 31mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 330mm | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand Variohm Group | ||
Encoder Technology Linear Measuring | ||
Product Type Position Sensor | ||
Series PZ12 | ||
Stroke 150 mm | ||
IP Rating IP65 | ||
Terminal Type Cable Terminal | ||
Maximum Supply Voltage 60V | ||
Minimum Operating Temperature -30°C | ||
Overall Depth 60mm | ||
Overall Width 31mm | ||
Standards/Approvals RoHS | ||
Overall Height 330mm | ||
Maximum Operating Temperature 100°C | ||
The Displacement Transducer is available in 7 stroke lengths for direct absolute measurement from 10 mm to 150 mm. This design is particularly suitable for installation in areas with limited space. An improved technique for making the Connection to the resistance track ensures a high degree of reliability and linearity, while MultiFinger grinders ensure good output signal stability even under the most adverse working conditions.
Miniature design for confined spaces
Anodized aluminium housing
Very long service life
Excellent linearity
High resolution
Excellent repeatability
Protection class IP65 as standard
